產業用通信元件 對應IO-Link的元件
3色顯示式數字式流量開關 PFMC7□（-L）
-
?干燥空氣, N2。

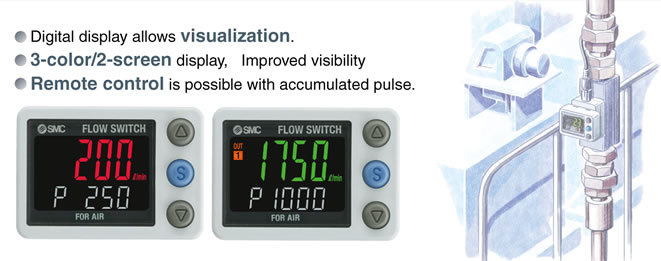

?3色顯示 2畫面。
?流量范圍擴大：1個開關可檢測大范圍的流量。

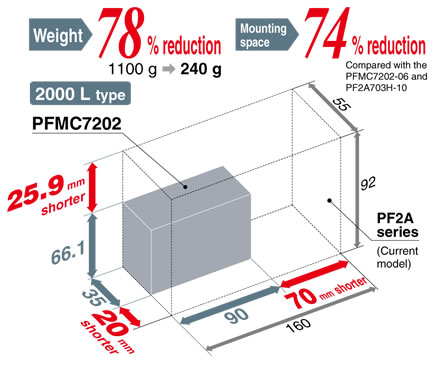

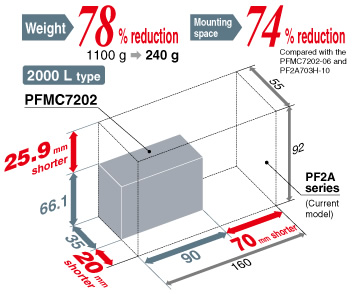

?體積小、省空間。
?對應IO-Link
流量開關擴展品 特定開發品信息 環保認證(RoHS)
| 系列 | 額定流量范圍(L/min) |
|---|---|
| PFMC | 5～500 10～1000 20～2000 |
產品特點

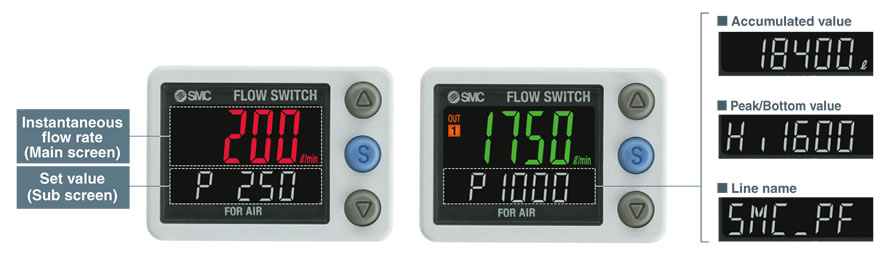

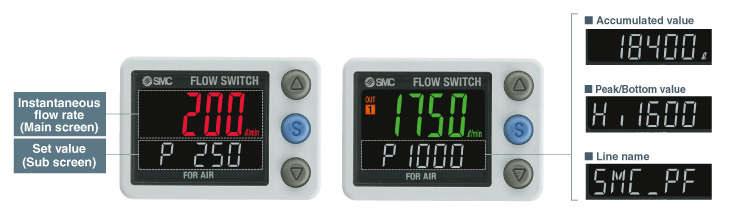

* 2-row display of main screen and sub screen

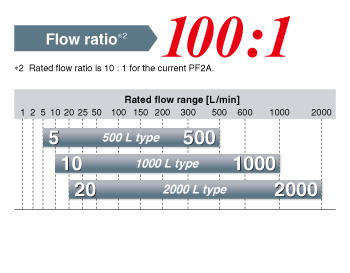

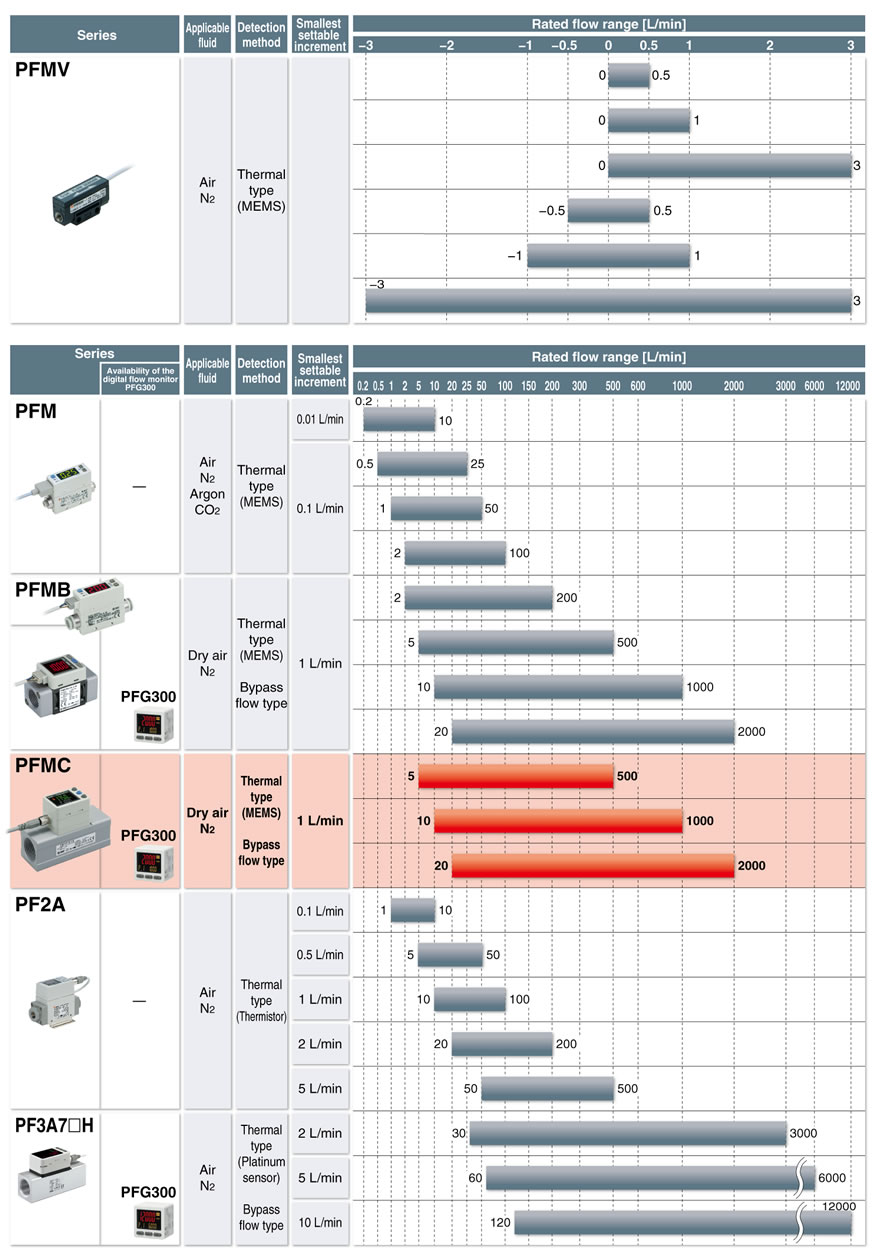

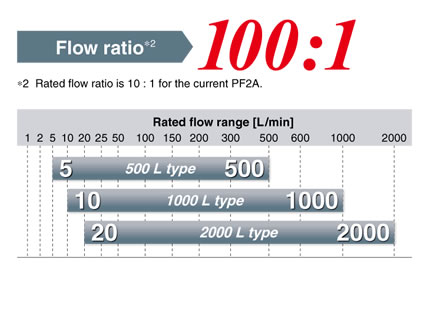

Wide range of flow measurement with one product

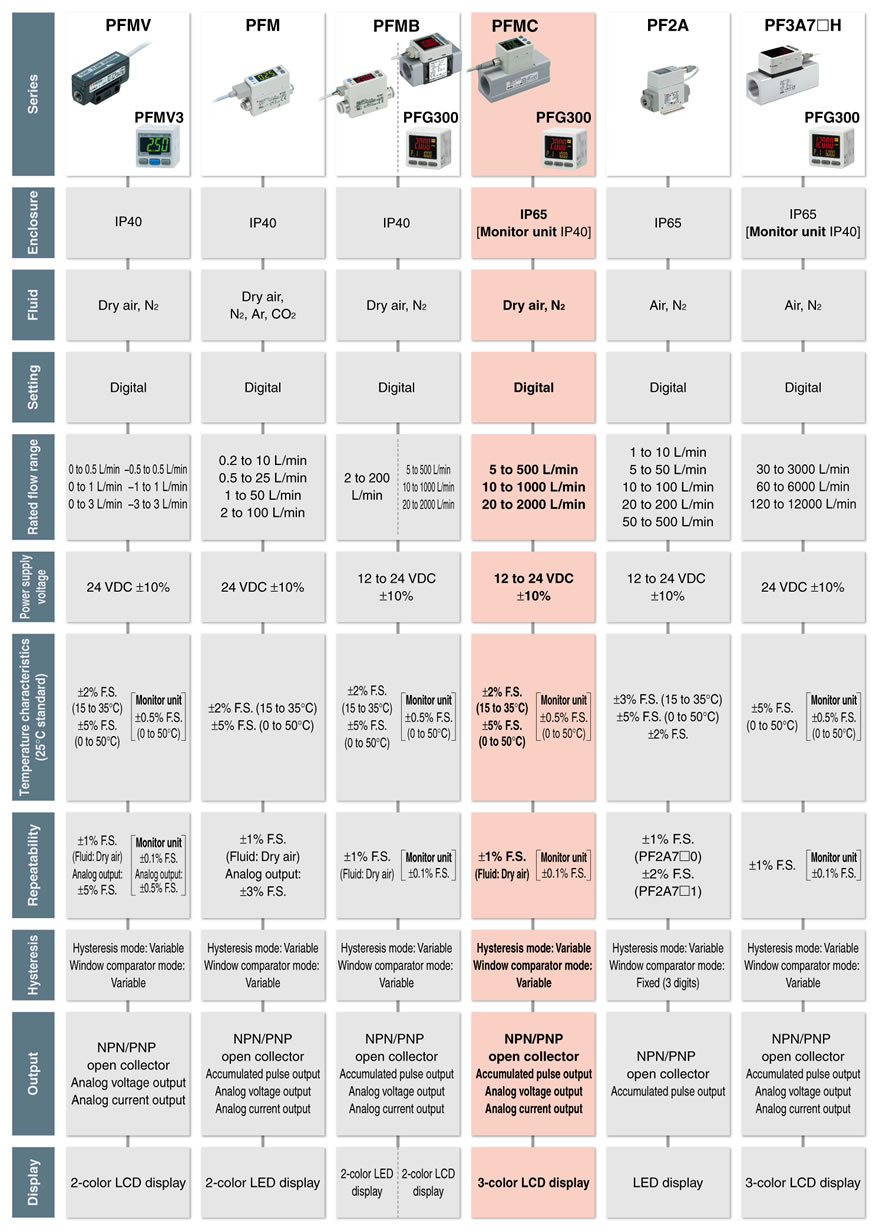

Compared with the current PF2A

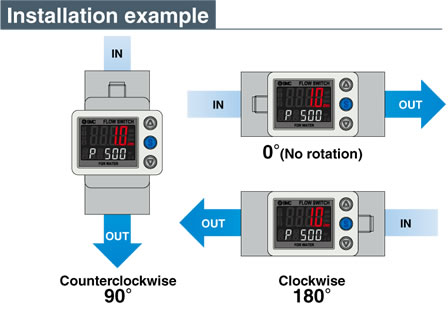

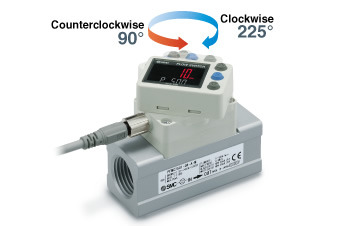

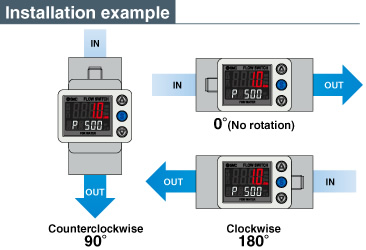

Display can be rotated in increments of 45° to suit the installation conditions.

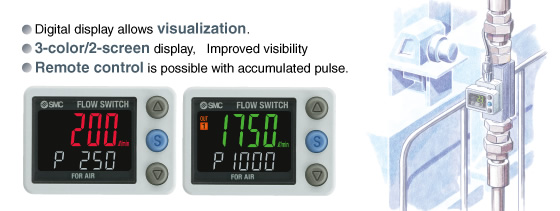

Easy operation, improved visibility.

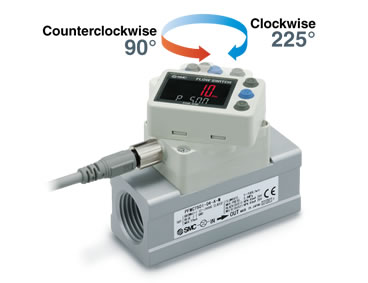

Counterclockwise 90° Clockwise 225°
Can be selected from 50 ms (0.05 s)/0.1 s/
0.5 s/1.0 s/2.0 s
Response time can be set depending on
application.
- Output operation
- Display color
- Reference condition
- Display mode
- Response time
- External input function
- Forced output function
- Accumulated value hold
- Selection of display on sub screen
- Display OFF mode
- Setting of security code
- Peak/Bottom value display
- Keylock function
- Analog output free range function
- Error display function

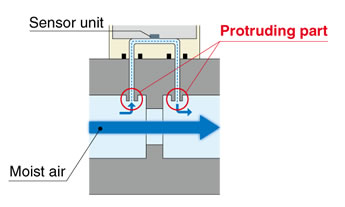

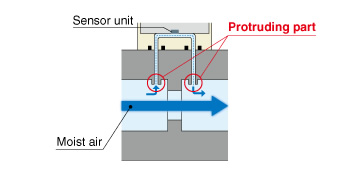

Bypass structure with protruding part at the main piping, reduces the contact of moist air with the sensor, reducing degradation of the sensor and maintaining accuracy.
Monitor NEW

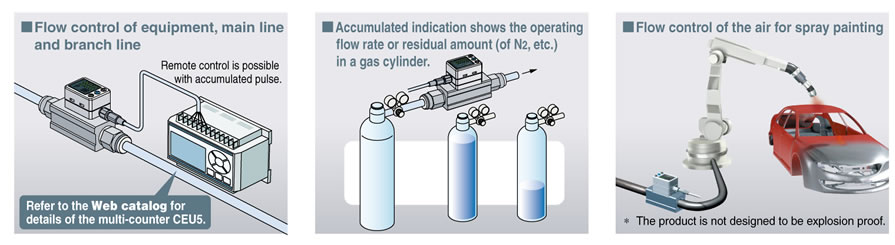

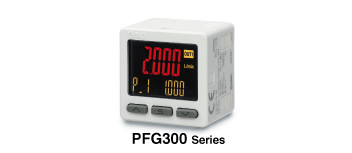

Allows for the monitoring of remote lines

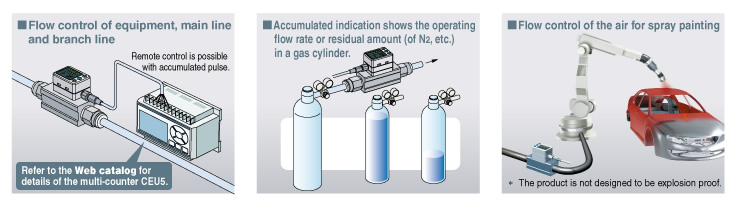

Flow control is necessary for promoting energy saving in any application.
Saving energy starts from numerical control of the flow consumption of equipment and lines and clarification of the purpose and effect.
