ISO Cylinders: ISO Standards (6432)

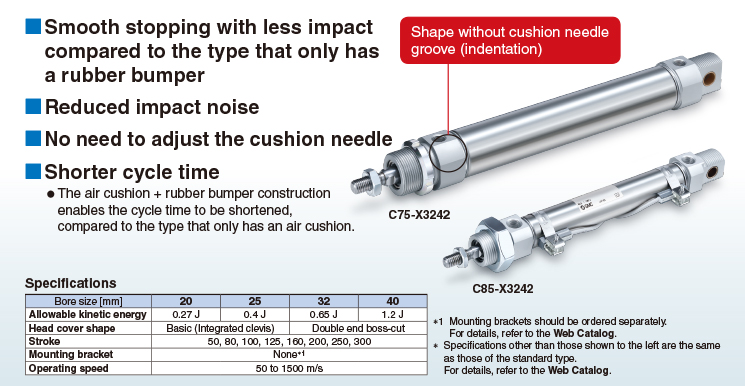

ISO Cylinder/Air Cylinder Non-adjustable Air Cushion Type
C85-X3242/C75-X3242
-
?Smooth stopping with less impact compared to the type that only has a rubber bumper
?Reduced impact noise
?No need to adjust the cushion needle
?Shorter cycle time
The air cushion + rubber bumper construction enables the cycle time to be shortened, compared to the type that only has an air cushion.
| Type | Series | Action | Bore size (mm) |
|---|---|---|---|
| ISO cylinder/Standard | C85-X3242 | Double acting, Single rod | 20，25 |
| Air cylinder/Standard | C75-X3242 | Double acting, Single rod | 32，40 |
Features
Non-adjustable Air Cushion Type
