Fittings for Special Environments

Stainless Steel 316 One-touch Fittings KQG2

    ?Compact and lightweight
    ?Fluid temperature: ?5 to 150℃
    ?Materials: Metal parts stainless steel 316, seal parts special FKM
    ?Grease-free/Can be used with steam
    　Certified to meet current Food Sanitation Law standards
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
SeriesSizeApplicable tubing O.D.Connection thread
KQG2Metricφ3.2，φ4，φ6，φ8，φ10，
φ12，φ16		M5
R，Rc 1/8，1/4，3/8，1/2
KQG2Inchφ1/8''，φ5/32''，φ1/4''，φ5/16''，
φ3/8''，φ1/2''		UNF10-32
NPT1/8，1/4，3/8，1/2

Features

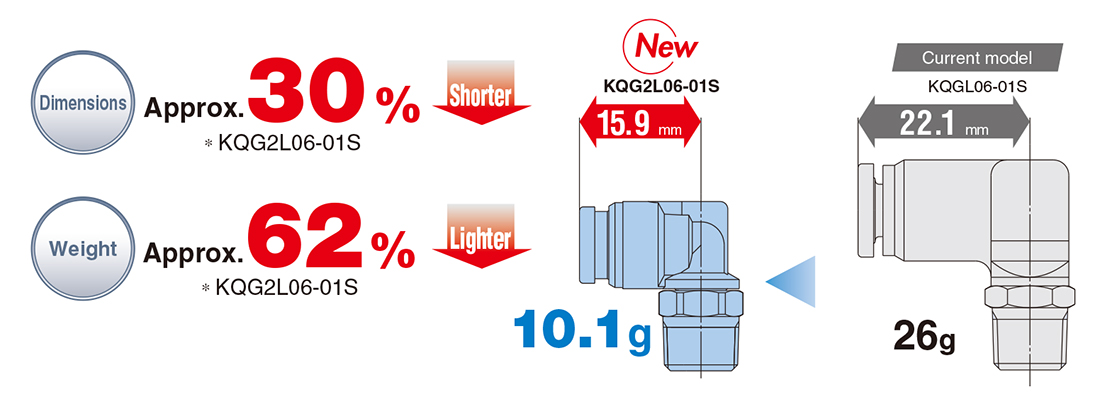

Compact and Lightweight

Dimensions: Approx. 30% shorter ? KQG2L06-01S
Weight: Approx. 62% lighter ? KQG2L06-01S



Available variations have been expanded. (17 models ← 9 models)
Tubing O.D.: ?3.2 and ?16 have been added.

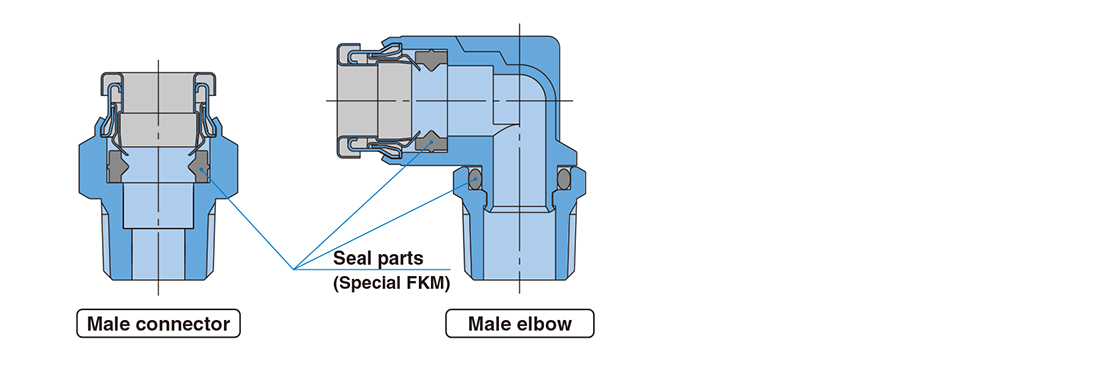

All stainless steel 316 except seal parts
Metal parts: Stainless steel 316　Seal parts: Special FKM



Fluid temperature: –5 to 150°C
Connection thread: M, R, Rc, UNF, NPTT
Applicable tubing material: FEP, PFA, Nylon, Soft nylon, Polyurethane, Polyolefin Grease-free/Can be used with steam.
Certified to meet current Japan Food Sanitation Law standards. (Component materials have met apparatuses and container-packages standards.)
