Auto Switches for Rotary Actuators and Air Grippers
IO-Link Compatible 2 in 1 Auto Switch D-MH2□
-

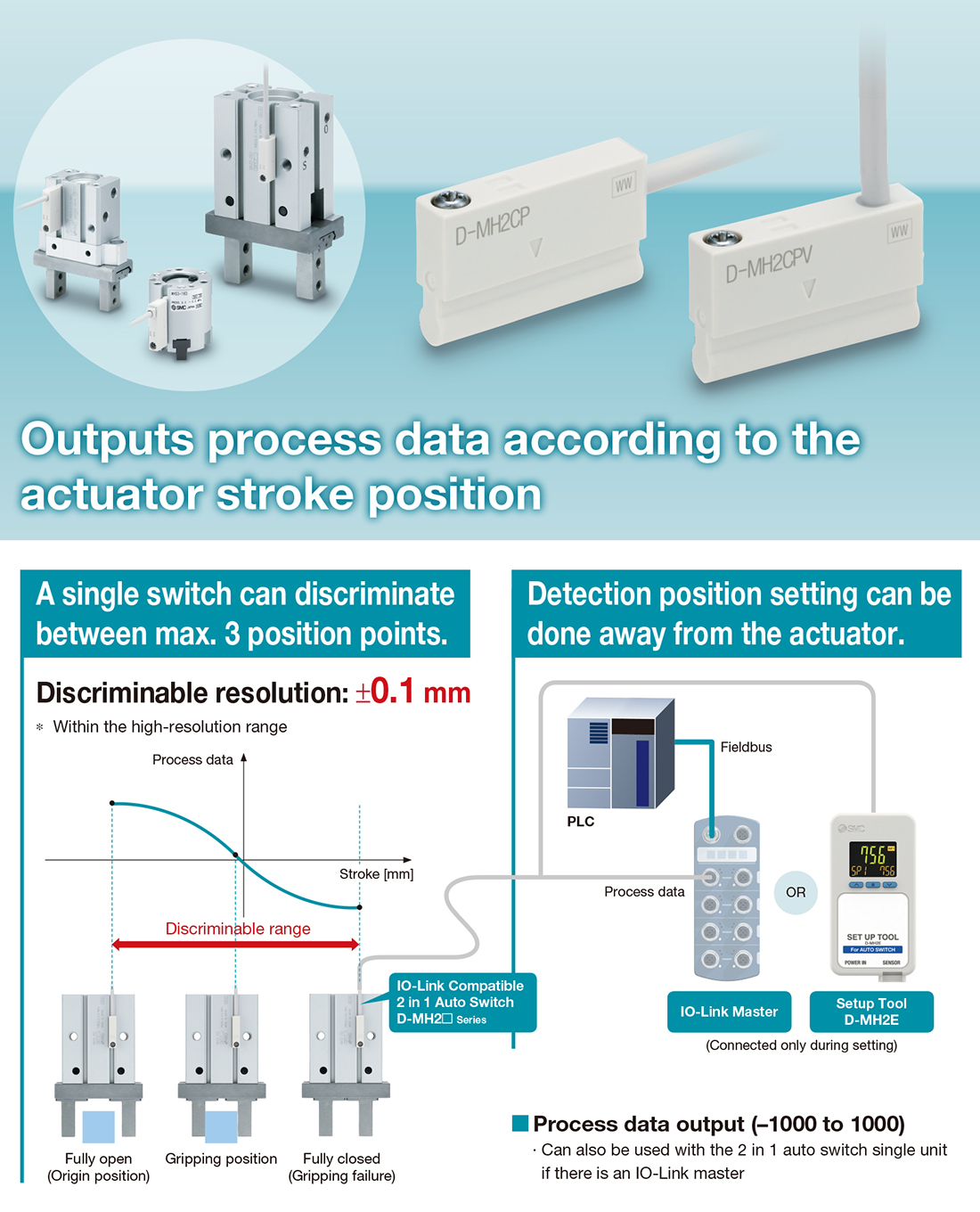

?Outputs process data according to the actuator stroke position
?A single switch can discriminate between max. 3 position points.
?Discriminable resolution: ±0.1 mm ? Within the high-resolution range
?Detection position setting can be done away from the actuator.
?Process data output (–1000 to 1000)
Can also be used with the 2 in 1 auto switch single unit if there is
an IO-Link master
-
2D/3D CAD
The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.
Click here for 2D/3D CAD IO-Link Compatible 2 in 1 Auto Switch D-MH2□
Manual
Series Type View search result D-MH2□ IO-Link compatible
2 in 1 auto switchView search result IO-Link Compatible 2 in 1 Auto Switch D-MH2□
DoC
Series Type View search result D-MH2□ IO-Link compatible
2 in 1 auto switchView search result
| Series | Type | Number of set points | Output type |
|---|---|---|---|
| D-MH2□ | IO-Link compatible 2 in 1 auto switch | 2 points 3 points | NPN output PNP output |
Features
Outputs process data according to the actuator stroke position
Detection position setting can be done away from the actuator.

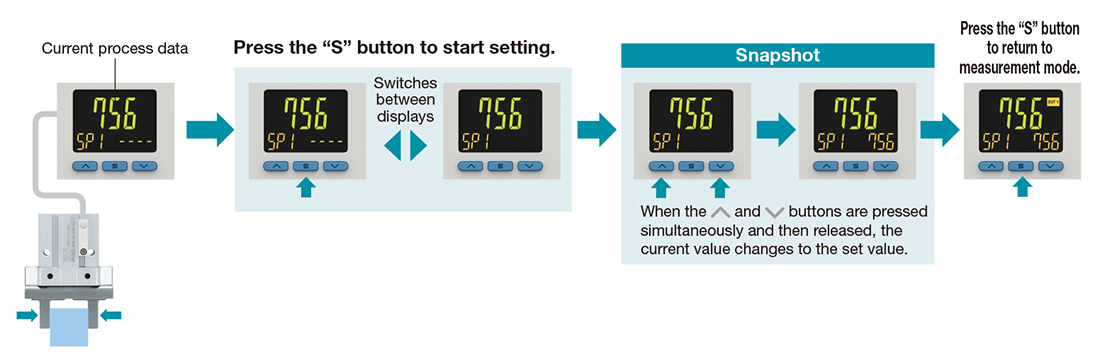

Snapshot function for easy switch output setting

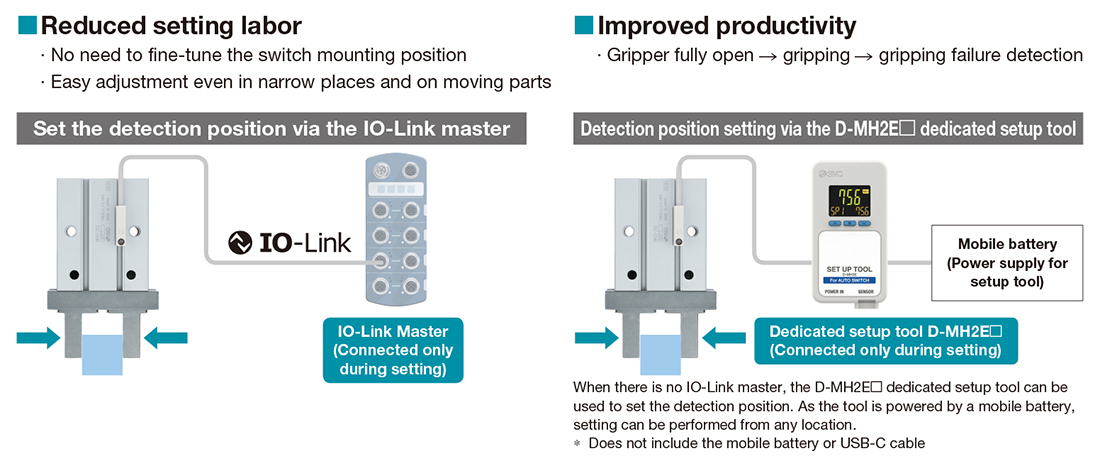

Reduced setting labor

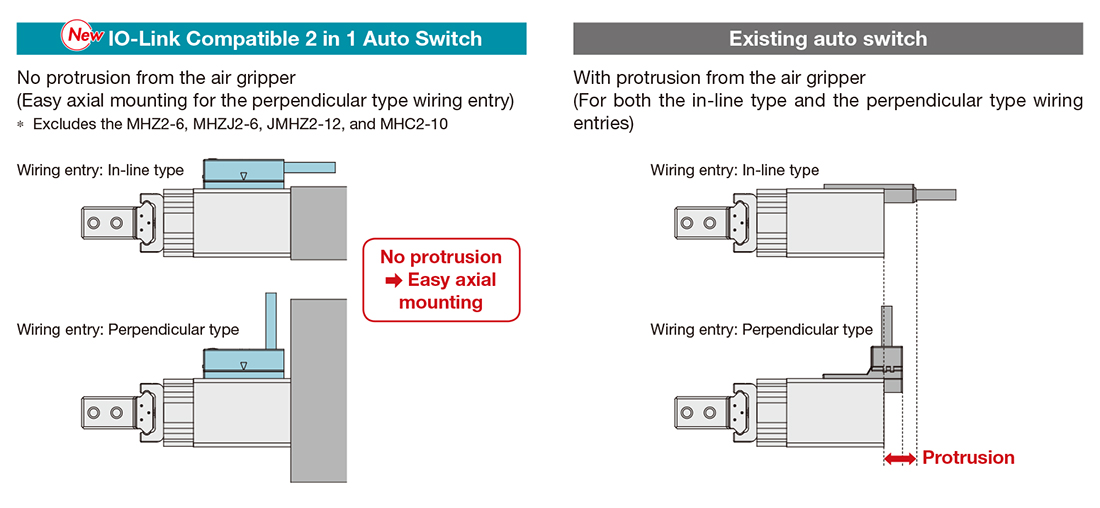

No protrusion from the body end surface

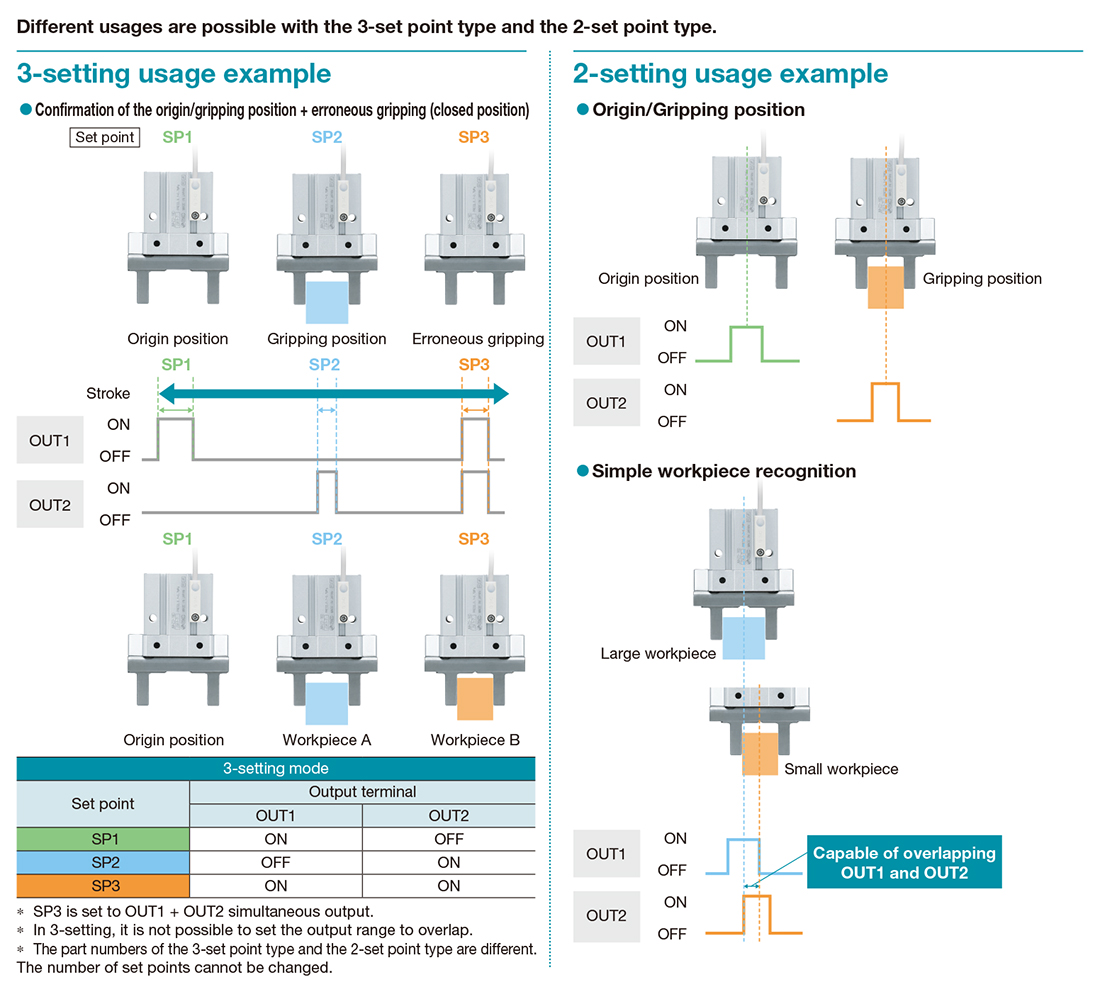

Improved productivity: A wide range of uses are possible according to the number of set points.
Improved productivity: Easy resetting due to position shifting

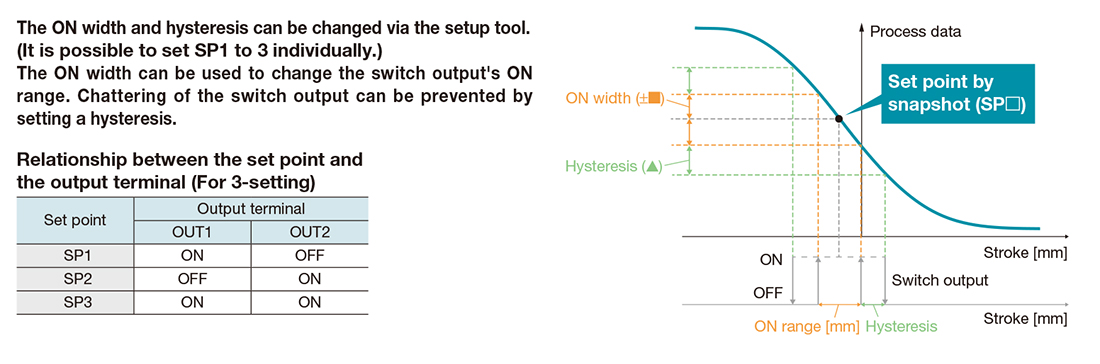

The switch output’s output range and hysteresis can be set.

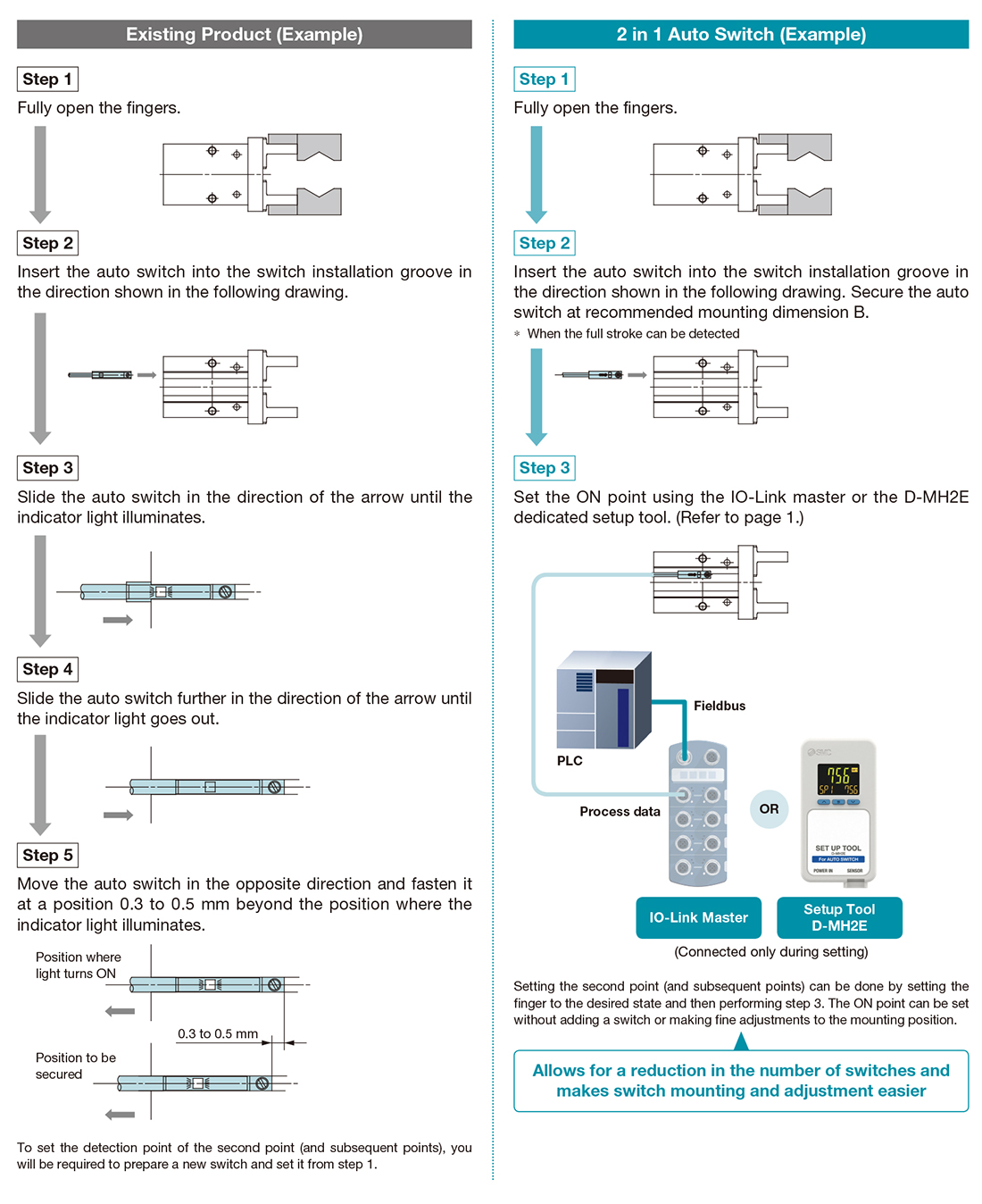

Difference in mounting method between the 2-in-1 auto switch and the existing product

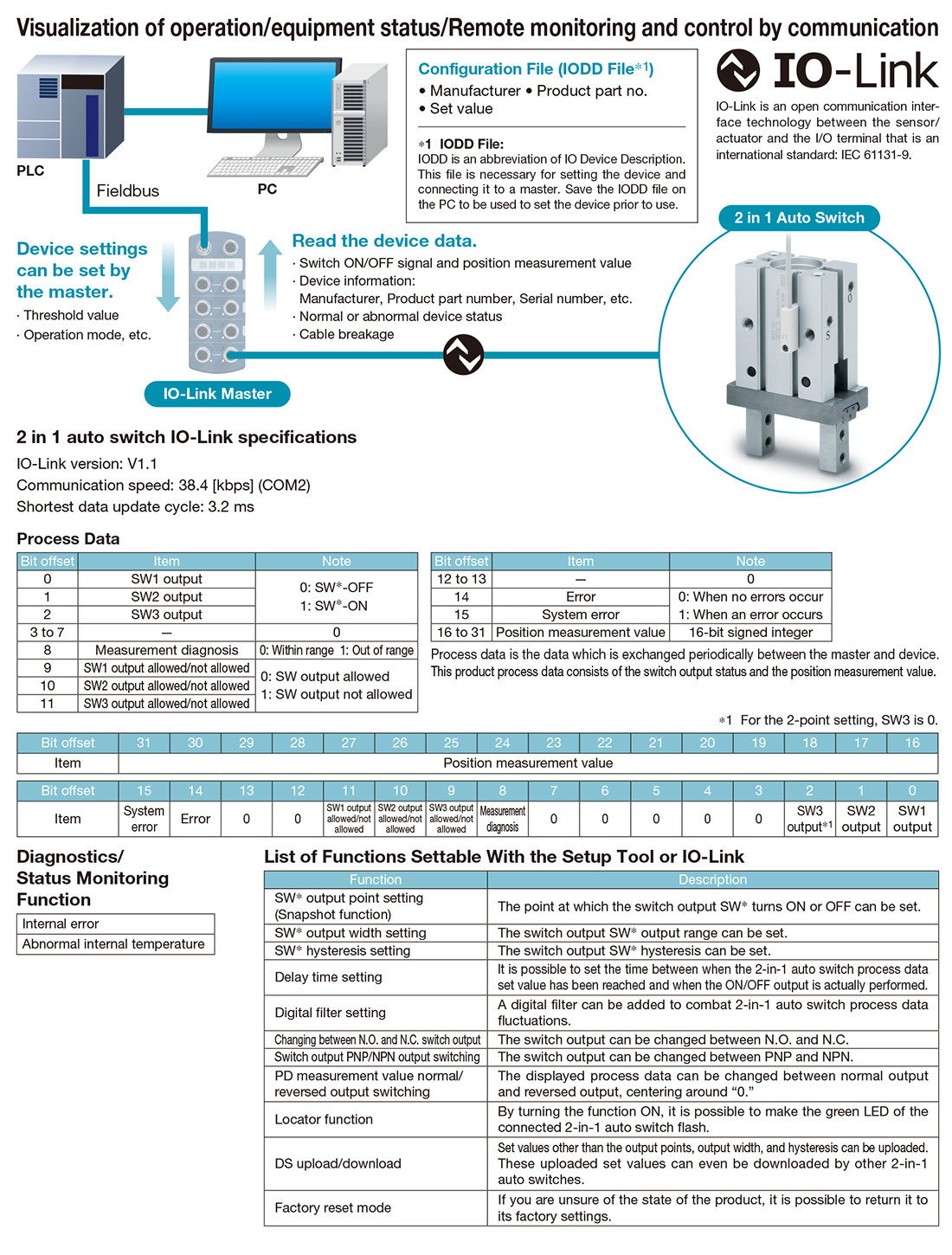

IO-Link compatible
