WEB Catalog

Product Information ?  WEB Catalog  ? Air Cylinders  ? Pin Shift Cylinder

Pin Shift Cylinder

Shot Pin Cylinder CKZP

    ?High precision
    　With rod extended: Deflection of ±0.1 mm or less
    　Non-rotational accuracy: ±0.1 mm or less
    ?Positioning repeatability
    　Positioning accuracy: ±0.05 mm, Distance accuracy: ±0.1 mm
    ?High output: Retract force: 1764 N, Extending force: 2362 N
    ?Mounting Based on NAAMS Standard (71 mm bore)
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
SeriesBore size (mm)Stroke (mm)
CKZP57, 7125, 50

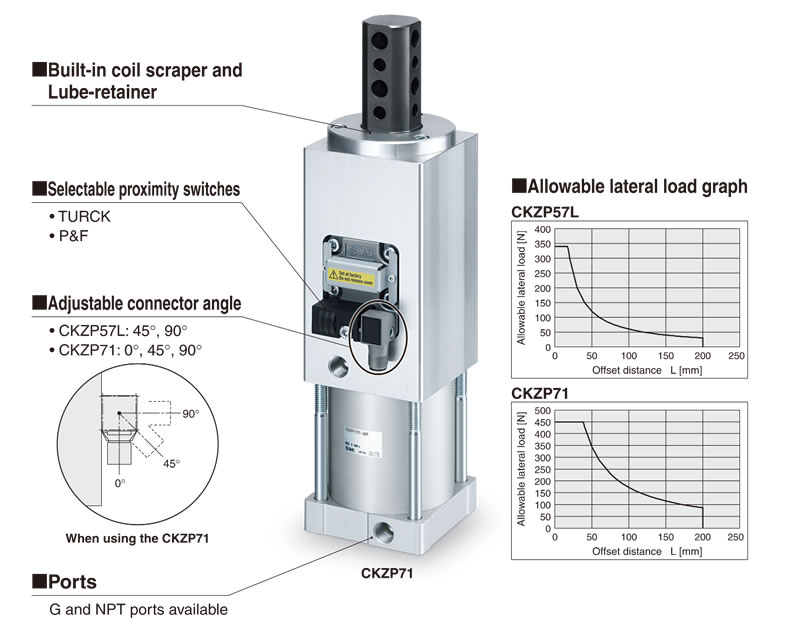

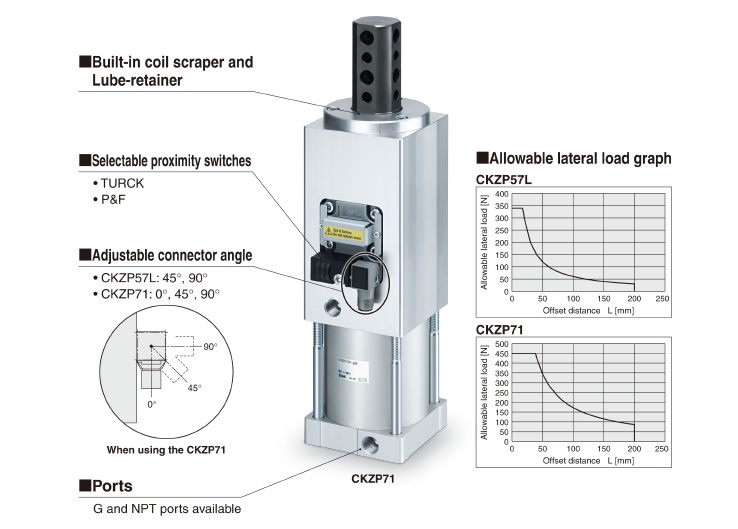

Features

■High Precision

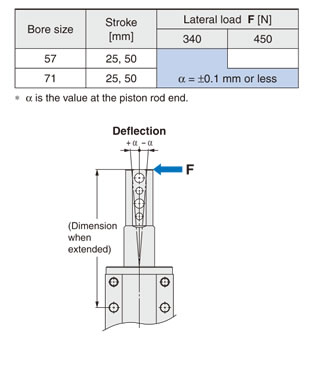

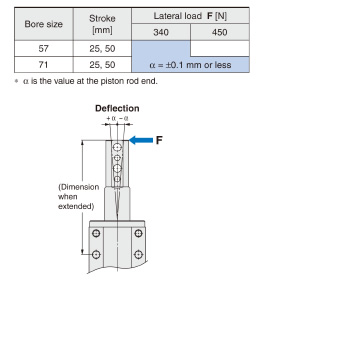

With rod extended: Deflection of ±0.1 mm or less (With 71 mm bore, 50 mm stroke)

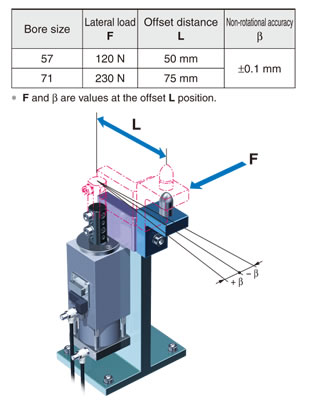

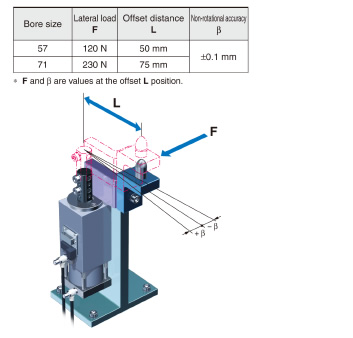

Non-rotational accuracy: ±0.1 mm or less
(71 mm bore, with a 17.25 N·m load applied in the rotating direction.)

■Positioning Repeatability

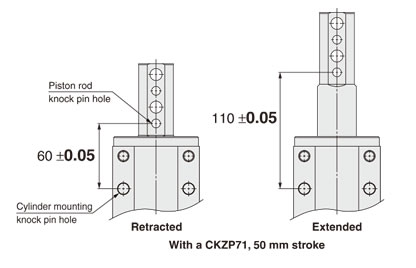

Positioning accuracy ±0.05 mm

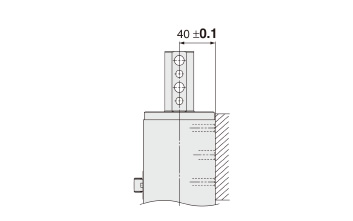

Distance accuracy ±0.1 mm

■High Output

Retract force 1764 N, Extending force 2362N
(71 mm bore, 0.6 MPa pressure)

■Mounting Based on NAAMS
　Standard (71 mm bore)

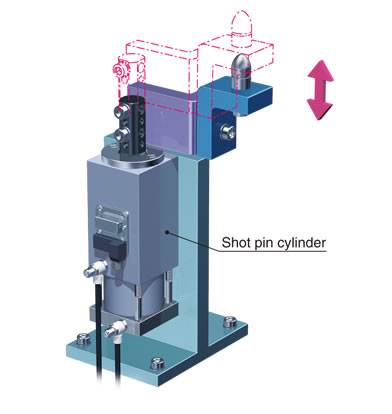

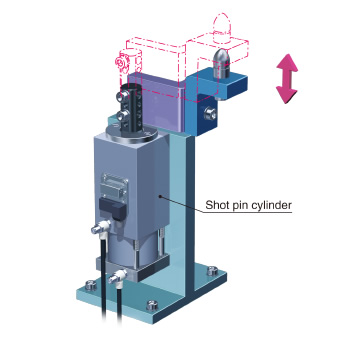

■Application Example

Go Top
