WEB Catalog

Product Information ?  WEB Catalog  ? Air Cylinders  ? Clamp Cylinders

Clamp Cylinders

Clamp Cylinder CK□1

    ?Total tube length reduced by 7 mm (for CKP1□40)
    ?Easy fine speed adjustment with screw adjustment construction
    ?Speed controller valve has no projection from the tube’s external surface
    ?It is possible to mount magnetic field resistant auto switches from
    　3 directions.
    　D-P3DW type, D-P4DW type (CKG1), D-P79WSE type, D-P74L/Z type
    ?Can be used as a spatter resistant cylinder for arc welding (-XC88/-XC89/
    　-XC91) (CKG1 only)

    ? CK1□-Z Series was discontinued in February 2025.
    　Please select CK1□-Z1 Series instead. ?Click here for details.
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
  • Clamp Cylinder CK□1
    Manual
    Type Series Action Bore size (mm) View search result
    StandardCK1Double acting, Single rod40，50，63View search result
    Built-in standard
    magnet type
    （With magnetic field
    resistant auto switch）    		CKG1Double acting, Single rod40，50，63View search result
    Built-in strong
    magnet type
    （With magnetic field
    resistant auto switch）    		CKP1Double acting, Single rod40，50，63View search result
  • Clamp Cylinder CK□1
    Symbol Specifications Download
    -XC88 Made to Order Common Specifications Spatter resistant coil scraper Lube-retainer Grease for welding (Piston rod: Stainless steel 304) PDF
    -XC89 Made to Order Common Specifications Spatter resistant coil scraper Lube-retainer Grease for welding (Piston rod: S45C) PDF
    -XC91 Made to Order Common Specifications Spatter resistant coil scraper Grease for welding (Piston rod: S45C) PDF
TypeSeriesActionClevis width (mm)Bore size (mm)
StandardCK1Double acting, Single rod16.5，19.540，50，63
Built-in standard
magnet type
（With magnetic field
resistant auto switch）		CKG1Double acting, Single rod16.5，19.540，50，63
Built-in strong
magnet type
（With magnetic field
resistant auto switch）		CKP1Double acting, Single rod16.5，19.540，50，63

Features

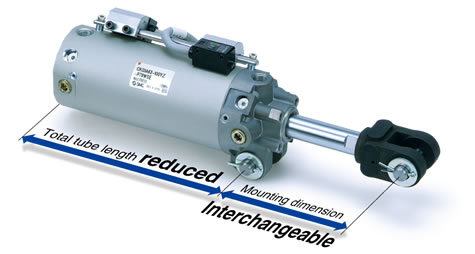

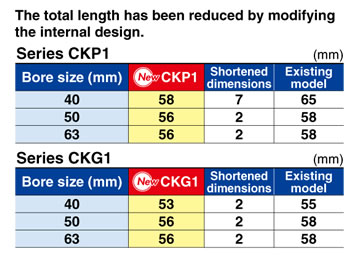

Total tube length reduced

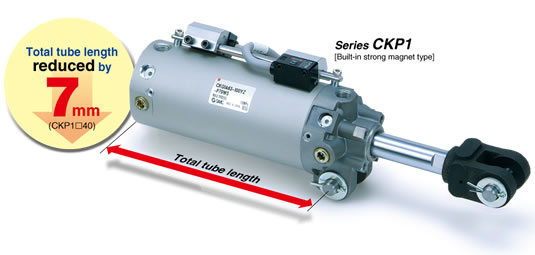

Total tube length reduced by 7mm(For CKP1l40)

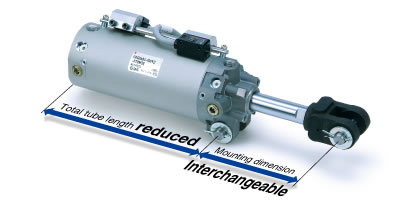

Mounting dimensions are the same as the existing product.

With air cushion

Unclamped side (Head end)···Standard
Air cushion on both ends·······Made to Order (-X1515)

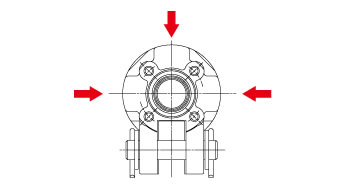

Piping ports are located on three surfaces.

Piping arrangement is more flexible corresponding to the installed environment.

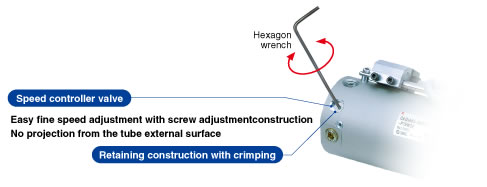

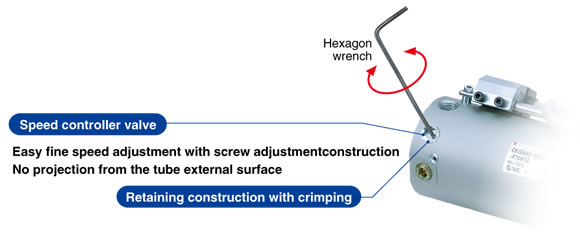

Easy speed adjustment

Easy fine speed adjustment with screw adjustment construction
No projection from the tube external surface

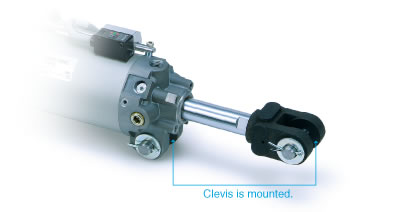

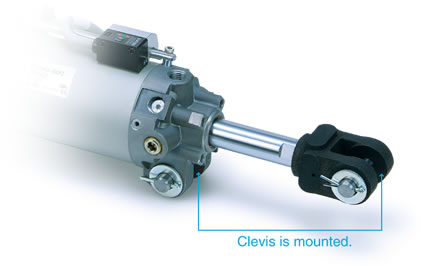

Clevis width:16.5mm/19.5mm

Possible to select depending on the application

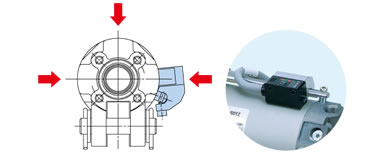

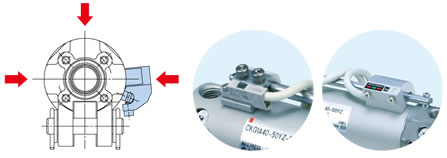

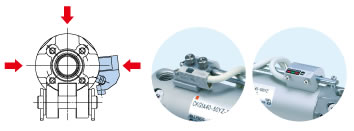

Magnetic field resistant auto switch:Mountable from 3 directions

[Series CKG1/Built-in standard magnet type]

D-P3DW type, D-P4DW

[Series CKP1/Built-in strong magnet type]

D-P79WSE type, D-P74L/Z

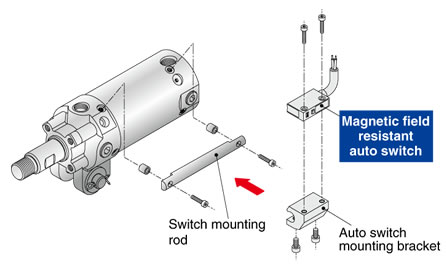

Possible to mount magnetic field resistant auto switch using the mounting rod

［Series CKG1/Built-in standard magnet type］

D-P3DWSC, D-P3DWSE, D-P3DW/L/Z (AC magnetic field)
D-P4DWSC, D-P4DWSE, D-P4DWL/Z (AC magnetic field)

［Series CKP1/Built-in strong magnet type］

D-P79WSE, D-P74L/Z (DC/AC magnetic field)

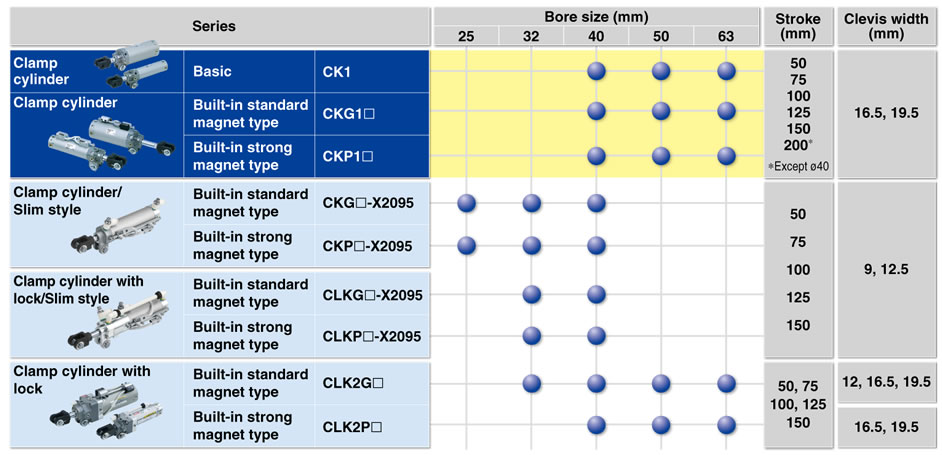

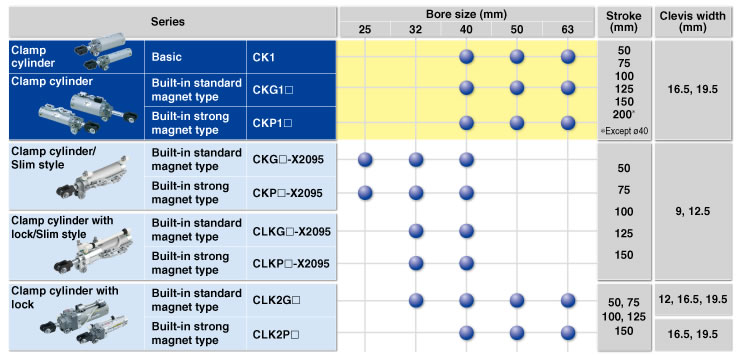

CK1 Series Variations
