Static Neutralization Equipment/Ionizers

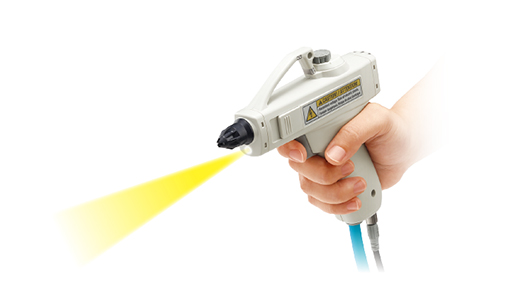

Ionizer Gun IZG10
-

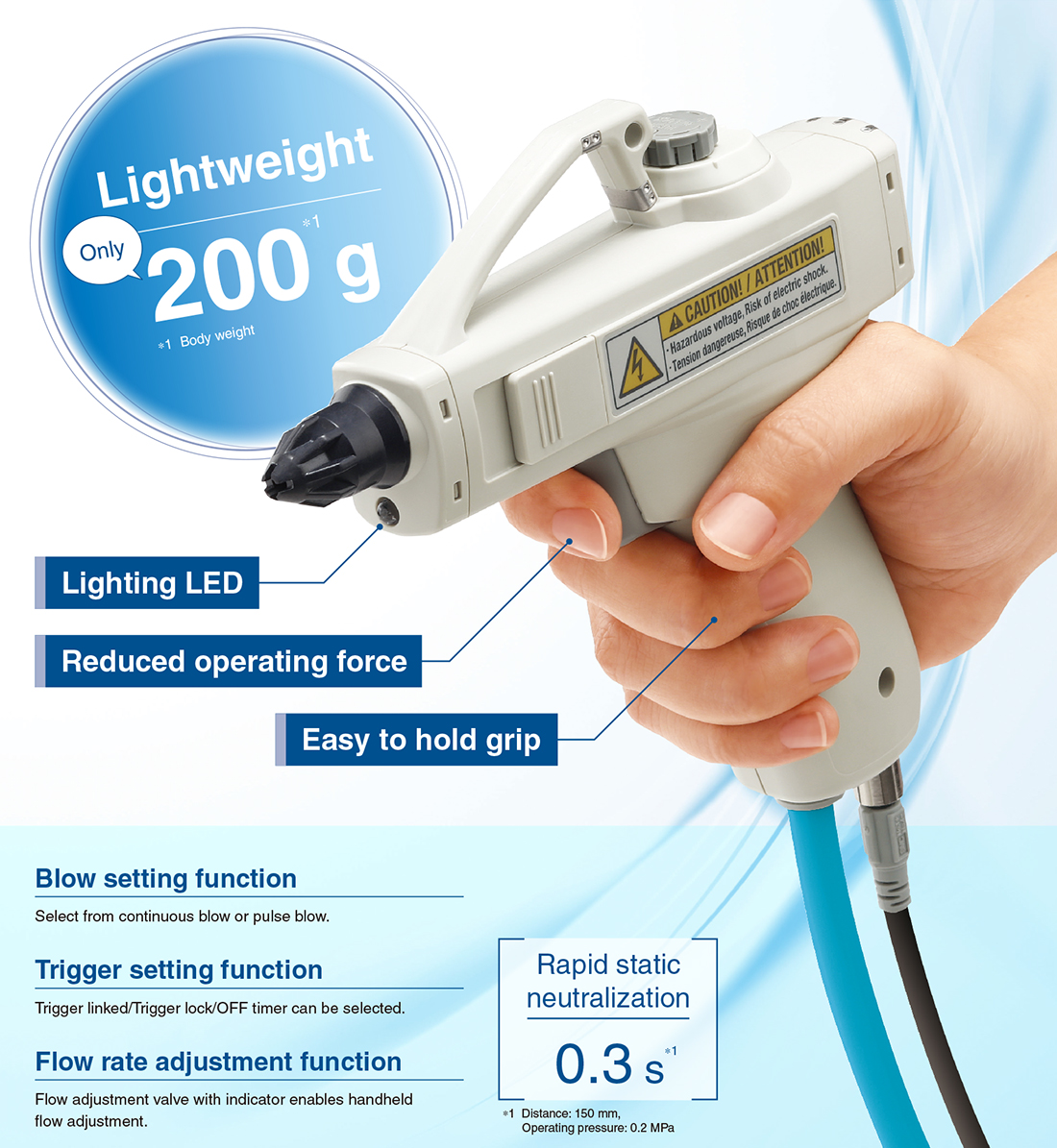

?Lightweight: Only 200 g (Body weight)
?Reduced operating force, Easy to hold grip
?Lighting LED

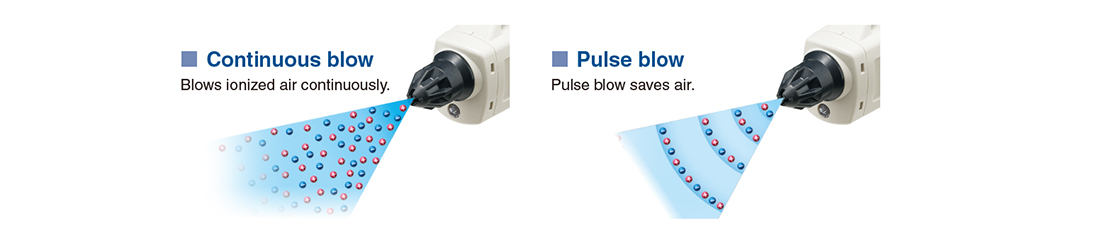

?Blow setting function
Select from continuous blow or pulse blow.
?Rapid static neutralization: 0.3 s (Distance: 150 mm, Operating pressure: 0.2 MPa)
-
2D/3D CAD
The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.
Click here for 2D/3D CAD2D CAD
Click here for 2D CAD Ionizer Gun IZG10
Manual
Series View search result IZG10 View search result Ionizer Gun IZG10
DoC
Series View search result IZG10 View search result
Variations/Application Examples Antistatic Equipment Glossary
Safety Instructions Green Procurement (RoHS)
Safety Instructions Green Procurement (RoHS)
| Series | Ion generation method | Offset voltage (Ion balance) |
|---|---|---|
| IZG10 | Corona discharge type | Within ±10 V |
Features
Lightweight: Only 200 g (Body weight)
Blow and trigger setting can be selected.

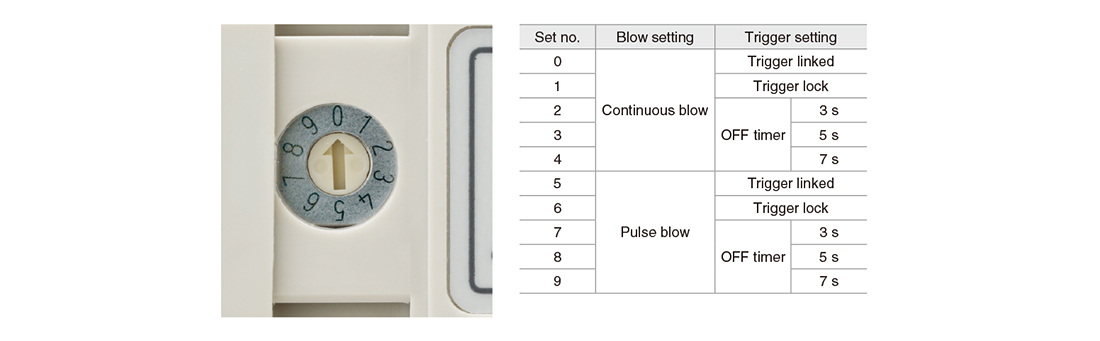

?Mode setting switch
?Selection of blow setting

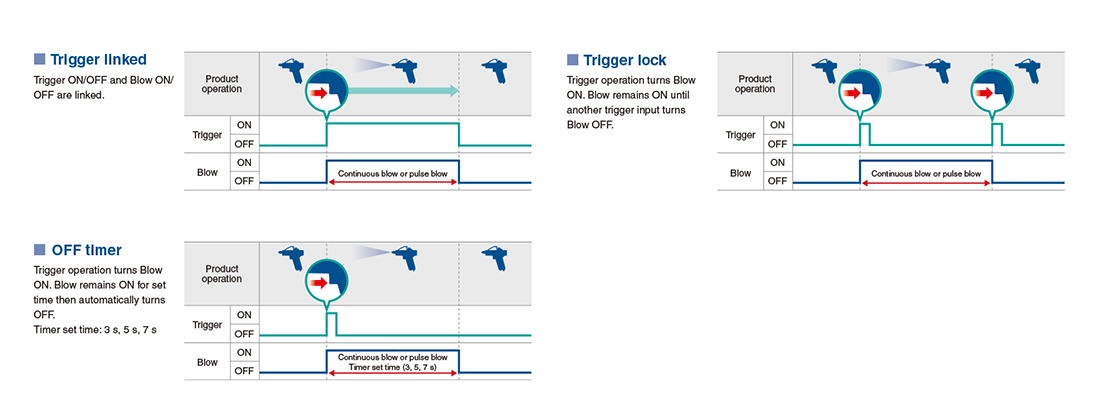

?Selection of trigger setting
-

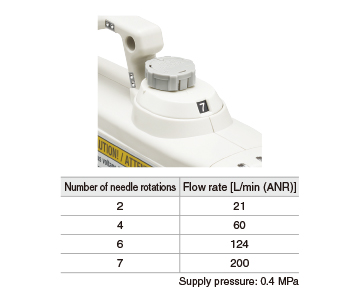

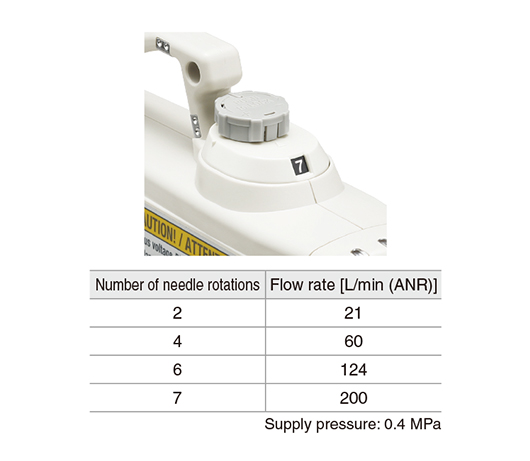

With flow adjustment valve (with indicator)
?Flow rate of ionized air can be adjusted on the gun. ?The flow rate can be controlled numerically.
-

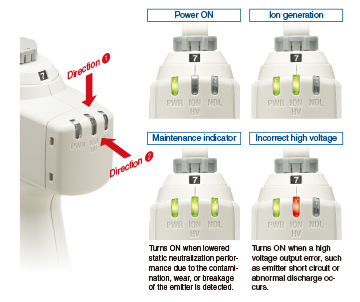

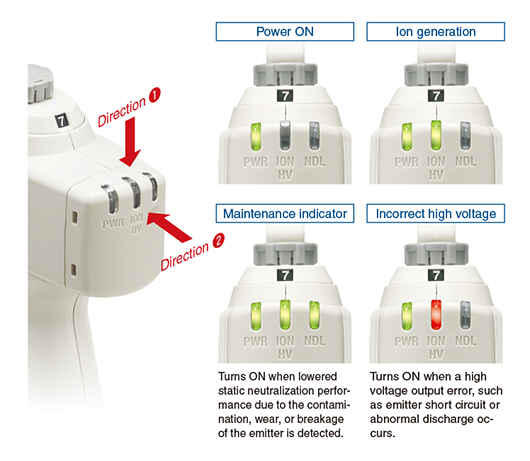

High visibility LEDs
?Rear mounted LEDs are easy to see during operation.
-
Lighting LED
?Easy to find particles on the workpiece
-

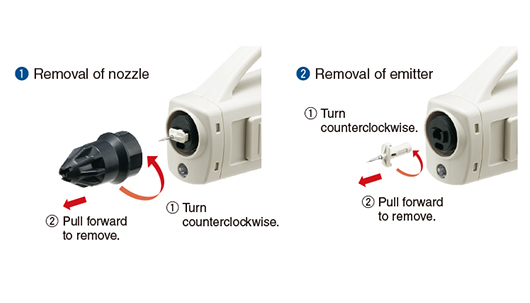

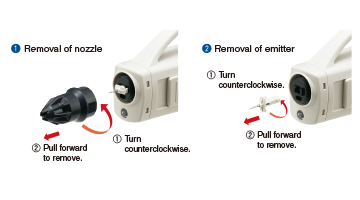

Easy cleaning and replacement of emitters

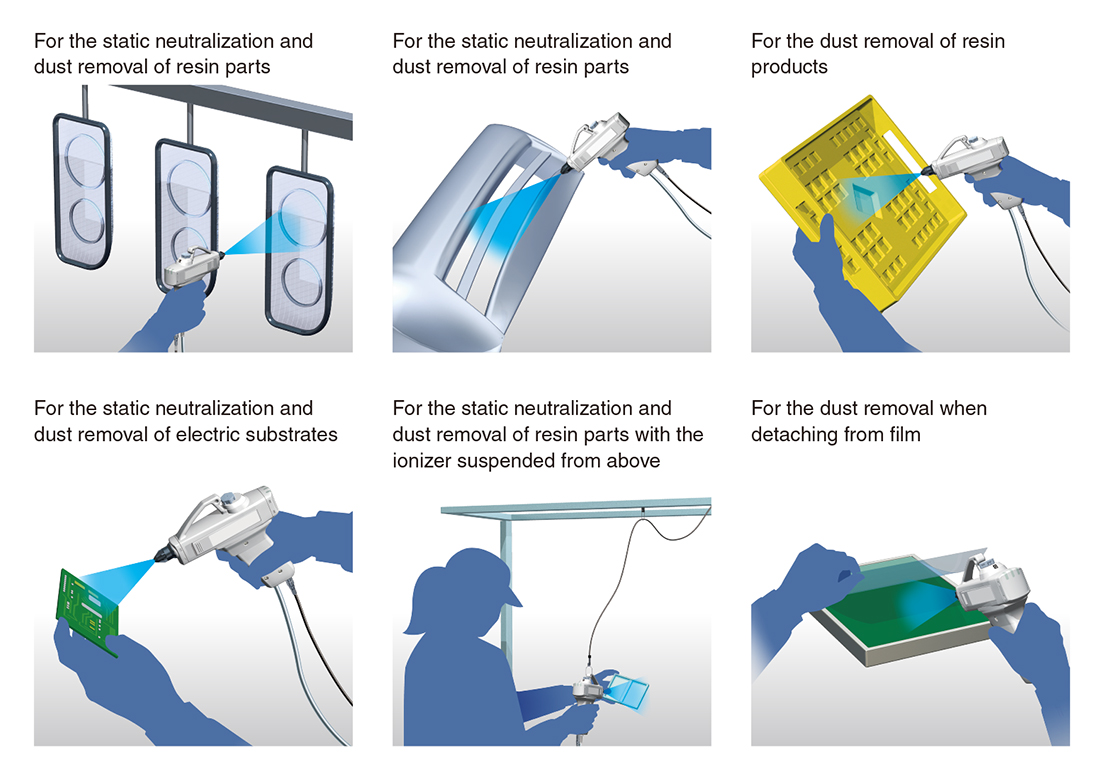

Application Examples
