Product Information ?  WEB Catalog  ? Process Valves  ? Compact 2/3 Port Solenoid Valves/Air Operated Valves

Compact 2/3 Port Solenoid Valves/Air Operated Valves

Direct Operated 2/3 Port Isolated Valve LVMK20/200

    ?Low particle generation, Oil-free, Metal-free
    ?Fluids: Air, Water, Deionized water, Diluent, Cleaning fluid
    ?Isolated structure: The solenoid drive body is separated from the fluid area by a block seal.
    ?Easy piping
    ?Minimal dead space
    ?Flow adjustment is not required.
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
  • Direct Operated 2/3 Port Isolated Valve LVMK20/200
    DoC
    Series View search result
    LVMKView search result

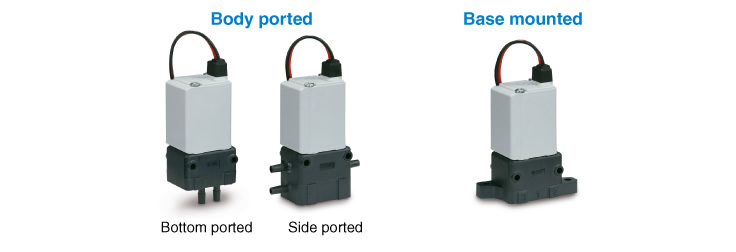

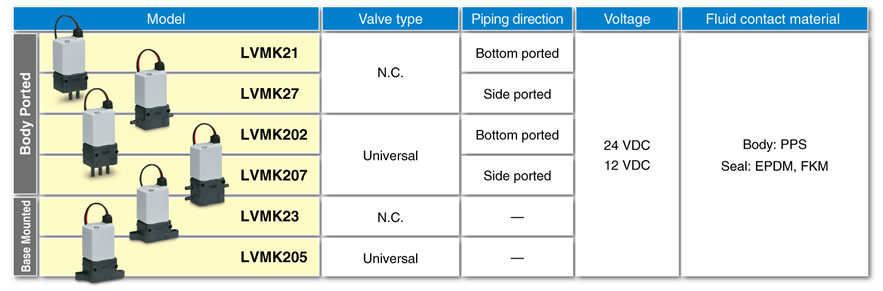

SeriesValve typePiping directionFluid contact material
LVMKN.C.
Universal		Bottom ported
Side ported		Body: PPS
Seal: EPDM, FKM

Features

Low Particle Generation, Oil-free, Metal-free

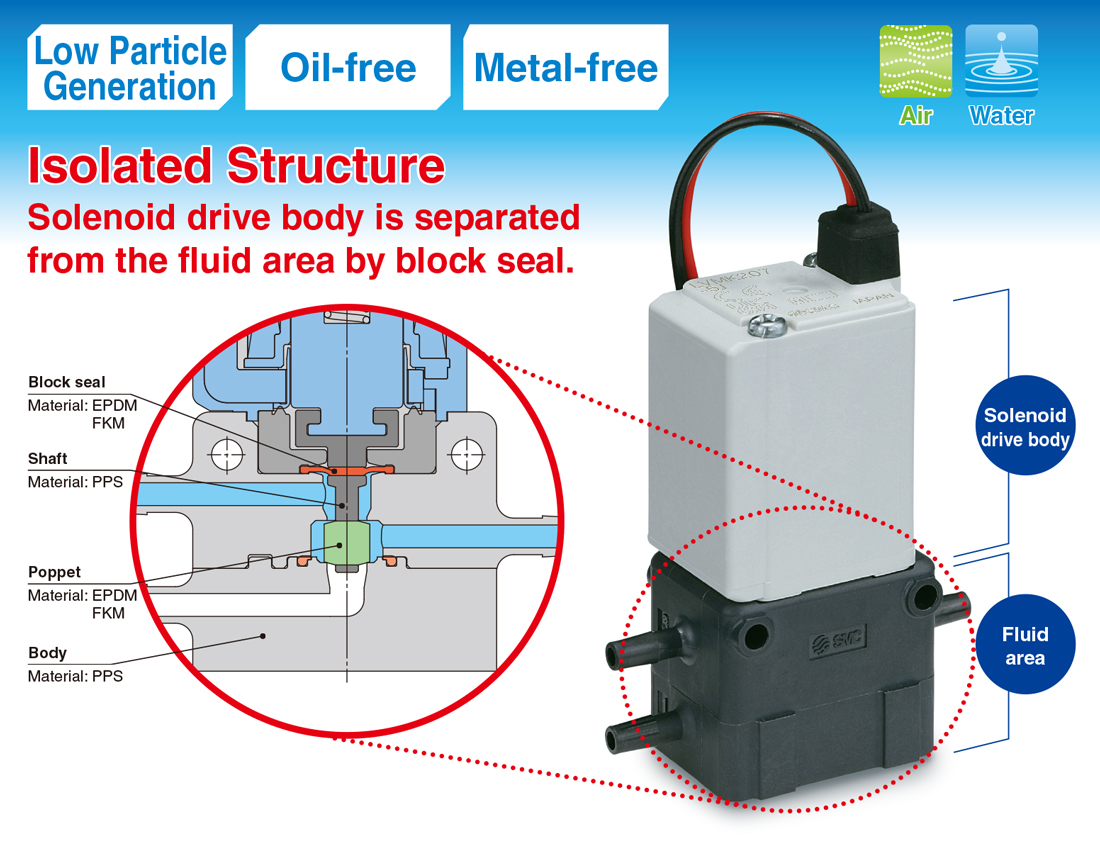

?Isolated structure
Solenoid drive body is separated from the fluid area by block seal.

?Easy piping

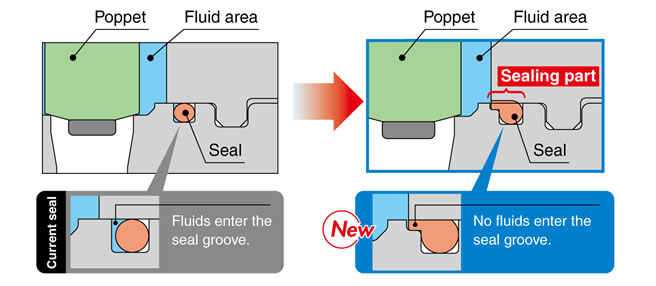

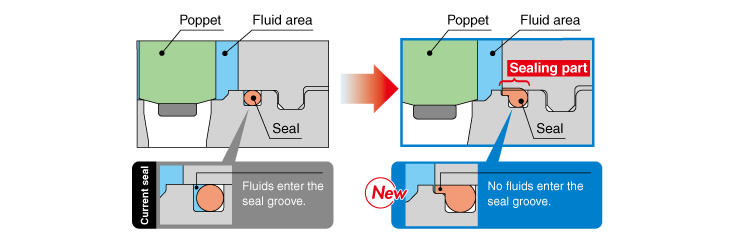

?Minimal dead space
No fluids enter the seal groove.

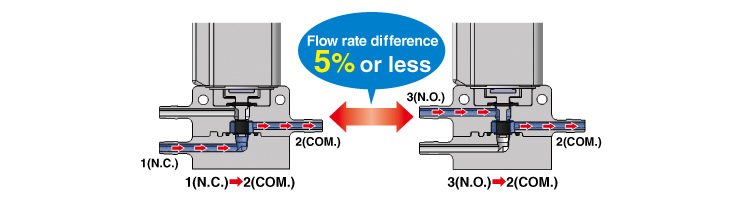

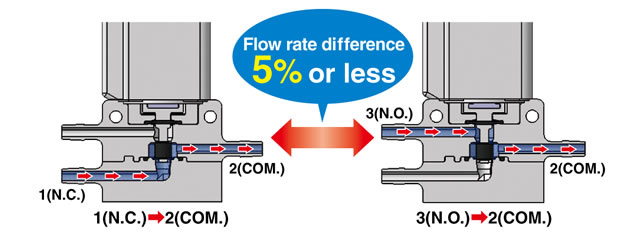

?Flow adjustment not required
As the flow rate difference is 5% or less, no flow rate adjustment is required at inlet and outlet side.

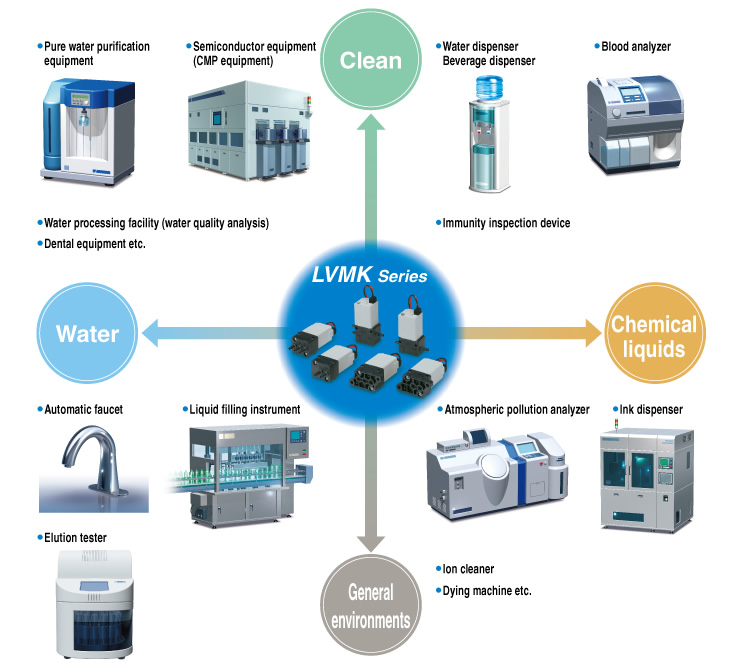

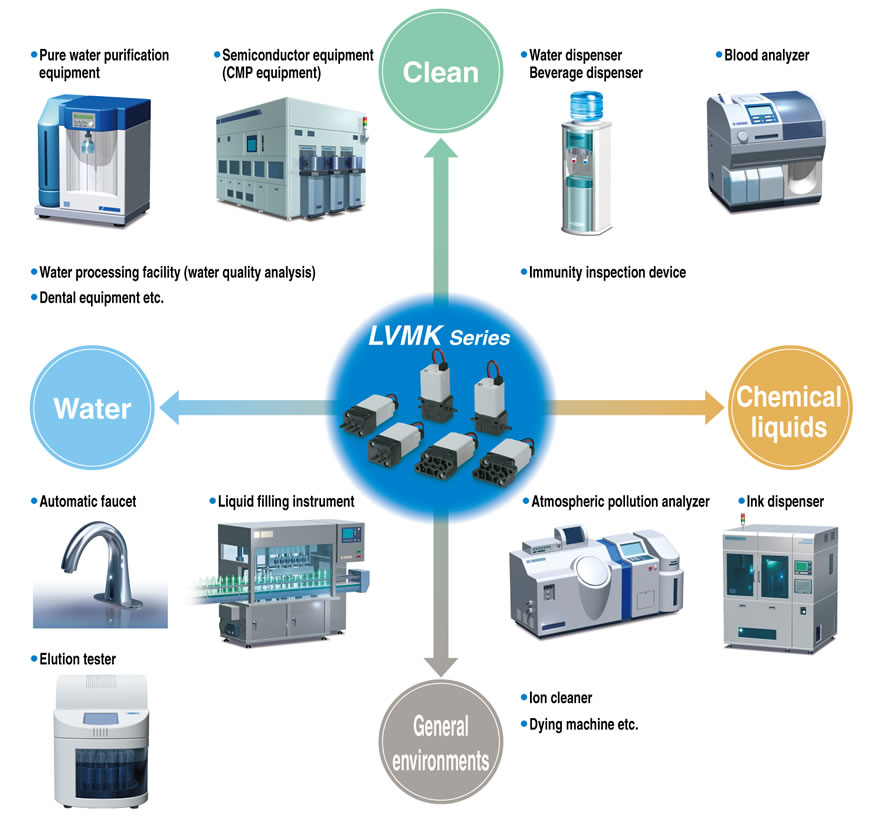

Application Examples

Oil-free, clean, low particle generation applications

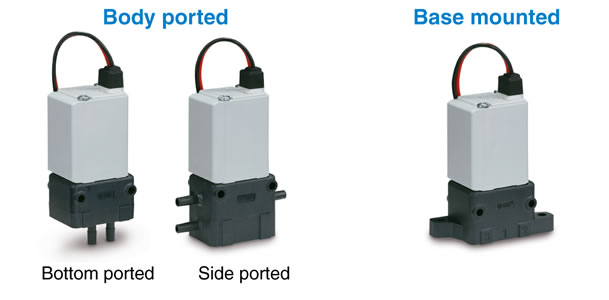

Variations
