WEB Catalog

Product Information ?  WEB Catalog  ? Temperature Control Equipment  ? Thermo-cons/Thermoelectric Baths (Peltier-Type Temperature Control Equipment)

Thermo-cons/Thermoelectric Baths (Peltier-Type Temperature Control Equipment)

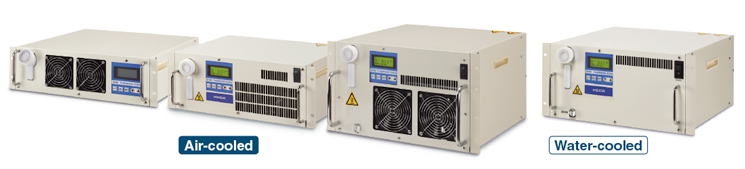

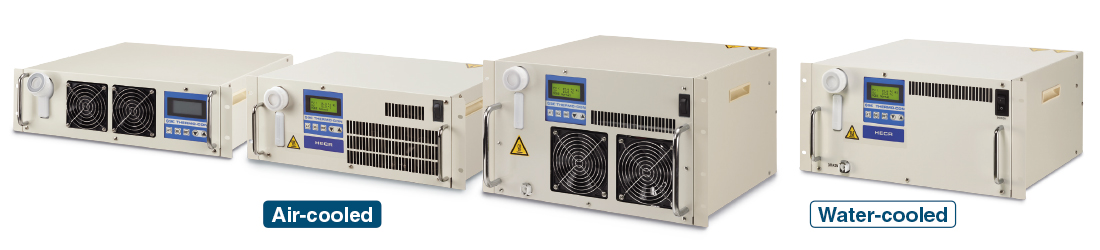

Peltier-Type Thermo-con/Rack Mount Type
HECR

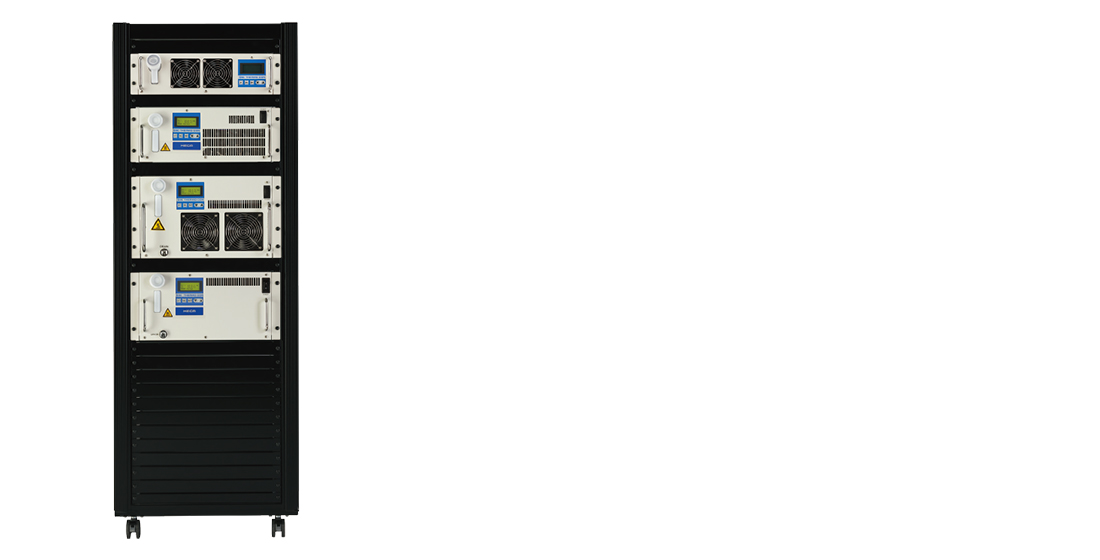

    ?Good space utilization: Mountable in a 19-inch rack
    　Saves space by allowing multiple pieces of equipment to be mounted
    　together in a rack.
    ?Temperature stability: ±0.01℃ to 0.03℃
    ?Set temperature range: 10℃ to 60℃
    ?Cooling capacity: 200 W, 400 W, 510 W, 800 W, 1 kW, 1.2 kW
    ?Power consumption: 200 W, 300 W, 400 W

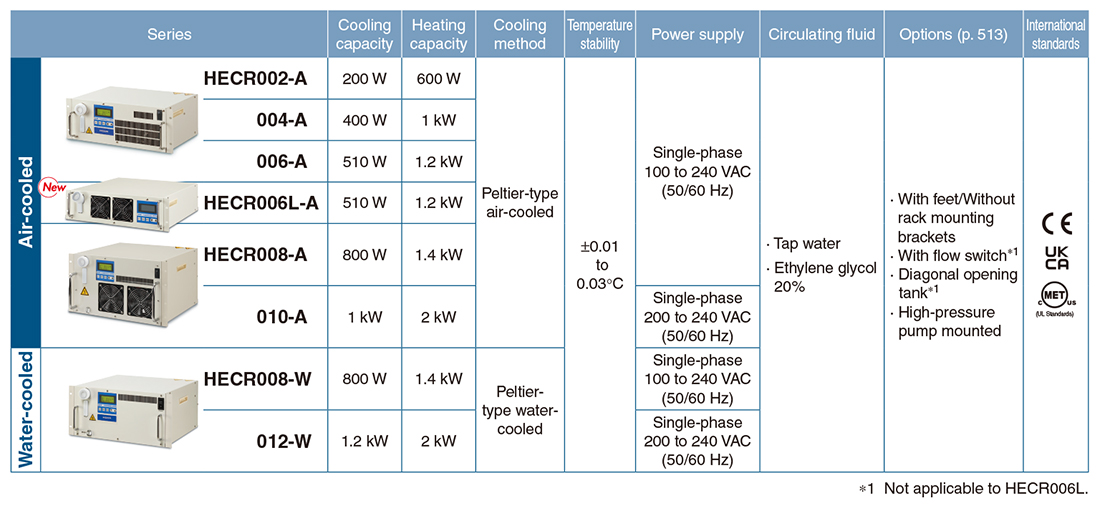

SeriesSet temperature
range		Cooling
capacity		Temperature
stability		Cooling
method
HECR002-A10 to 60℃200 W±0.01 to 0.03℃Peltier-type air-cooled
HECR004-A10 to 60℃400 W±0.01 to 0.03℃Peltier-type air-cooled
HECR006-A10 to 60℃510 W±0.01 to 0.03℃Peltier-type air-cooled
HECR006L-A10 to 60℃510 W±0.01 to 0.03℃Peltier-type air-cooled
HECR008-A10 to 60℃800 W±0.01 to 0.03℃Peltier-type air-cooled
HECR010-A10 to 60℃1 kW±0.01 to 0.03℃Peltier-type air-cooled
HECR008-W10 to 60℃800 W±0.01 to 0.03℃Peltier-type water-cooled
HECR012-W10 to 60℃1.2 kW±0.01 to 0.03℃Peltier-type water-cooled

Features

Can precisely control the temperature of a heat source or process fluid

Precisely control the temperature of the circulating fluid by using the Peltier device.
Refrigerant-free and environmentally friendly.

Space-saving design with reduced height

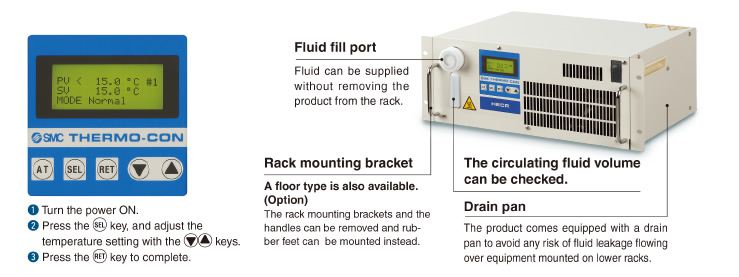

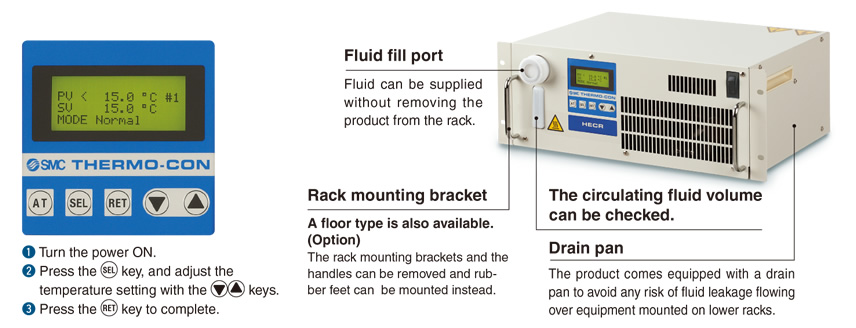

Simple operation

Mountable in a 19-inch rack



The water-cooled type has been added. (800 W, 1.2 kW)　New

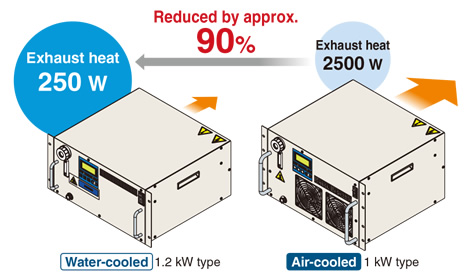

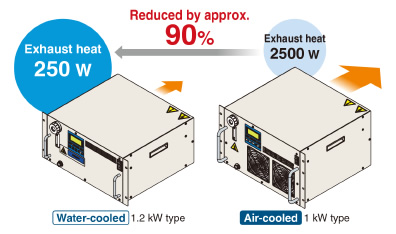

Reduces the amount of exhaust heat by 90% Suppresses rises in the ambient temperature

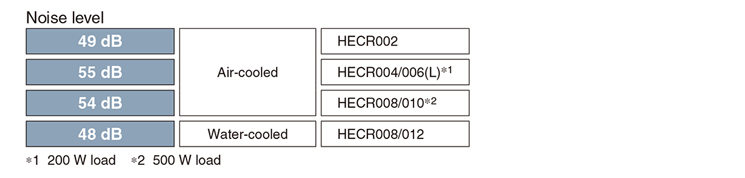

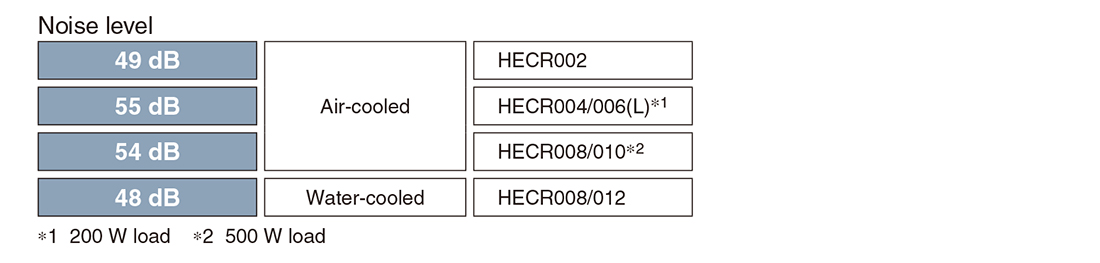

Low-noise design: 48 dB (Water-cooled)

This product generates less vibration, dust, and noise due to its lack of moving parts, such as a compressor. In particular, the water-cooled type is quieter as it uses no fans. For the air-cooled type (excluding the 200 W) as well, noise is reduced by suppressing the number of fan rotations when the cooling load is low.

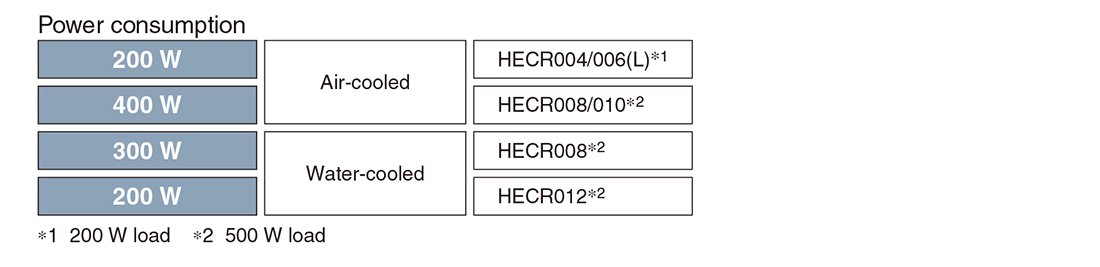

Energy-saving design: 200 W (Water-cooled)

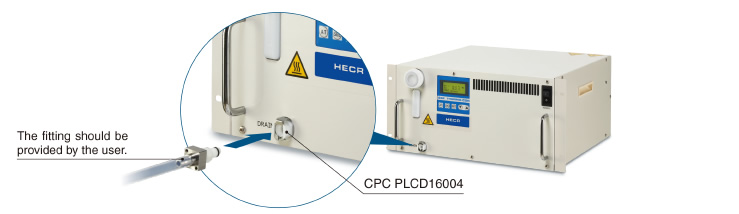

Drain port provided on the front (800 W, 1 kW, 1.2 kW type)

Draining the circulating fluid is possible without removing the piping.

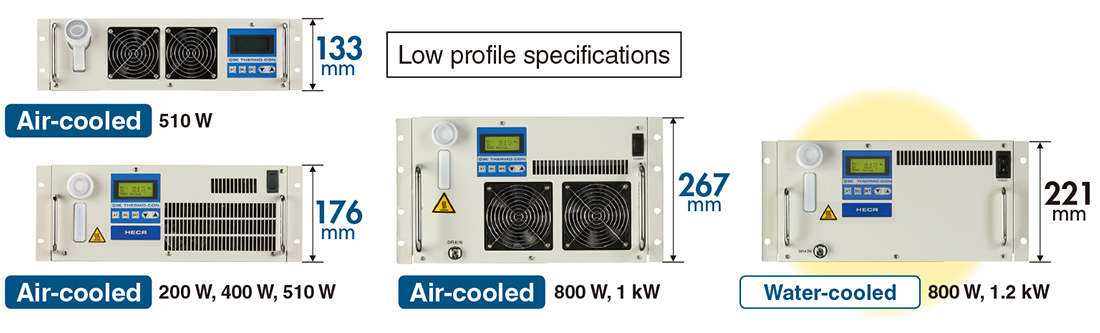

Variations

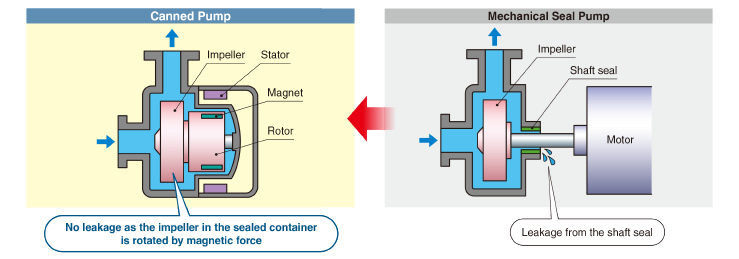

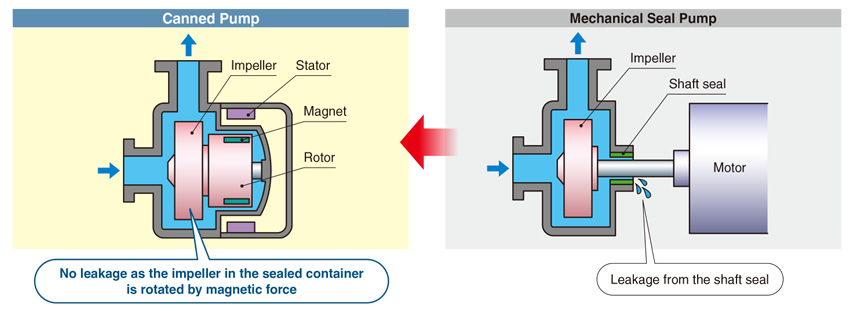

Reduces pump maintenance time (Maintenance-free pump)

A mechanical sealless canned pump is used.
As the circulating fluid of the pump cannot leak externally, checks for pump leakage and maintenance of the shaft seal are not necessary

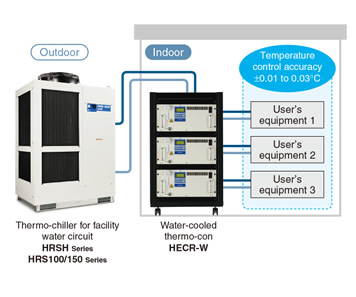

Application example for the water-cooled thermo-con

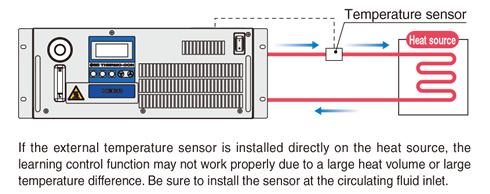

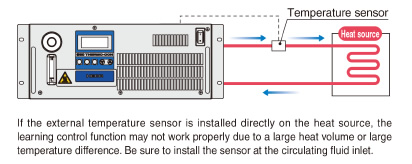

Learning control function (Temperature control by external temperature sensor)

This function adjusts the fluid temperature to the set value with an automatic offset setting. Setting the external temperature sensor at the circulating fluid inlet located just in front of the heat source allows the thermo-con to sample the fluid temperature. This function is effective in automatically adjusting for heat exhaust from piping, etc.

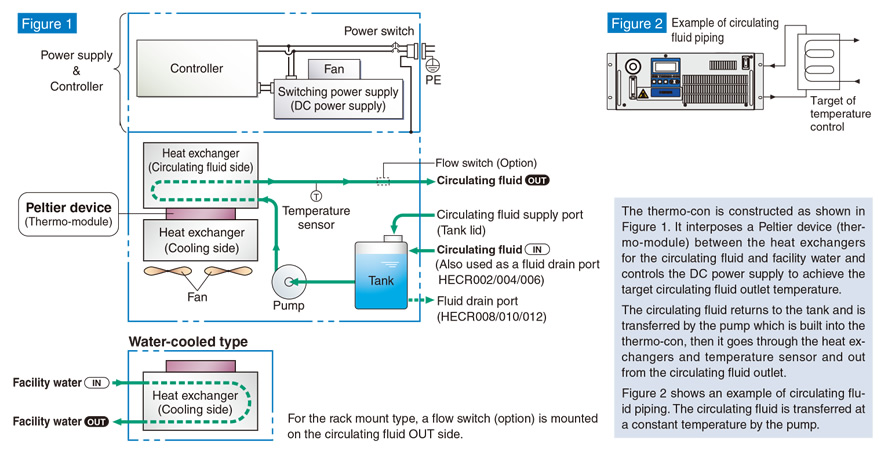

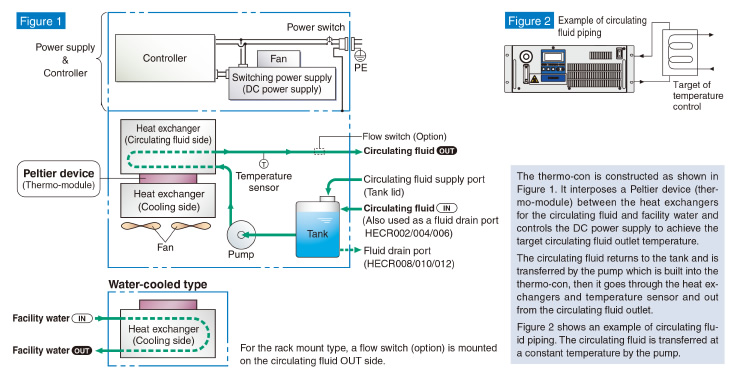

Construction and Principles

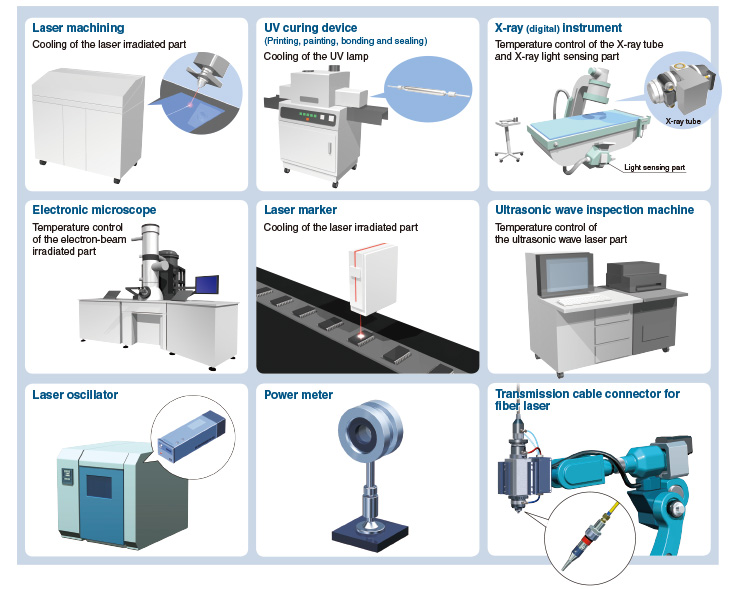

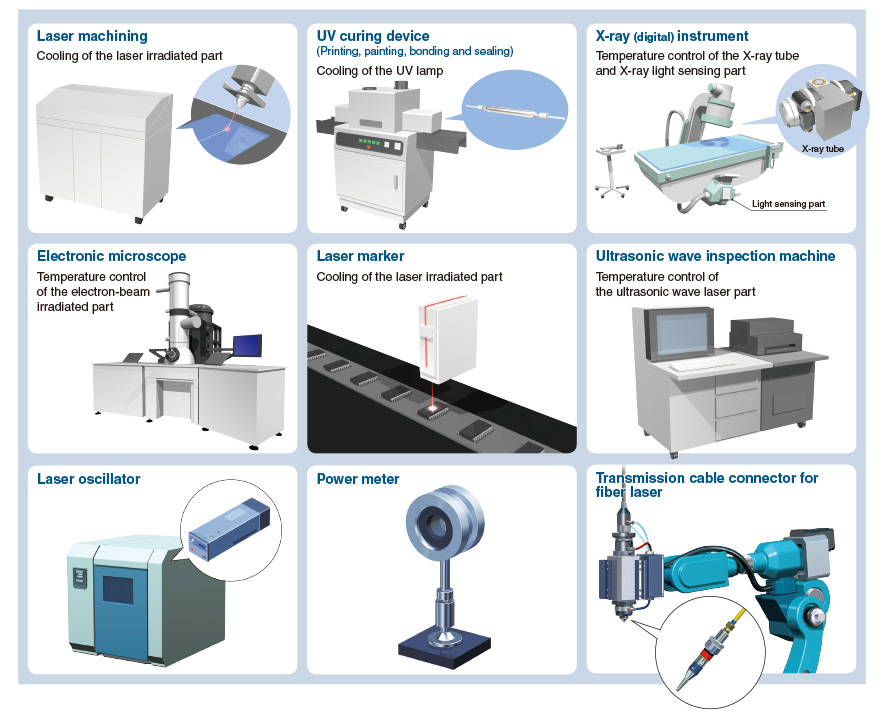

Application Examples
