Soft Start up Valves

Soft Start-up Valve AV□2000-A/3000-A/4000-A/5000-A

    ?A start-up valve for low-speed air supply to gradually raise initial pressure in an air system and for quick exhaust by cutting off the air supply

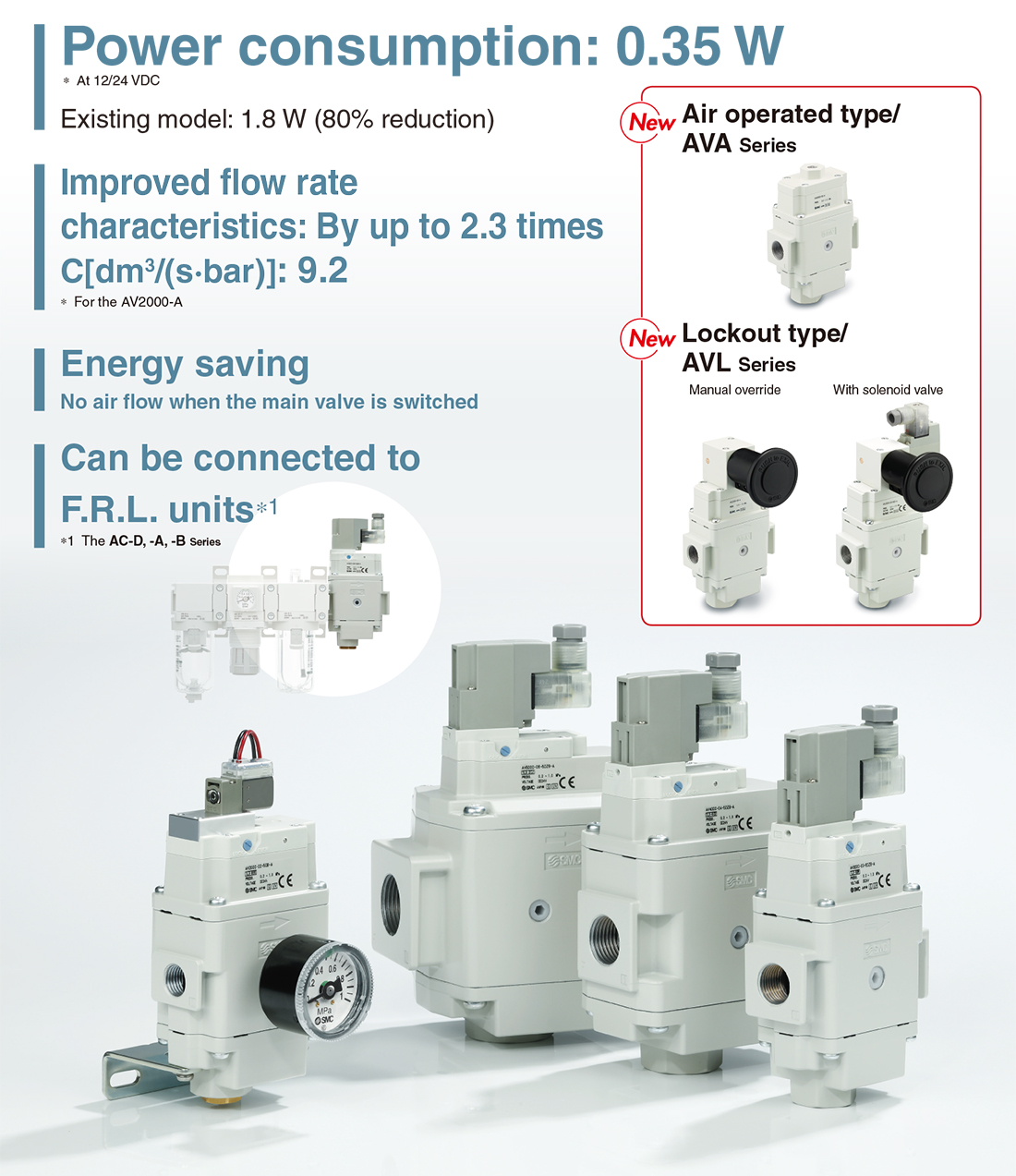

    ?Power consumption: 0.35 W
    ?Improved flow rate characteristics: By up to 2.3 times (C[dm3/(s·bar)]: 9.2)
    ?Energy saving: No air flow when the main valve is switched
    ?Improved low-speed air supply adjustability
    ?Smaller profile and less work required due to integrated silencer
    ?With a lockout mechanism (With locking hole)

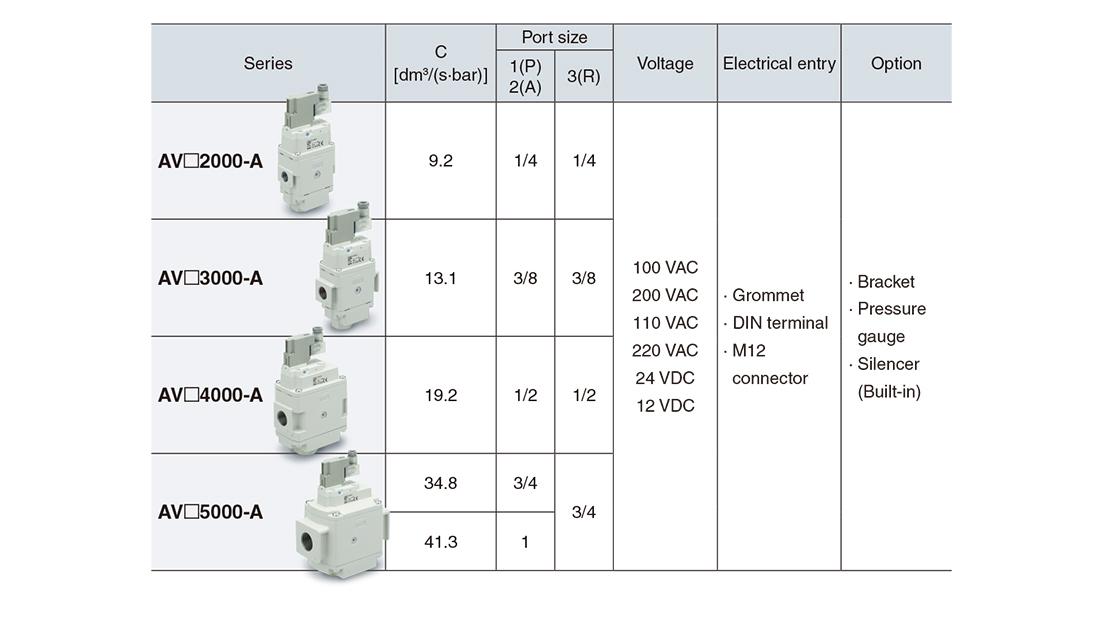

SeriesC
［dm3/（s?bar）］		Port sizeOperating pressure range (MPa)
AV□2000-A9.21/40.2 to 1.0
AV□3000-A13.13/80.2 to 1.0
AV□4000-A19.21/20.2 to 1.0
AV□5000-A34.8
41.3		3/4
1		0.2 to 1.0

Features

Soft Start-up Valve

A start-up valve for low-speed air supply to gradually raise initial pressure in an air system and for quick exhaust by cutting off the air supply

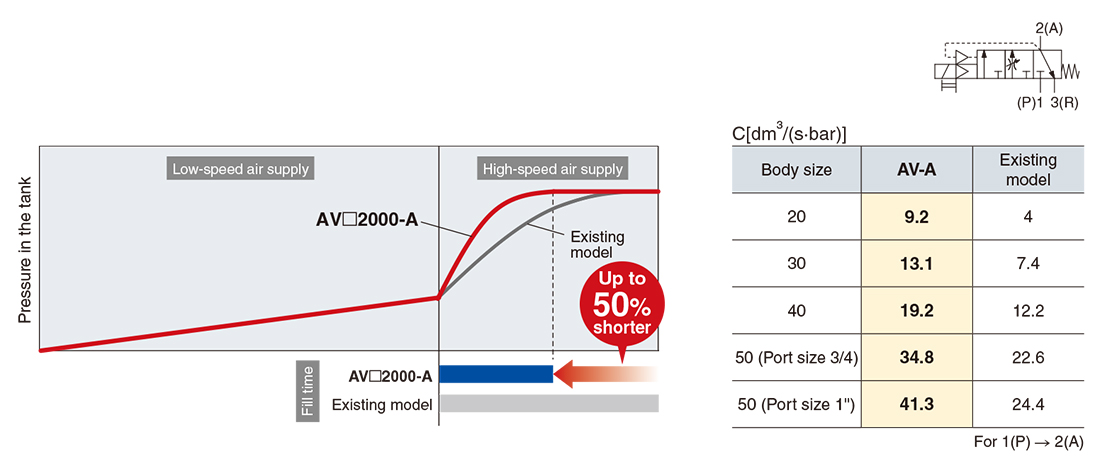

Improved flow rate characteristics＊: By up to 2.3 times

C［dm3/(s·bar)］: 9.2, Fill time: Up to 50% shorter

＊ For high-speed air supply

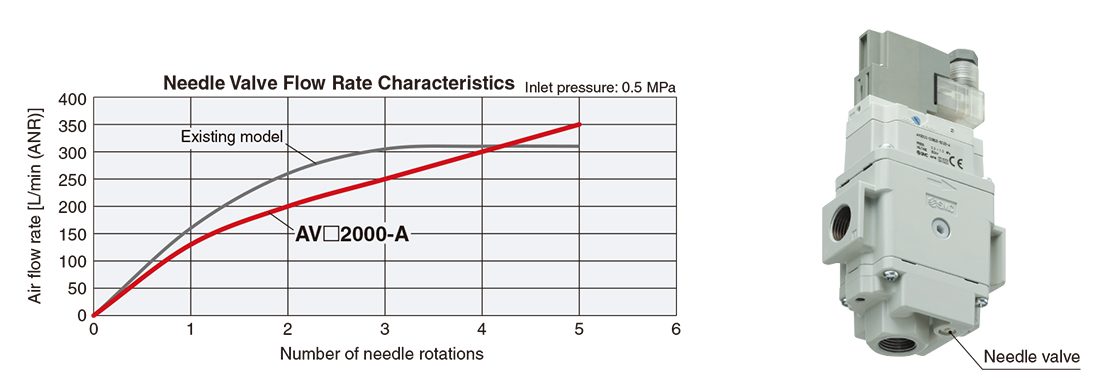

Improved low-speed air supply adjustability

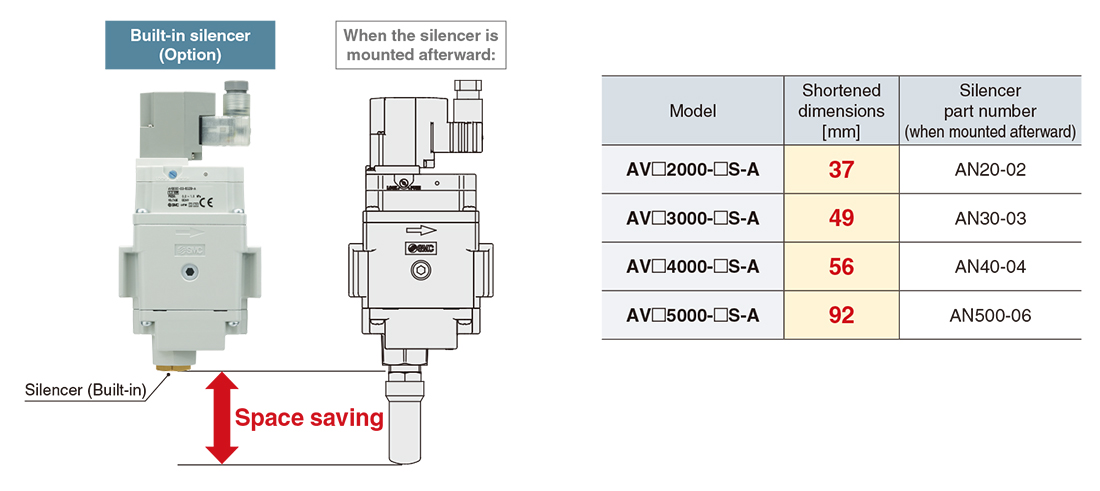

Smaller profile and less work required due to integrated silencer

Energy saving

As the flow passage to port 3(R) is already closed for the main valve, air does not blow out from the product when switching the main valve (exhaust → low-speed air supply).

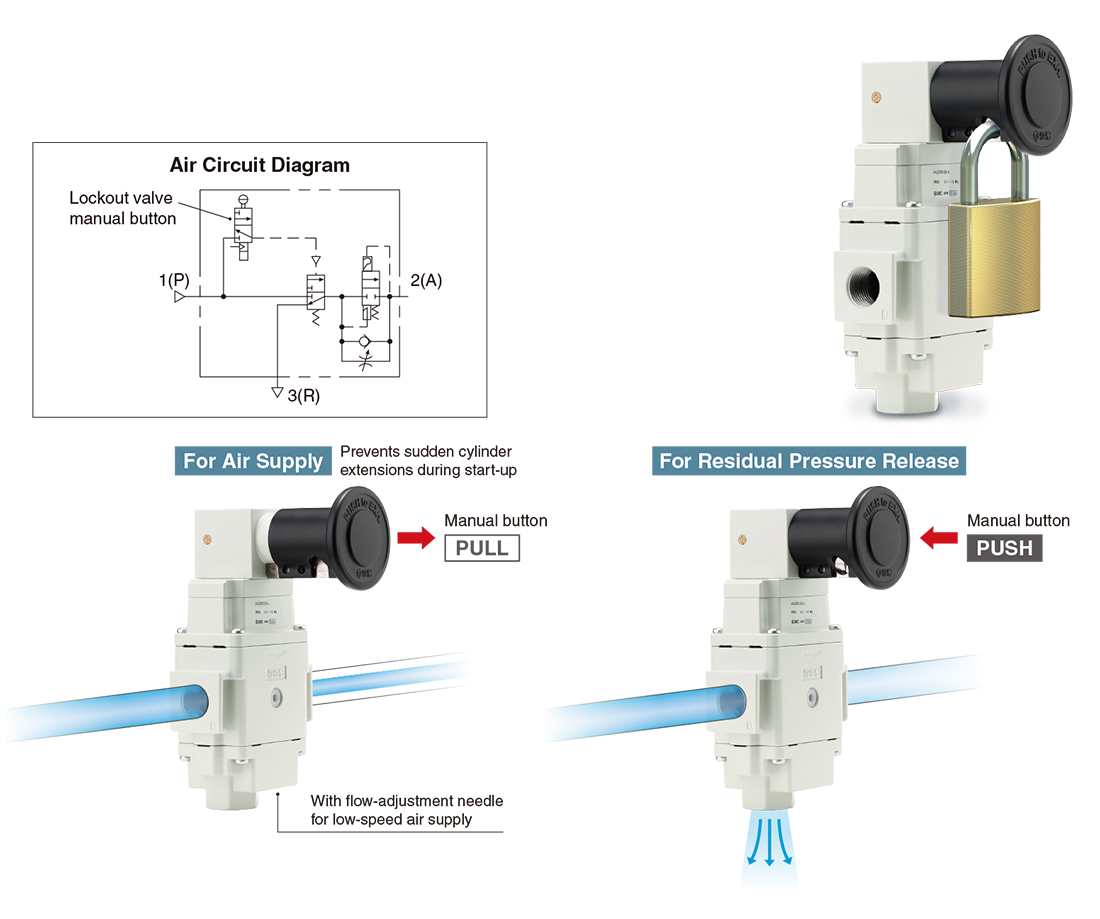

With a lockout mechanism (With locking hole) NEW

The manual button can be padlock secured during pressure release.
This can prevent accidental operation.

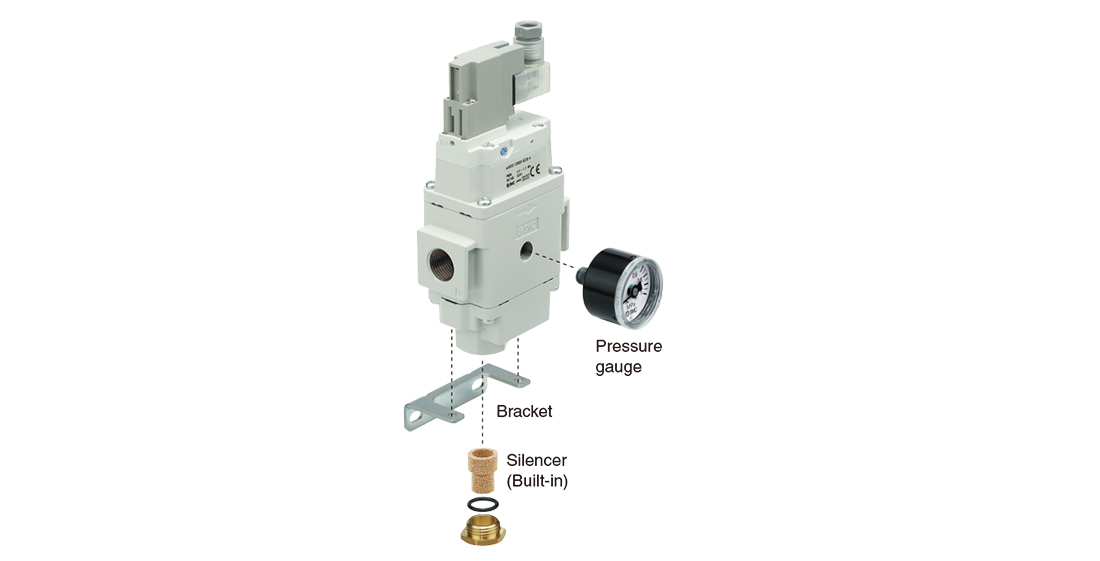

Options

Variations

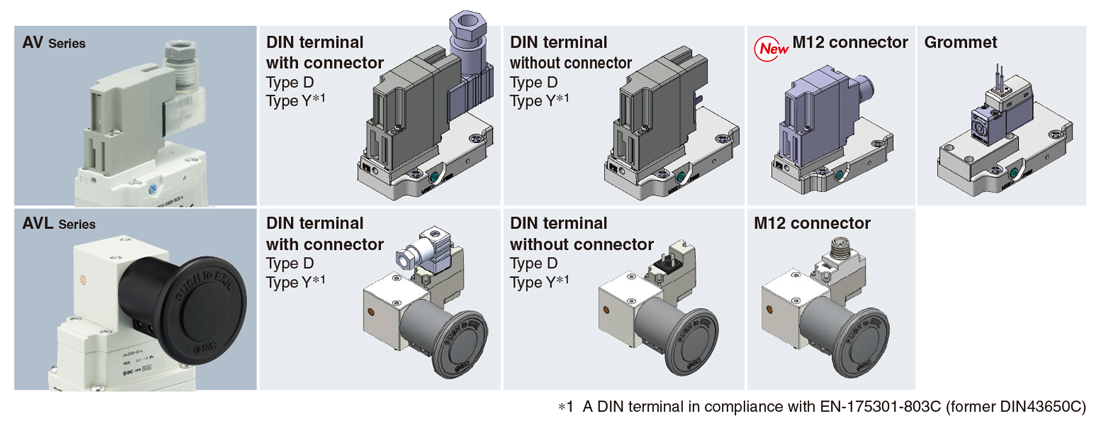

Electrical Entry Variations

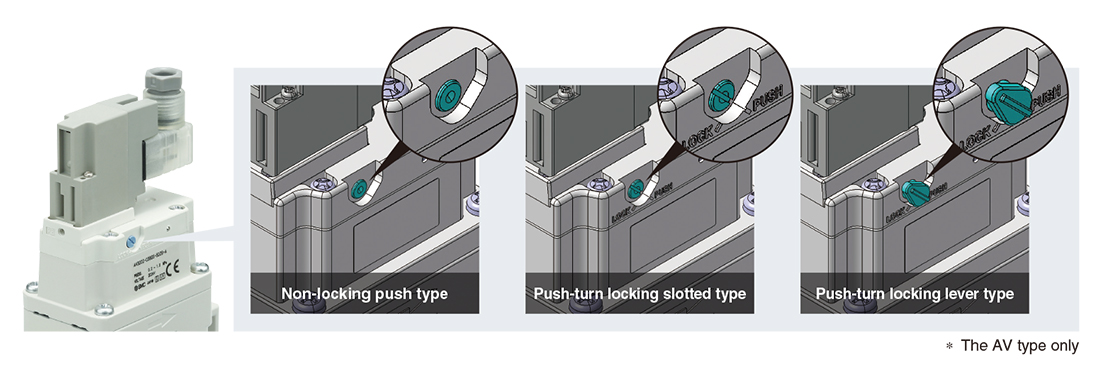

Manual Override Variations

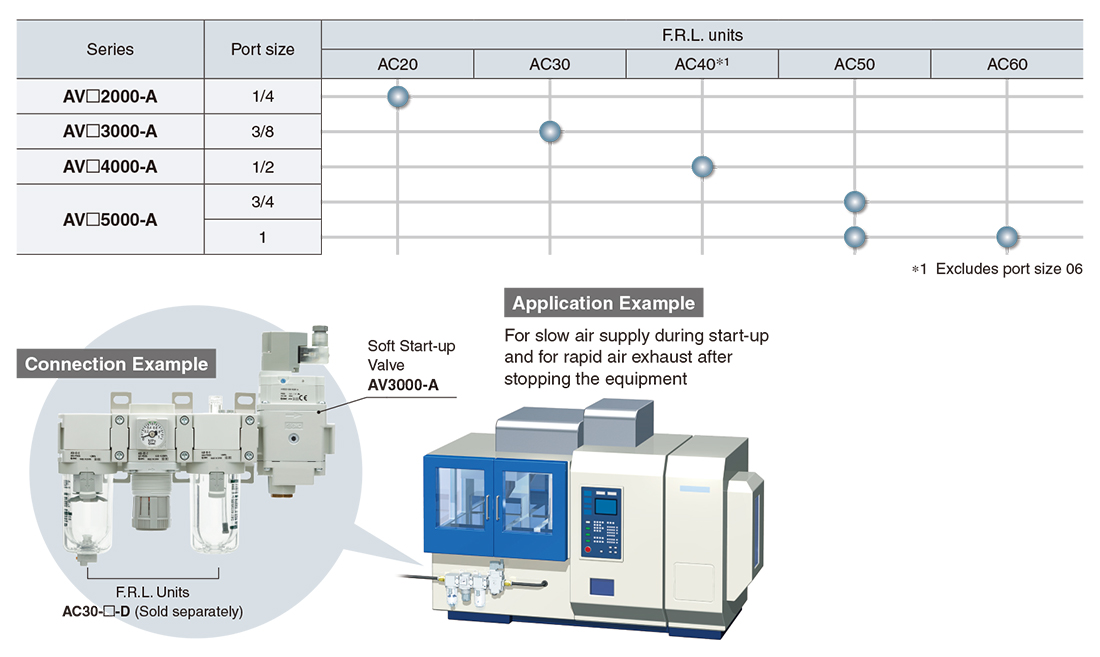

Combination with F.R.L. Unit

Simple Specials System

This product can be integrated into an F.R.L. unit through the simple special ordering system. The lead time is almost the same as that of the standard product.
Please contact your local sales representative for more details.
