WEB Catalog

Product Information ?  WEB Catalog  ? Switches/Sensors/Controller  ? Electronic Flow Switches/Sensors

Electronic Flow Switches/Sensors

3-Color Display Digital Flow Switch PF2MC7□（-L）

    ?Dry air, N2
    ?3-color/3-screen display

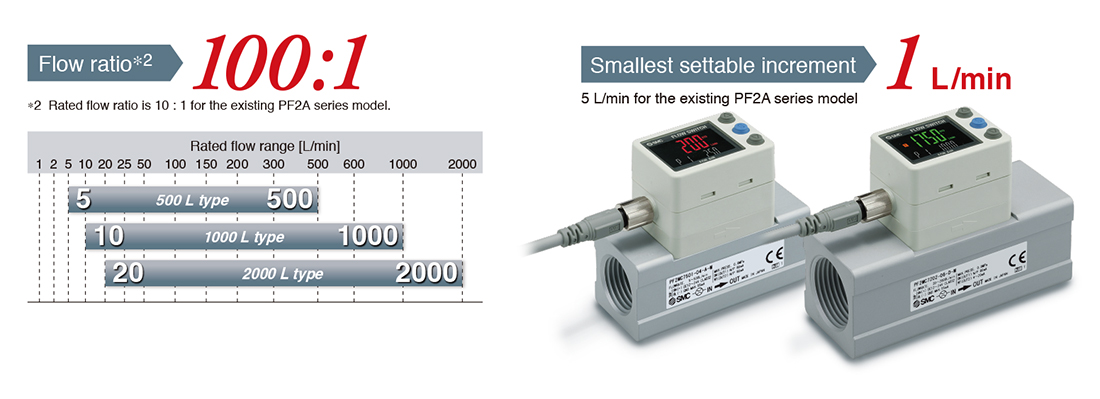

    ?A wide range of flow measurement is possible with 1 product.
    　Flow ratio 100:1, Smallest settable increment: 1 L/min
    ?Grease-free
    ?IO-Link compatible

    　?IO-Link Master
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
  • 3-Color Display Digital Flow Switch PF2MC7□（-L）
    Manual
    Series View search result
    PF2MCView search result
SeriesRated flow range (L/min)
PF2MC5 to 500
10 to 1000
20 to 2000

Features

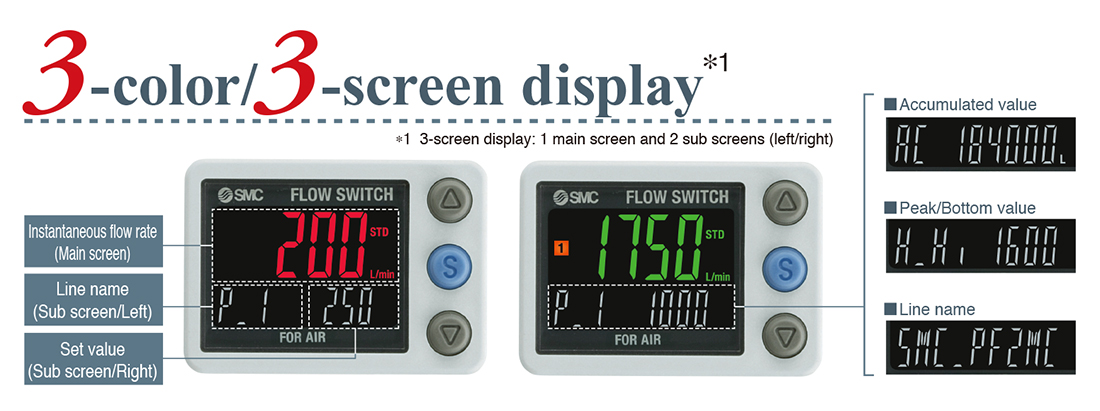

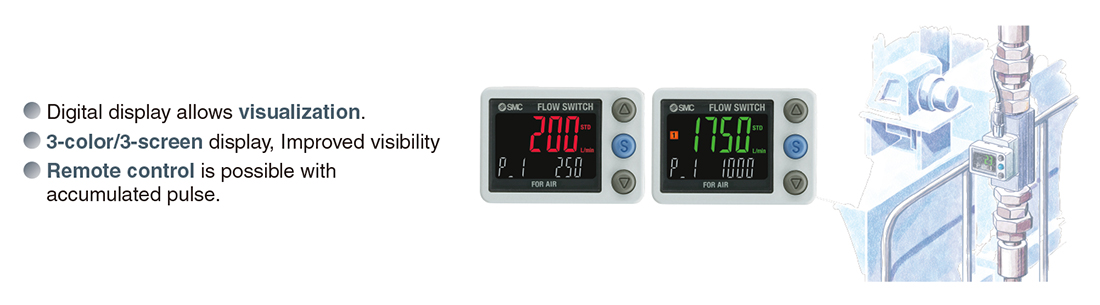

3-color/3-screen display

Expanded flow range

A wide range of flow measurement is possible with 1 product.

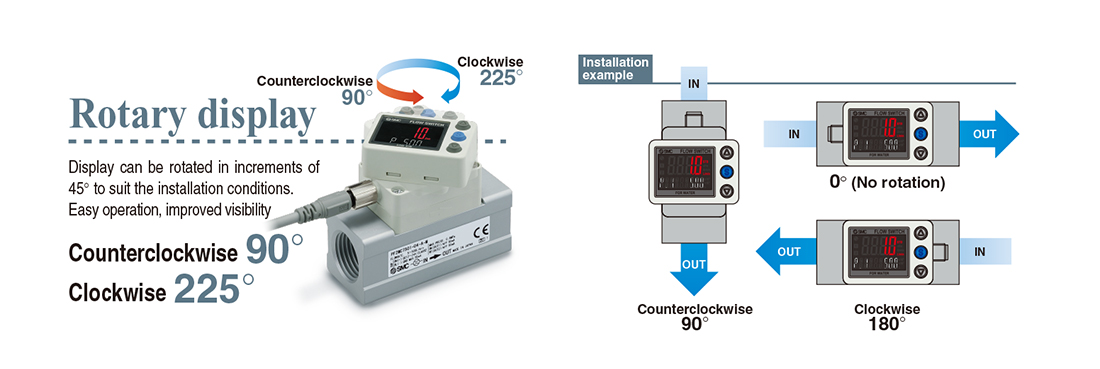

Rotary display

Display can be rotated in increments of 45° to suit the installation conditions. Easy operation, improved visibility

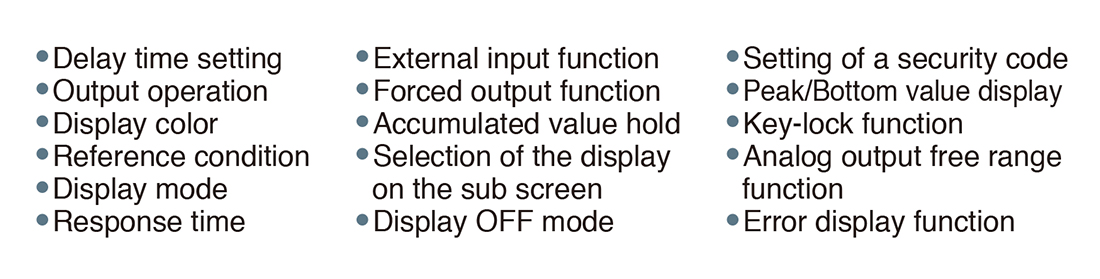

Functions

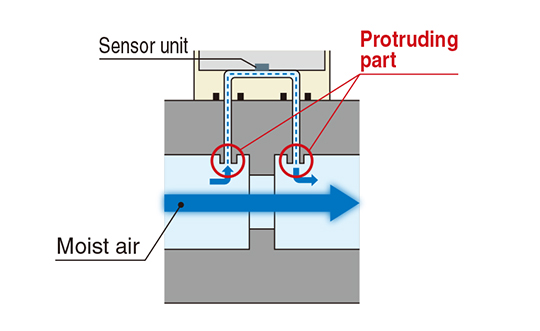

  • Bypass structure

    Bypass structure with protruding part at the main piping, reduces the contact of moist air with the sensor, reducing degradation of the sensor and maintaining accuracy.

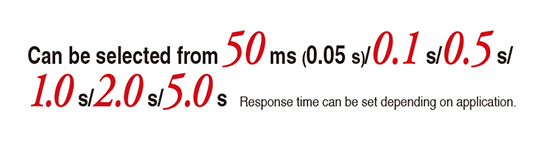

  • Response time (Digital filter)

  • Grease-free

  • NPN/PNP switch function

    The number of stock items can be reduced.

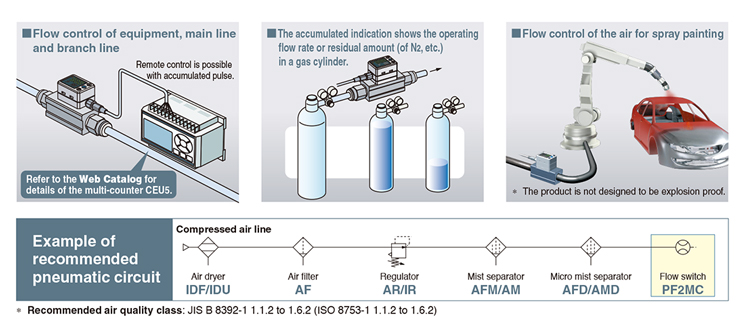

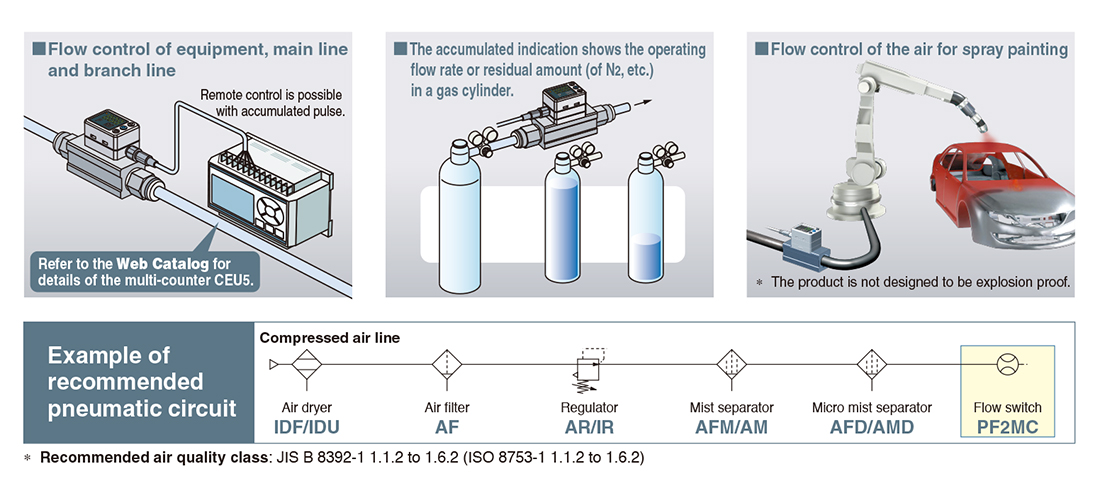

Applications

Select a digital flow switch to increase energy savings!

Flow control is necessary for promoting energy saving in any application.
Saving energy starts from numerical control of the flow consumption of equipment and lines and clarification of the purpose and effect.

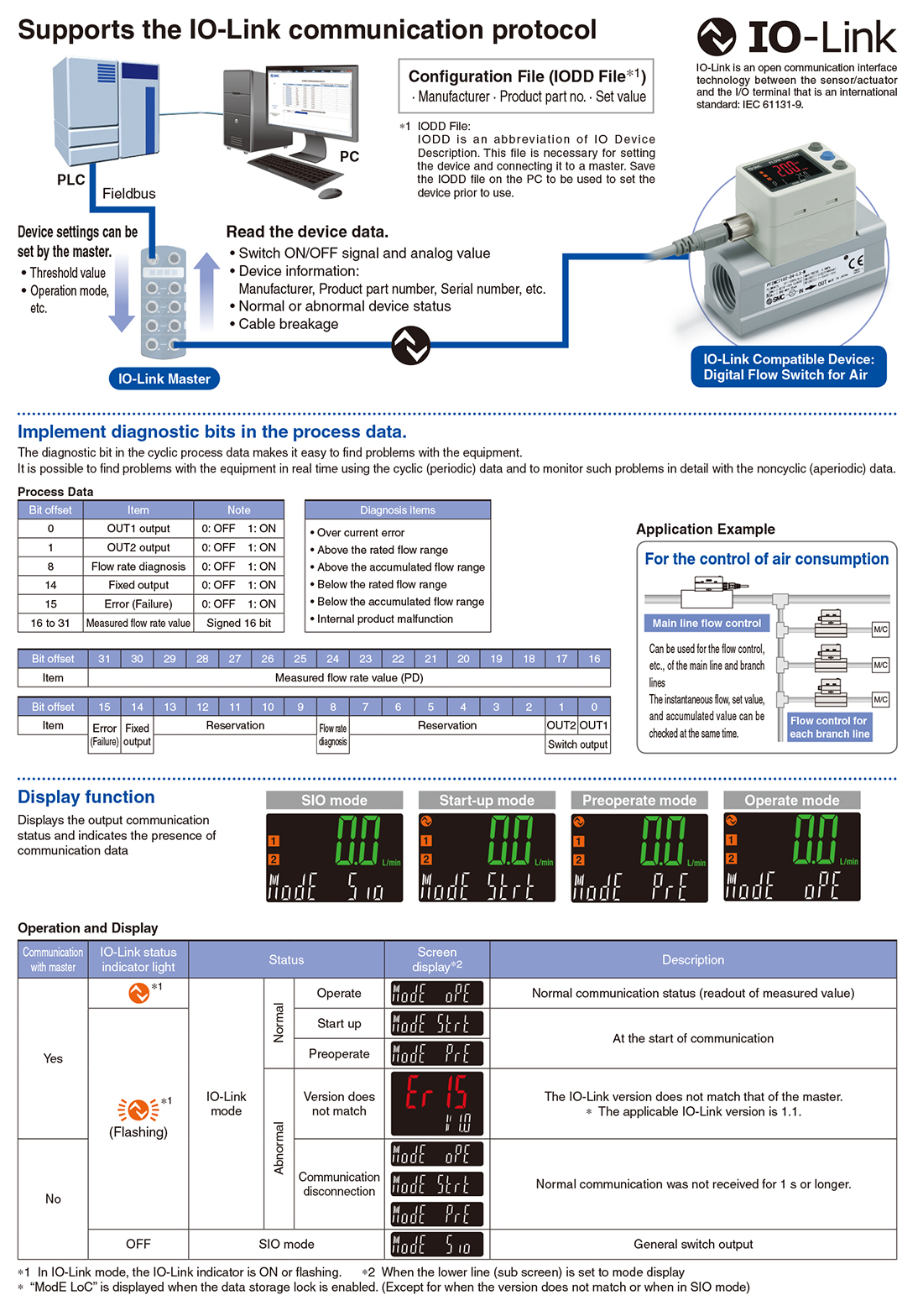

IO-Link Compatible PF2MC7□-□□-L□-□□□

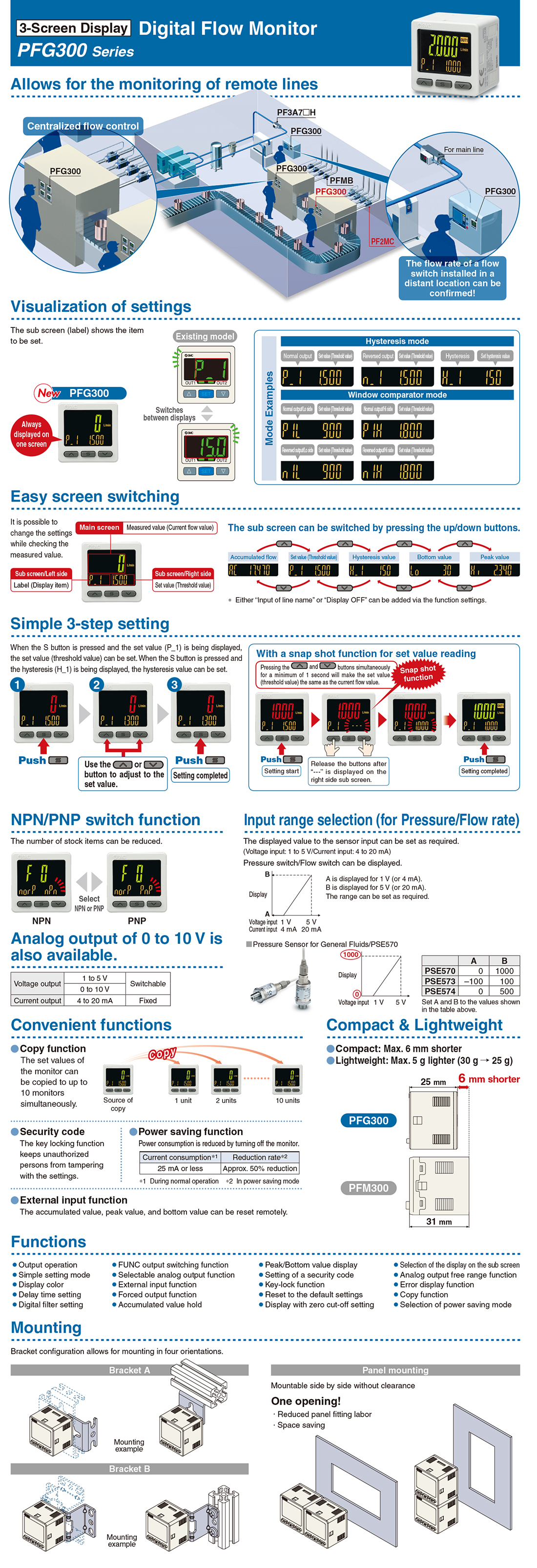

3-Screen Display Digital Flow Monitor PFG300 Series

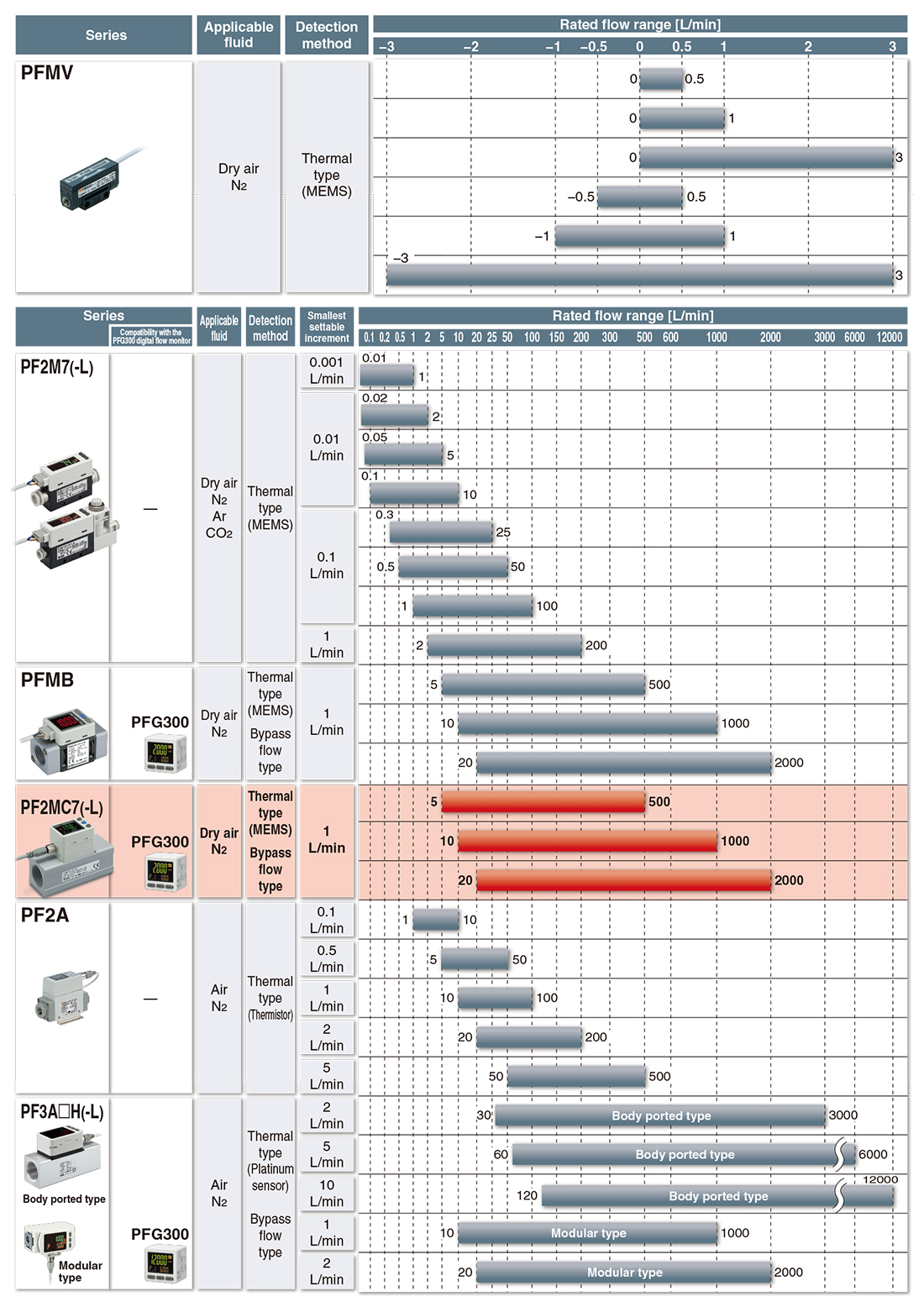

Flow Switch Flow Rate Variations

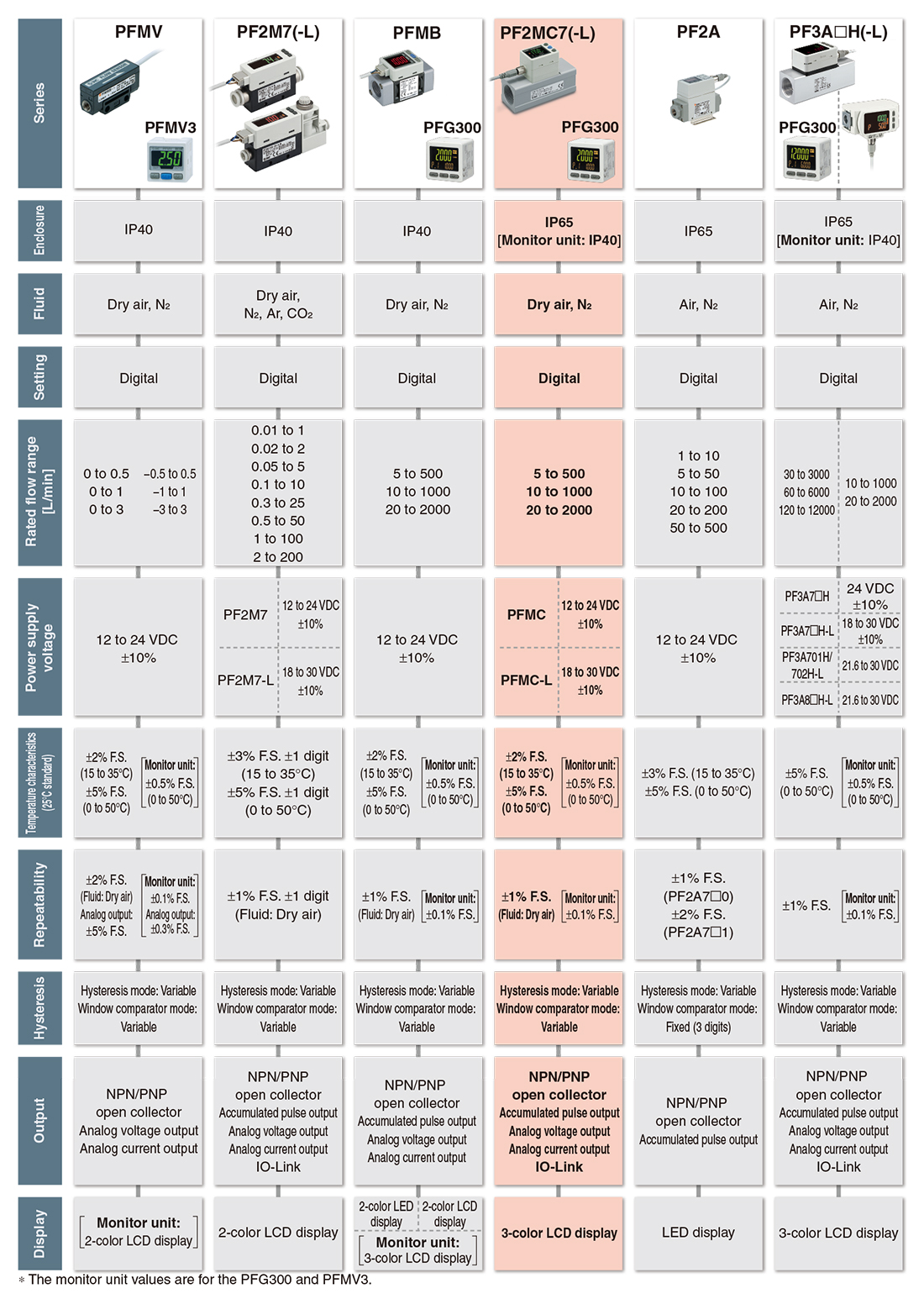

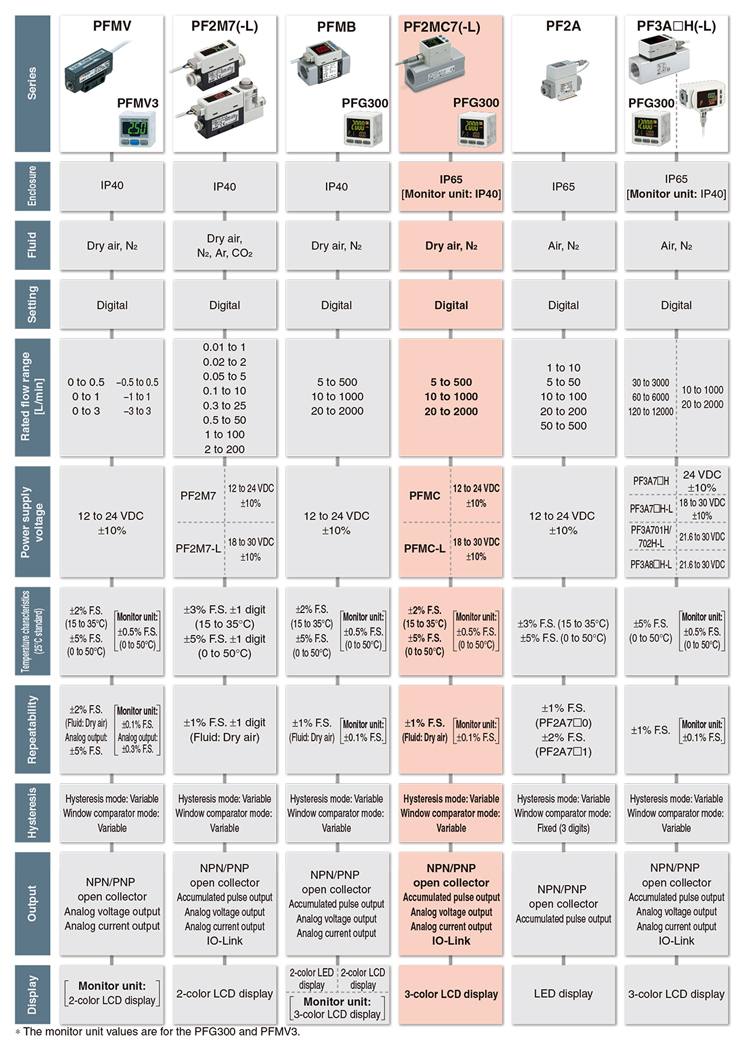

Flow Switch Variations / Basic Performance Table
