WEB Catalog

Product Information ?  WEB Catalog  ? IO-Link Compatible Products  ? Pressure Switches

Pressure Switches

3-Screen Display Digital Gap Checker/IO-Link Compatible ISA3-L

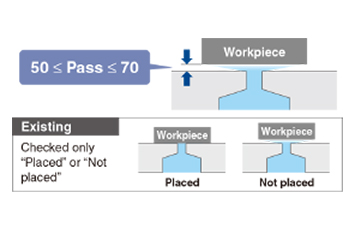

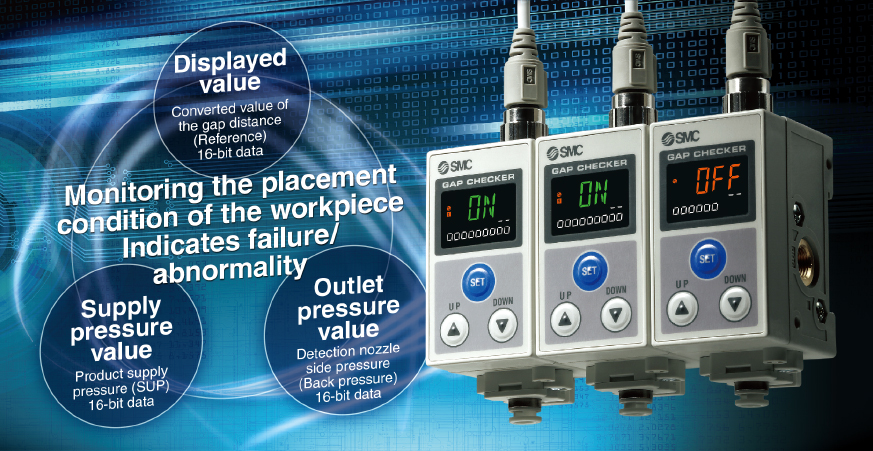

    ?Monitoring the placement condition of the workpiece Indicates failure/abnormality
    ?Double sensor providing improved preventive and predictive maintenance (IoT) based on IO-Link
    　Process data provides Displayed value, Outlet pressure, and Supply pressure value.
    ?NPN/PNP switch function
    ?3-screen display (Setting)
    ?Window comparator type
    ?Zero cut-off range can be changed.

    　?IO-Link Master
SeriesRated distance rangePiping specifications: Supply sidePiping specifications: Detection side
ISA3-F□L0.01 to 0.03 mmRc, G 1/8φ4, φ6 One-touch fitting, G 1/8
ISA3-G□L0.02 to 0.15 mmRc, G 1/8φ4, φ6 One-touch fitting, G 1/8
ISA3-H□L0.05 to 0.30 mmRc, G 1/8φ4, φ6 One-touch fitting, G 1/8

Features

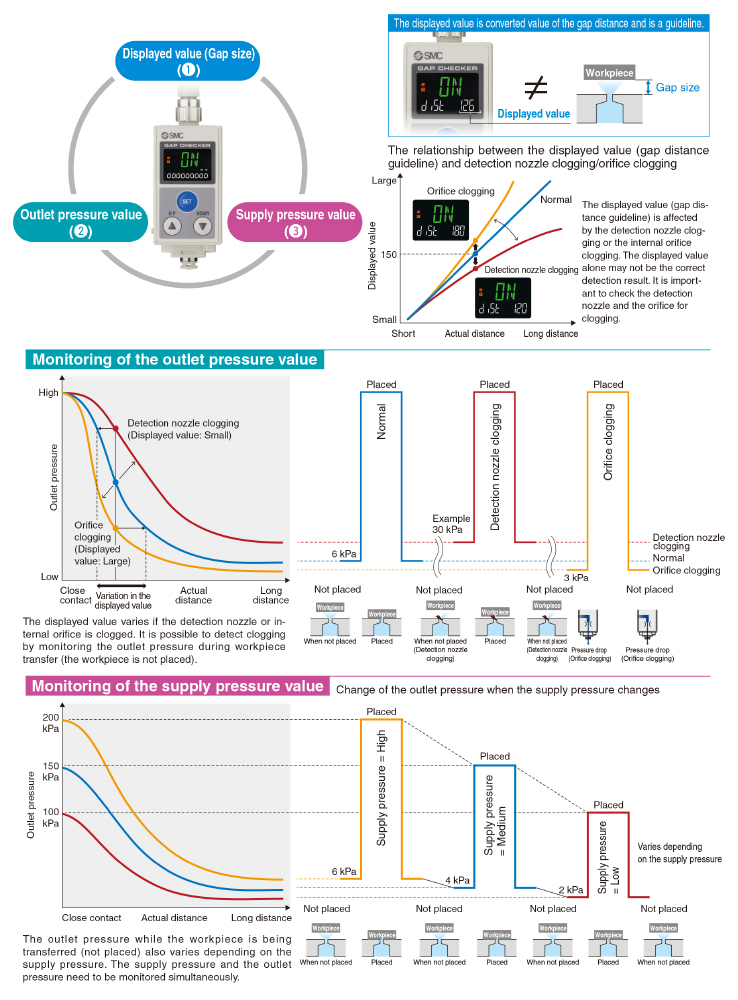

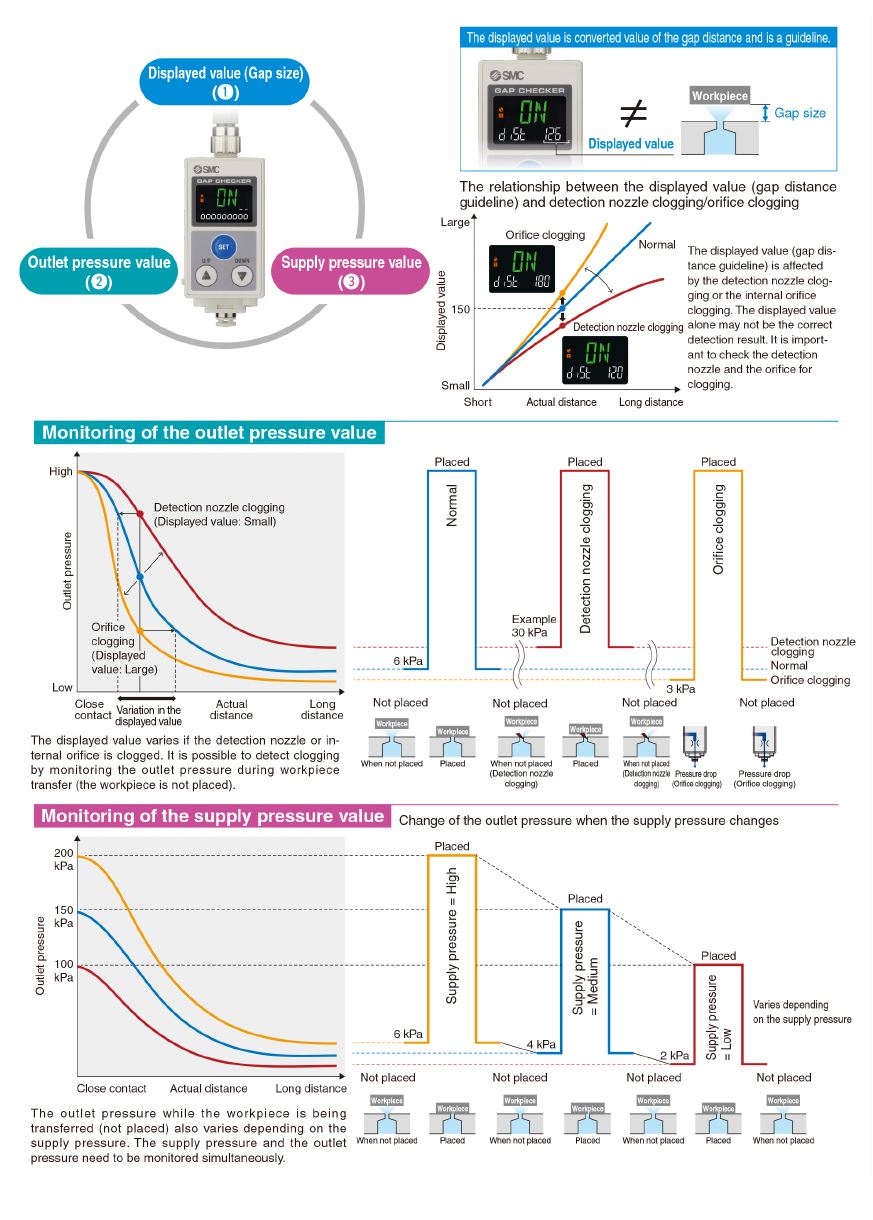

Monitoring the placement condition of the workpiece Indic ate s failure / abnormality

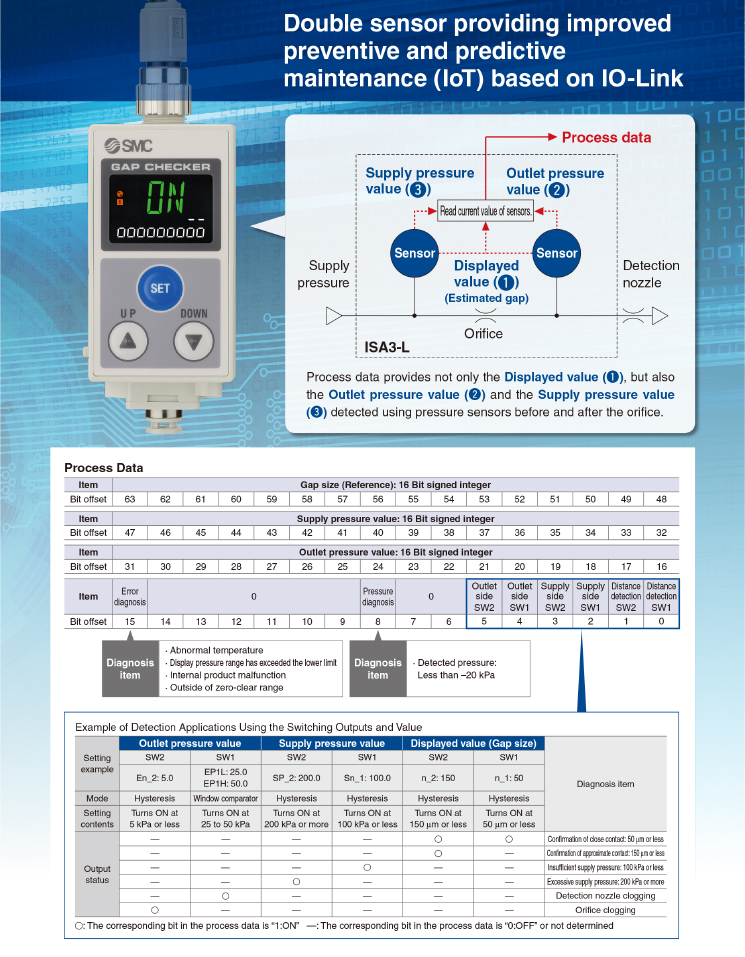

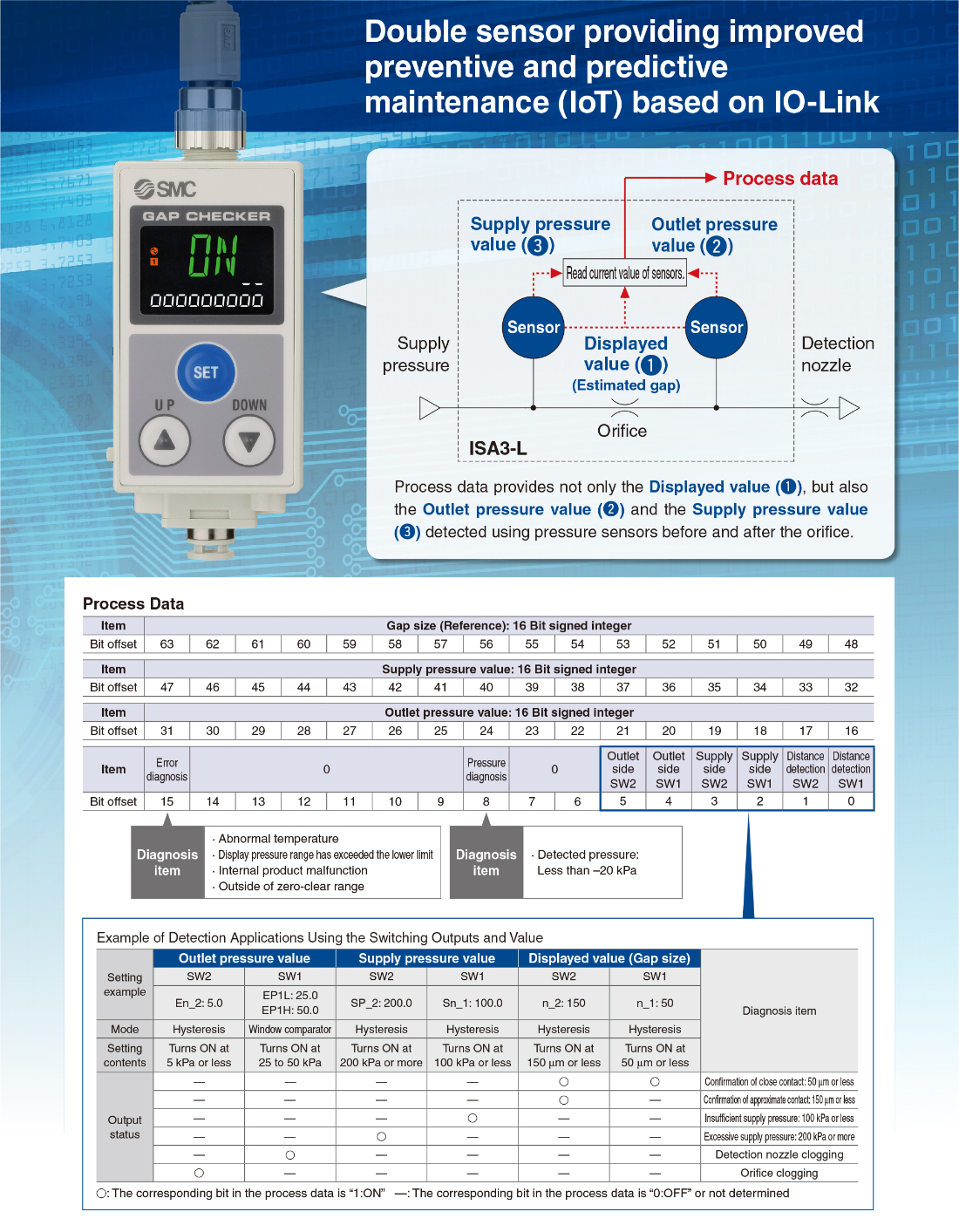

Double sensor providing improved preventive and predictive maintenance (IoT) based on IO-Link

Process data provides Displayed value , Outlet pressure and Supply pressure value .


Not only the displayed value, but also the pressure value (supply pressure, outlet pressure) which affect the detection can be transmitted in real time

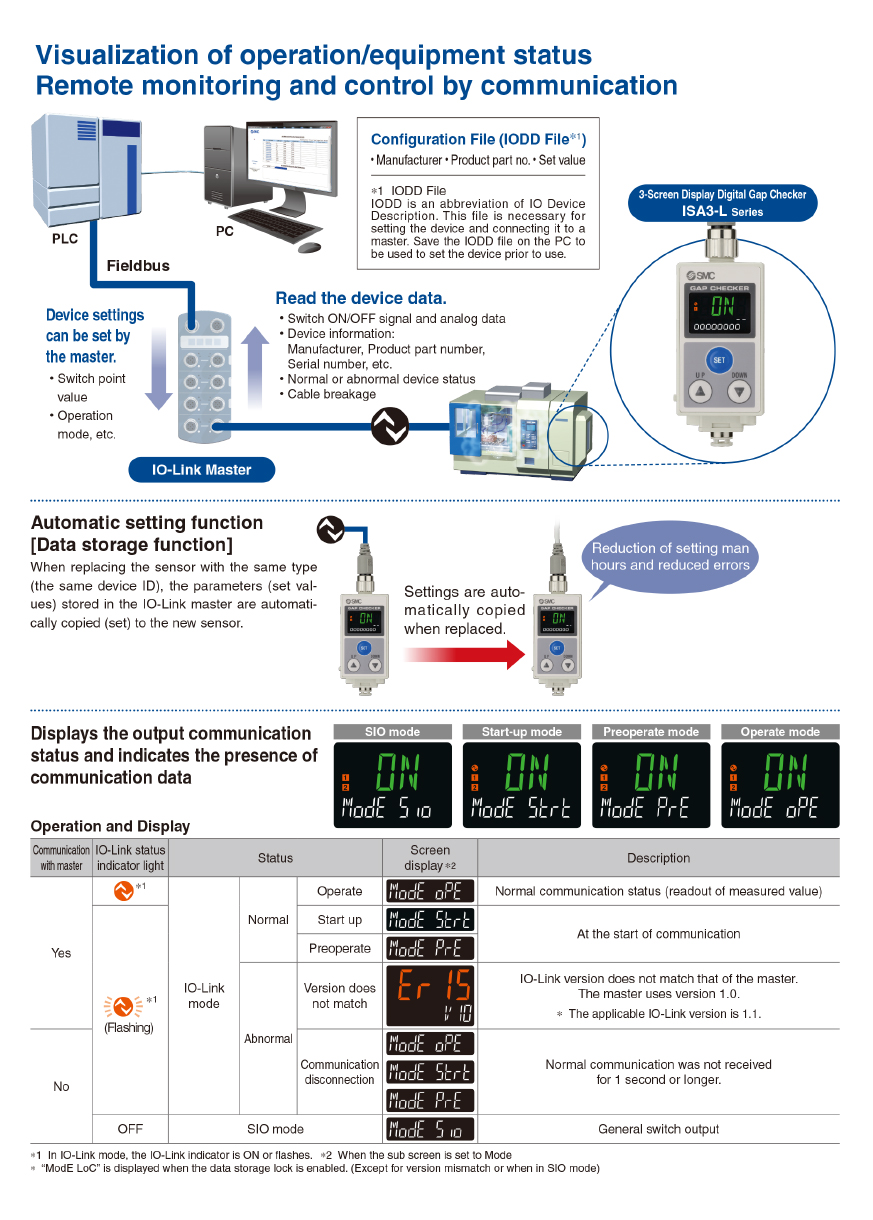

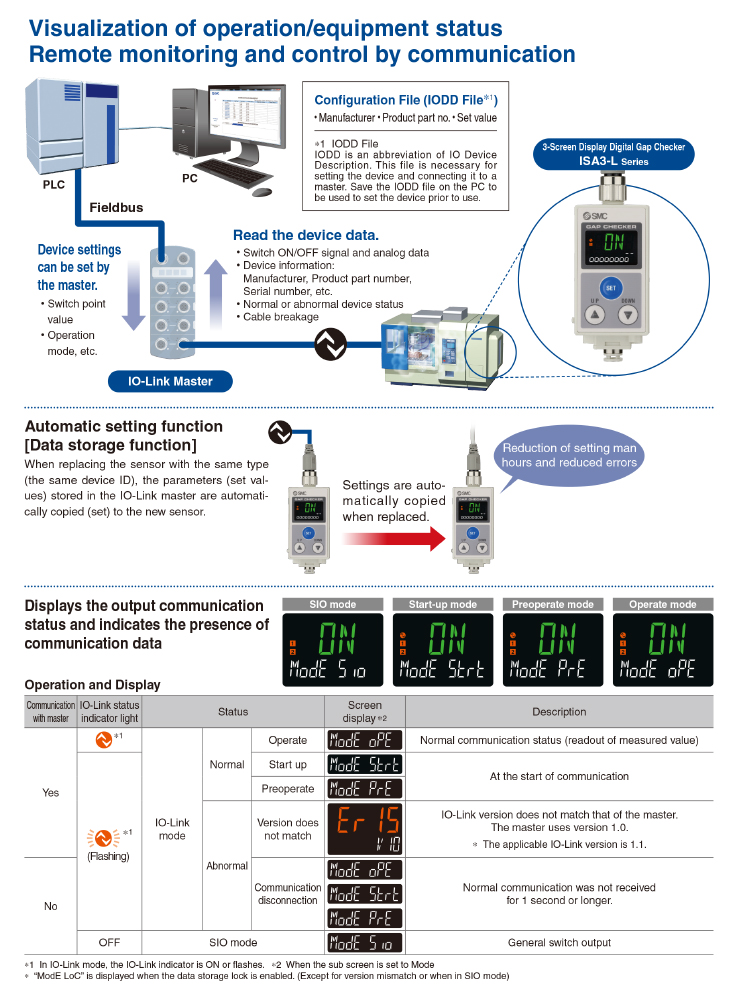

IO-Link

IO-Link is an open communication interface technology between the sensor/actuator and the I/O terminal that is an international standard, IEC61131-9.

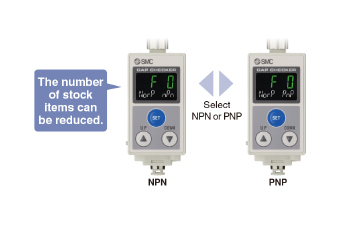

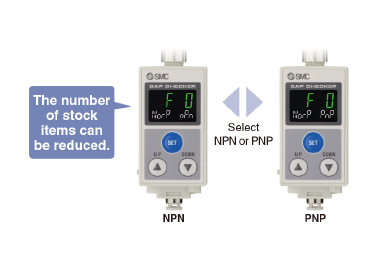

  • NPN/PNP Switch Function

    Both NPN and PNP are available.

  • 3-Screen Display (Setting)

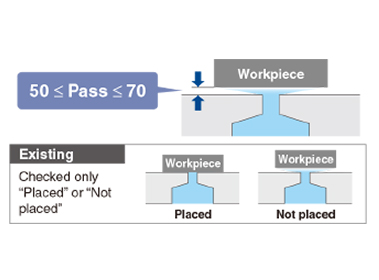

  • Window Comparator Type

    The gap range is adjustable.

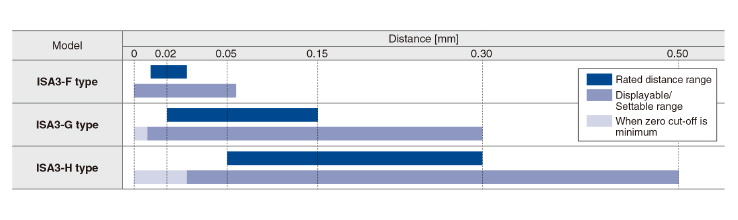

  • Zero cut-off range can be changed.

    The lower limit of the display/setting range has been extended.

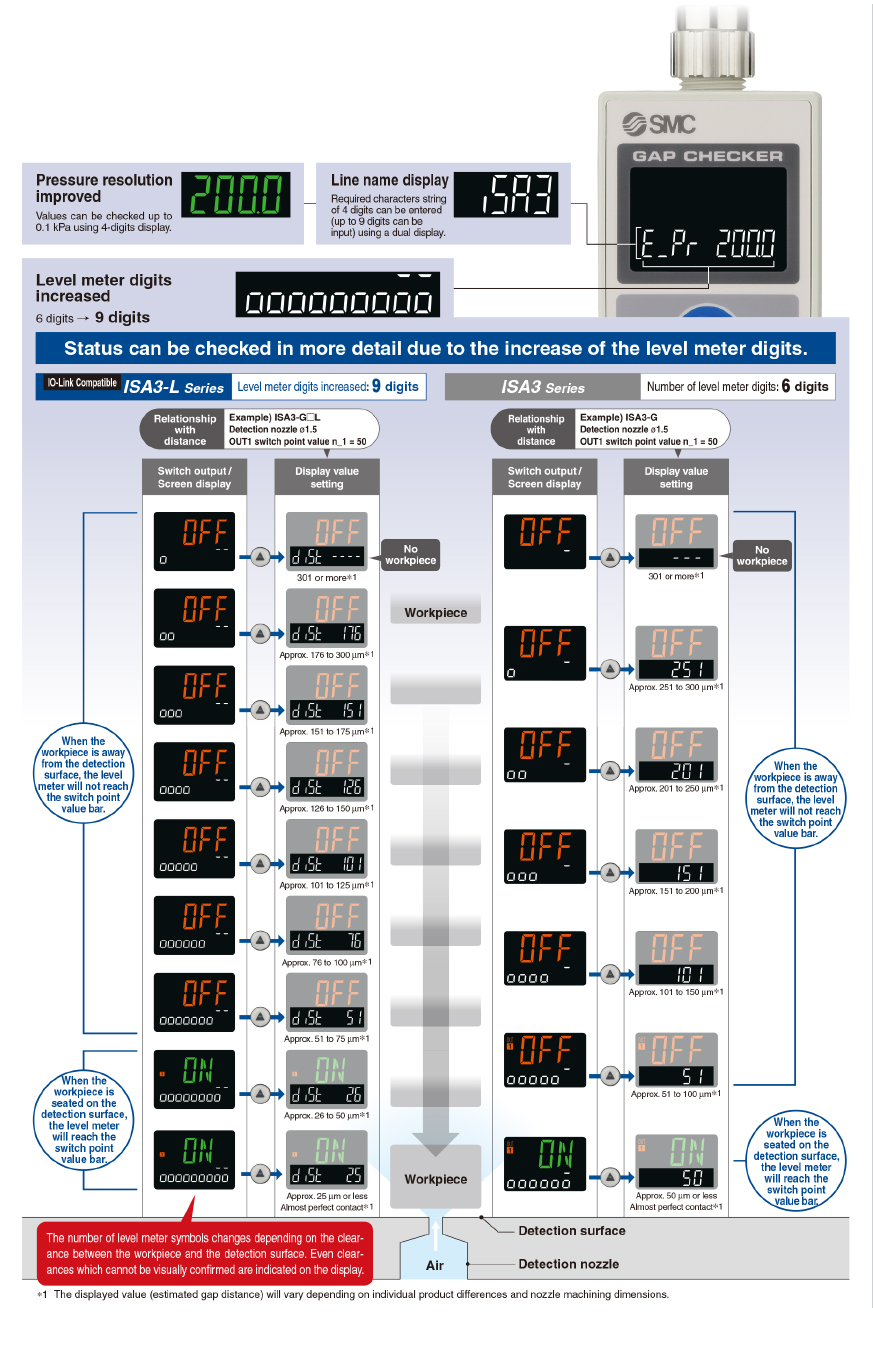

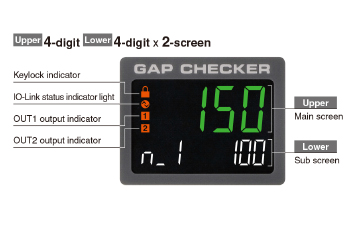

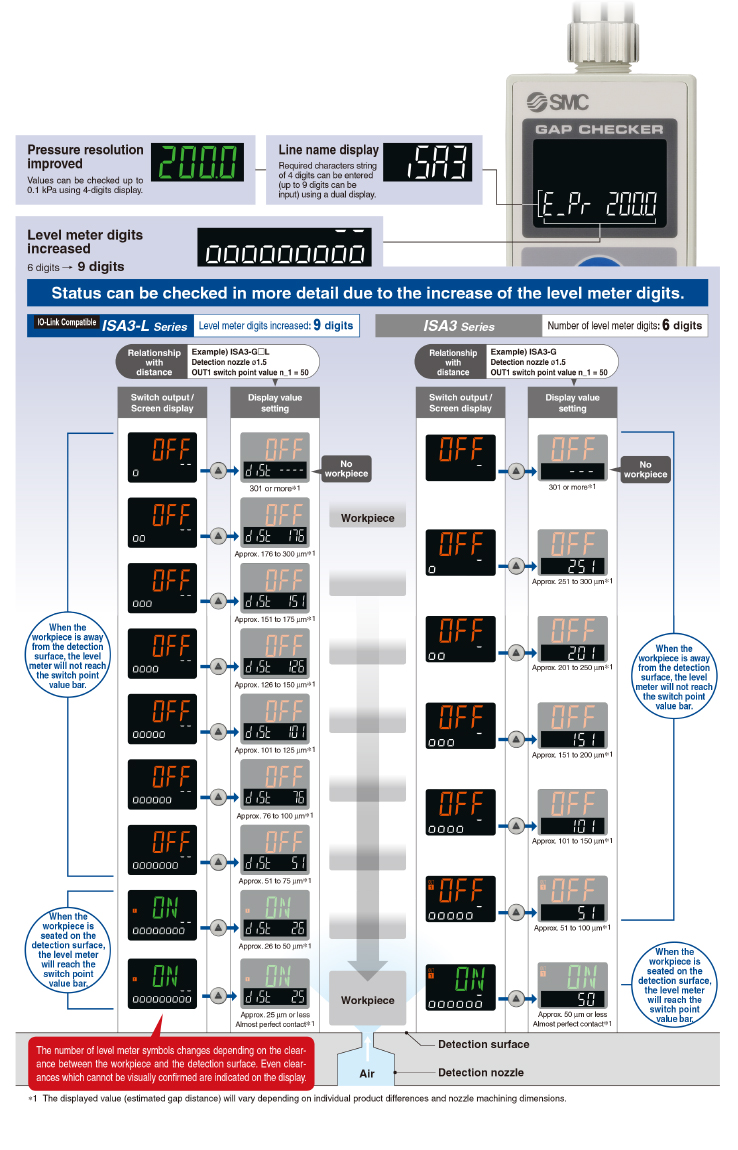

Sub display improved for ease of use

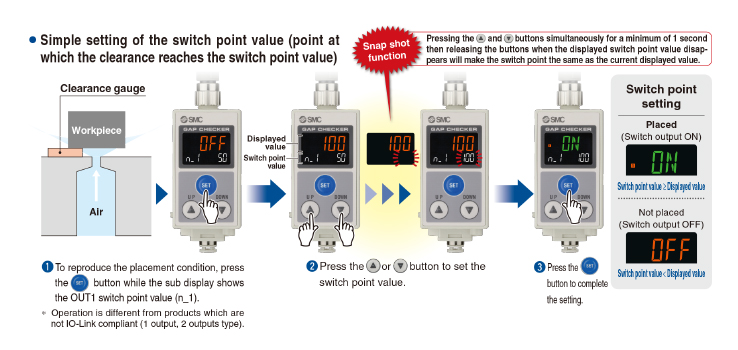

3-Step Setting (Switch Point Change Mode)

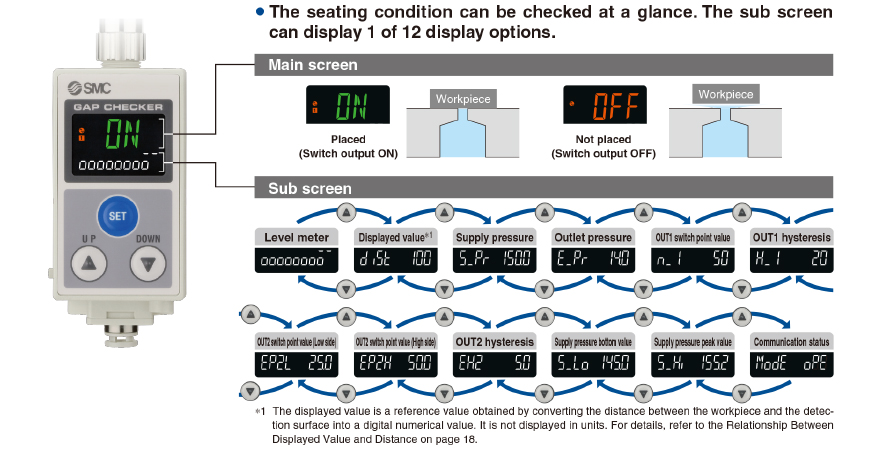

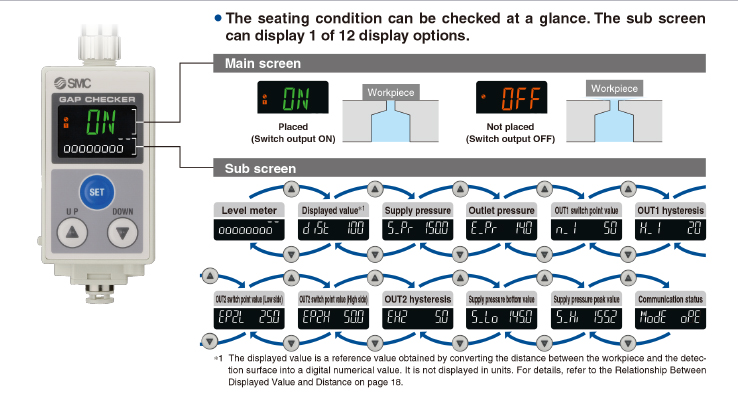

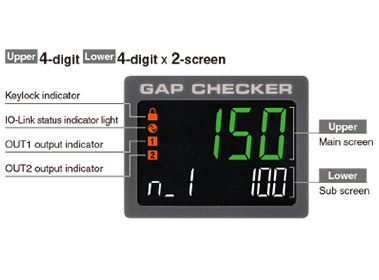

3-Screen Digital Display

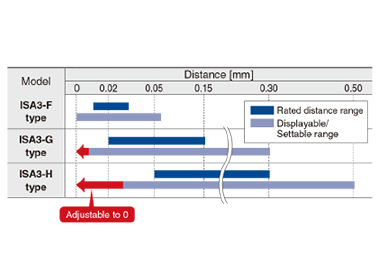

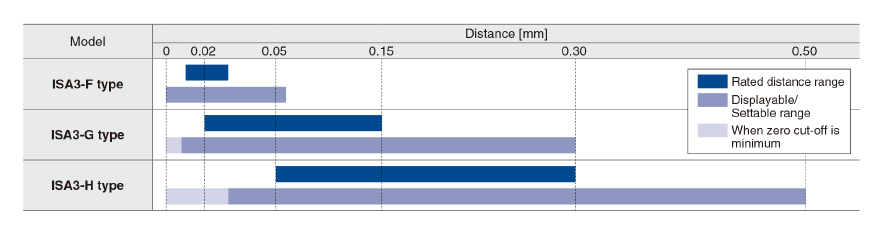

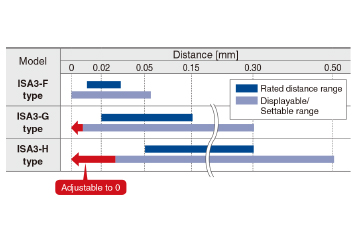

Rated Distance Range: 3 types are available.

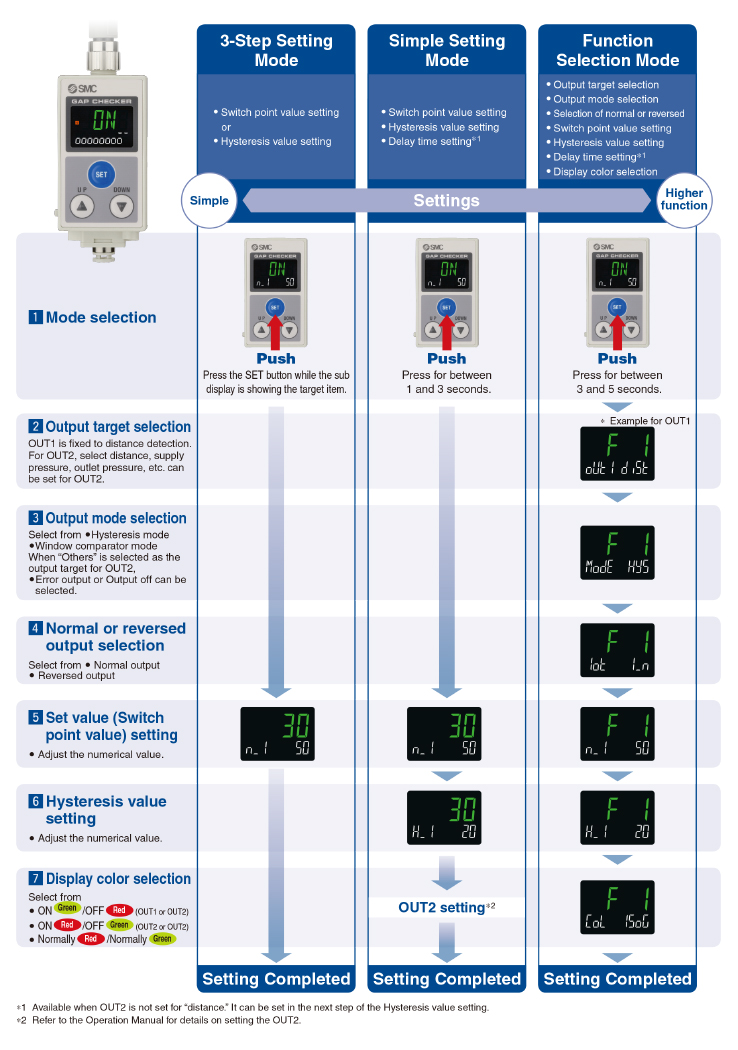

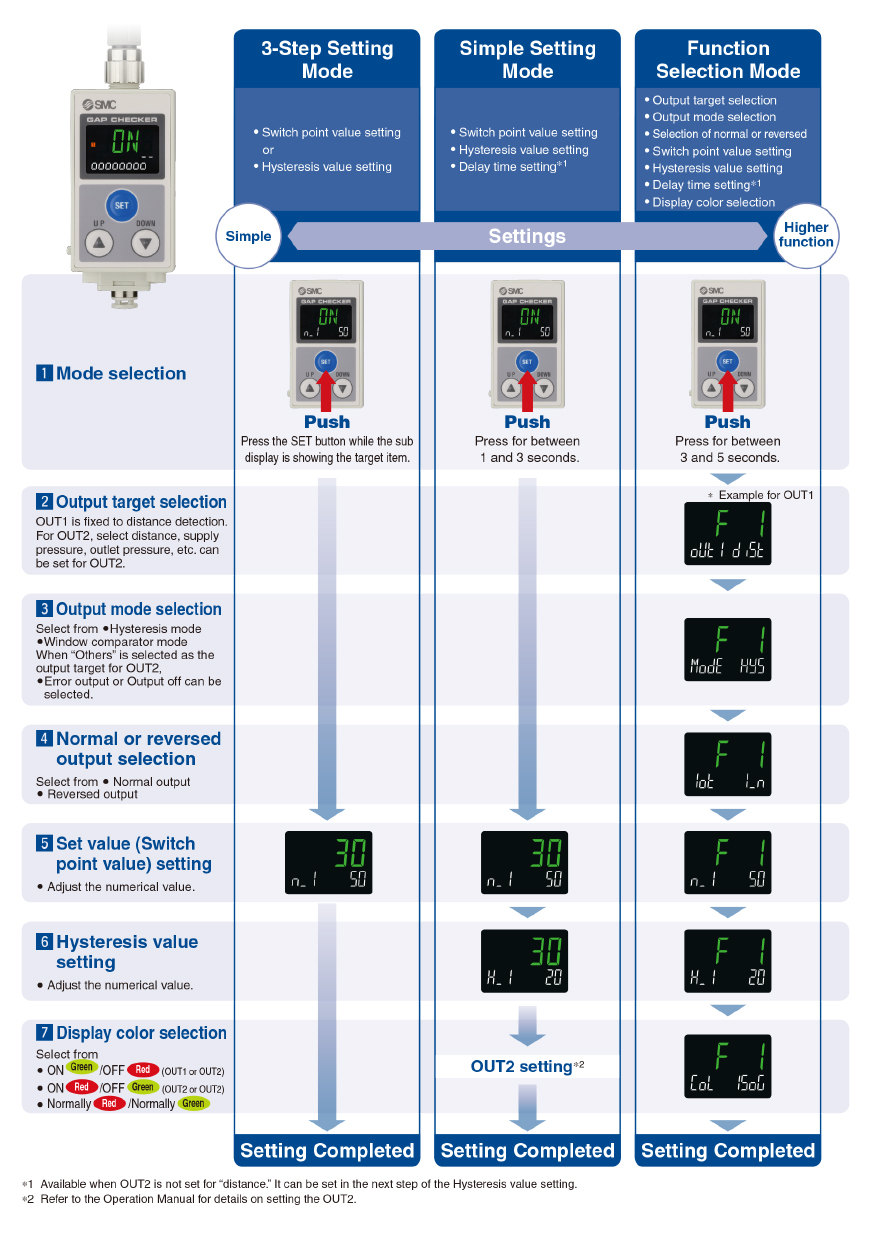

3 Setting Modes

Select the setting mode that best meets your needs.

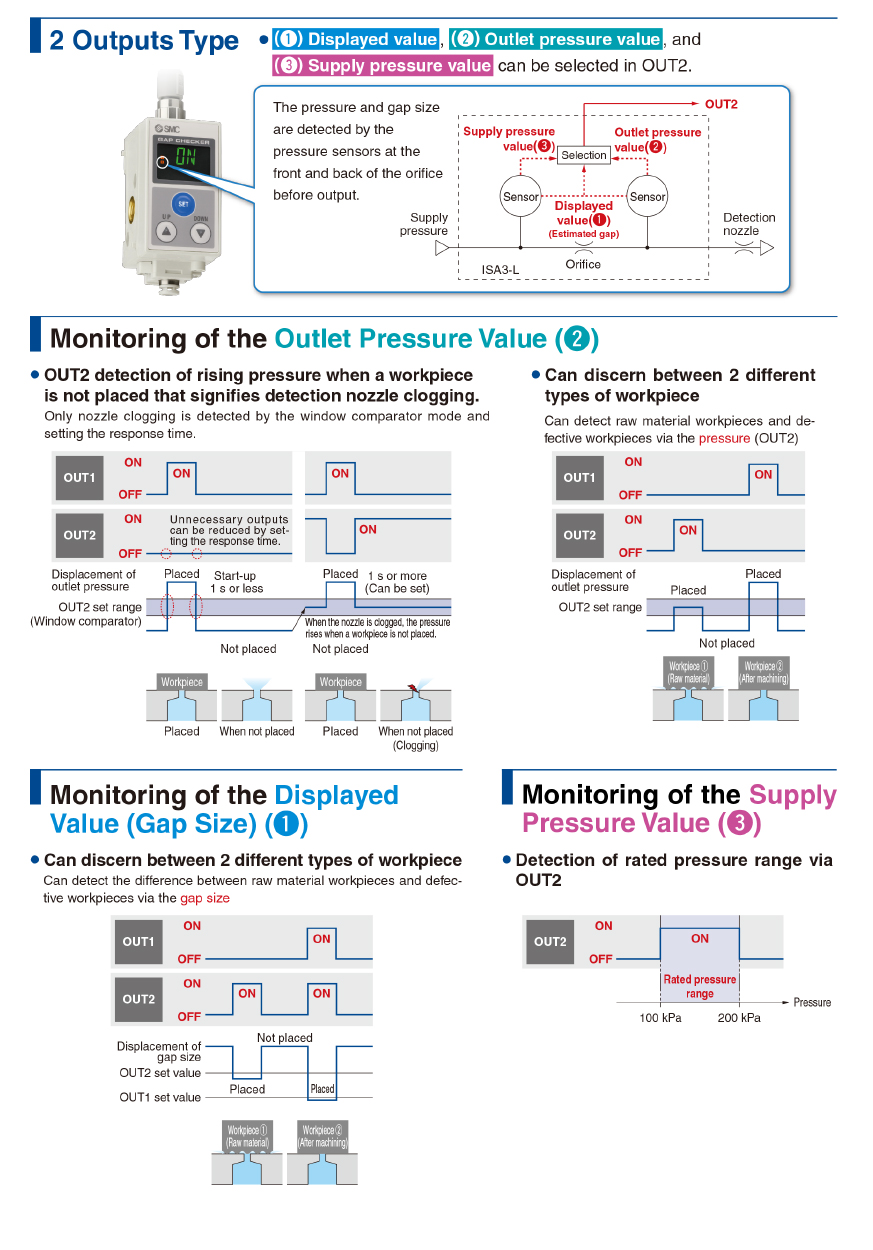

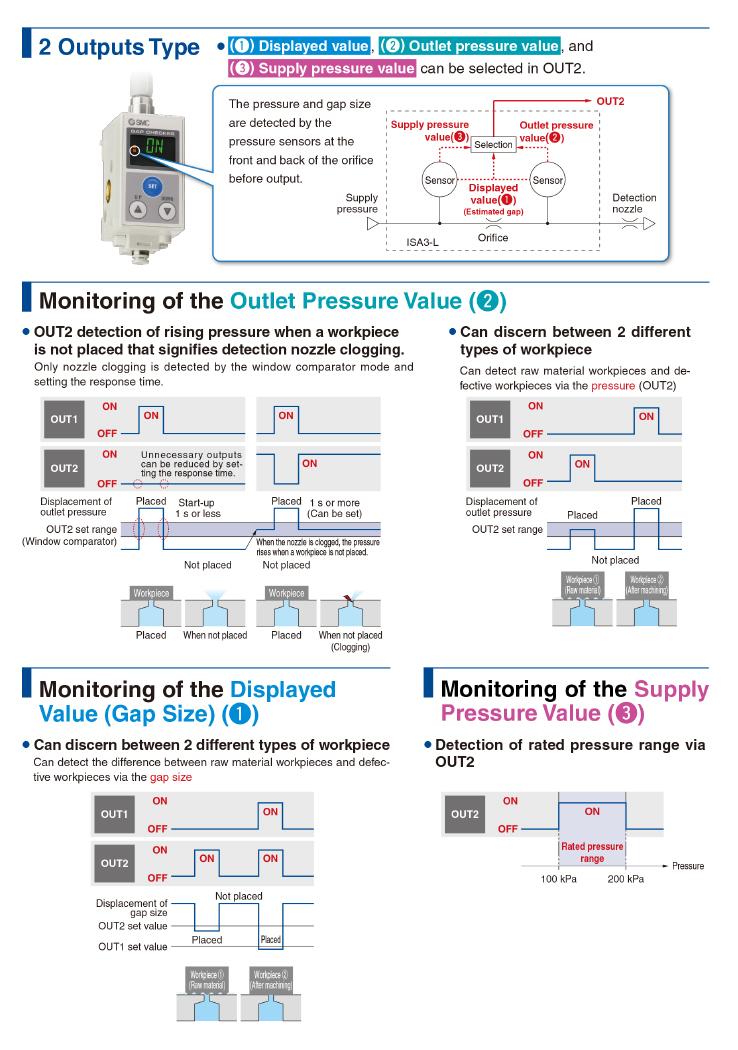

2 Outputs Type

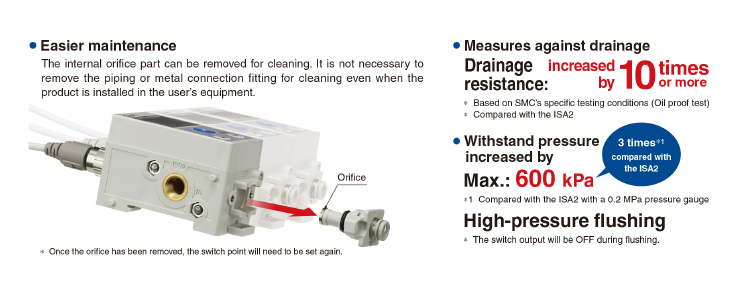

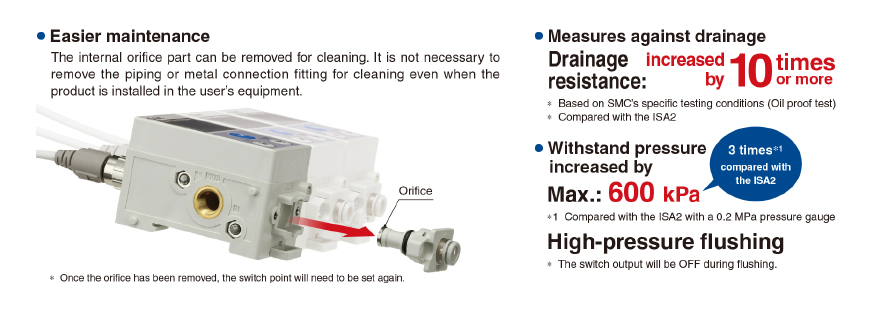

Improved Environmental Resistance

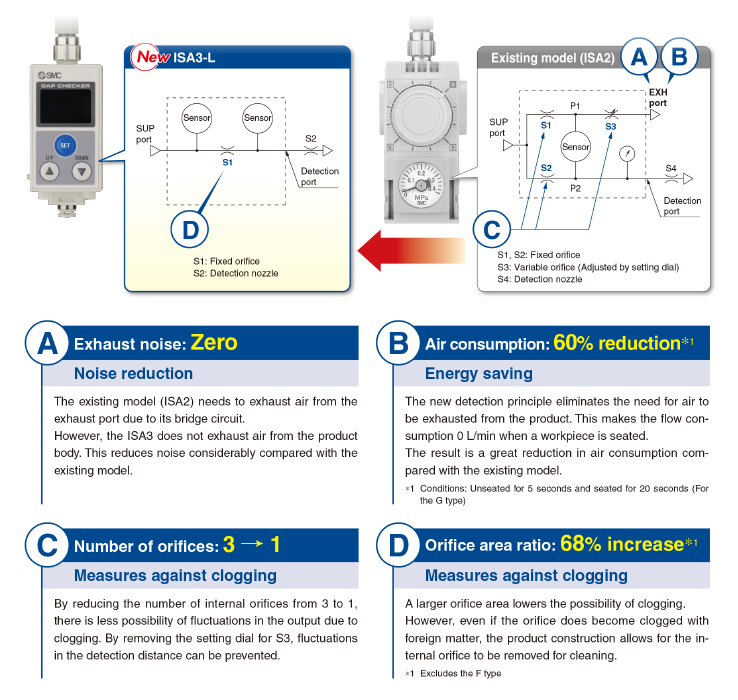

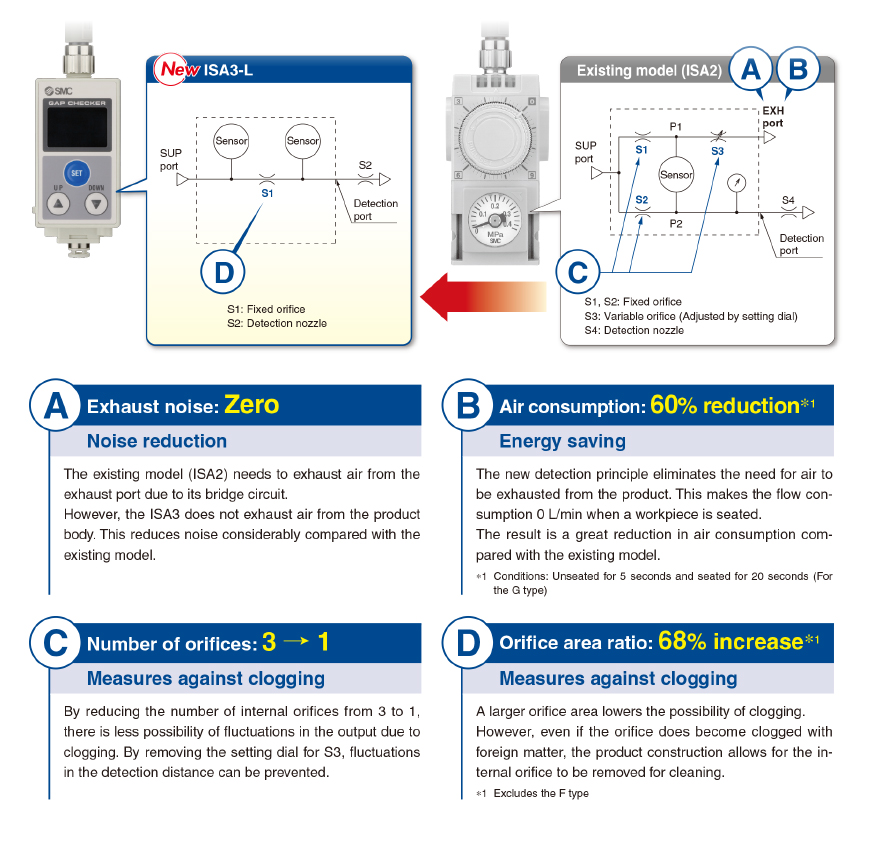

Noise reduction, Energy saving, Measures against clogging

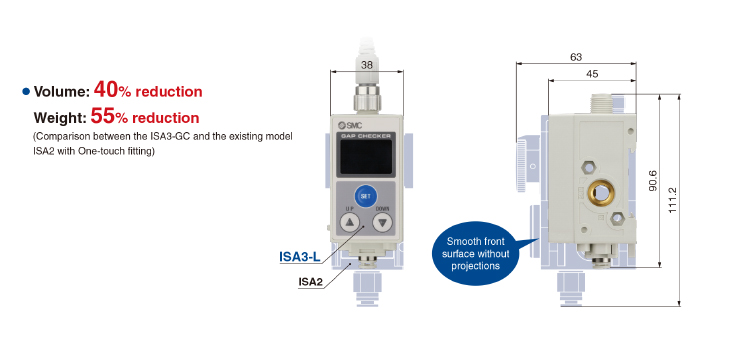

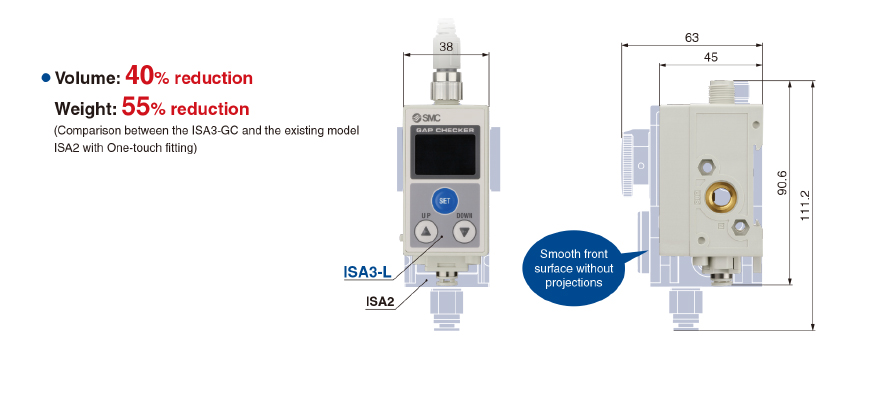

Compact & Lightweight

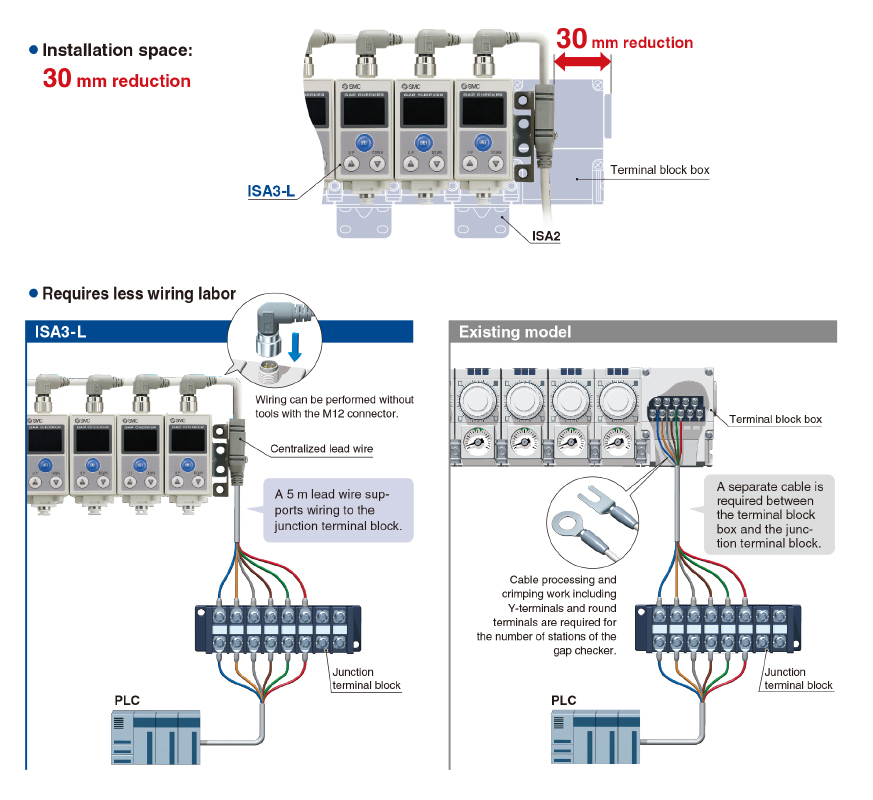

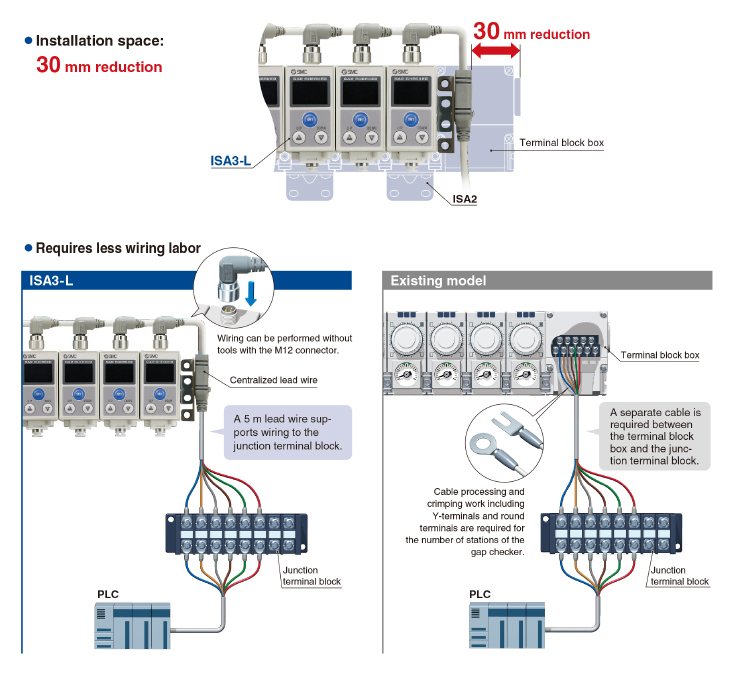

Space saving and man-hour reduction by centralized lead wires

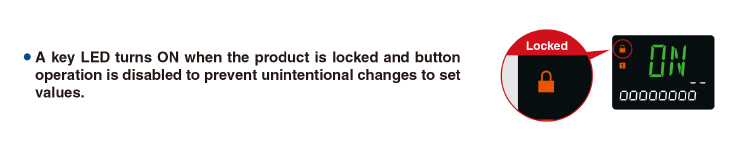

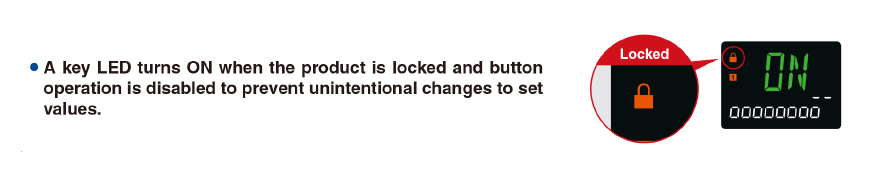

Keylock Function

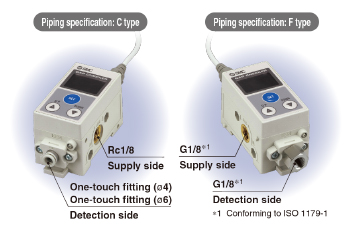

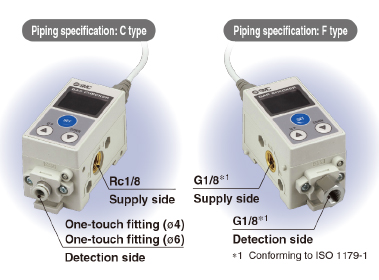

  • Piping Variations

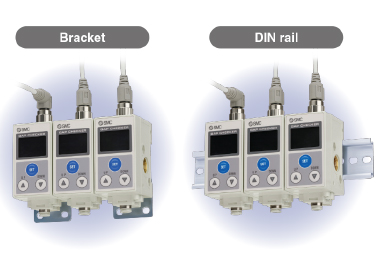

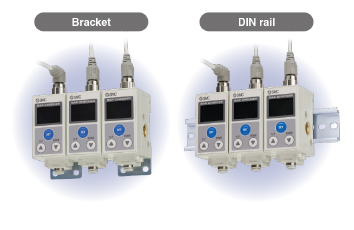

  • Mounting

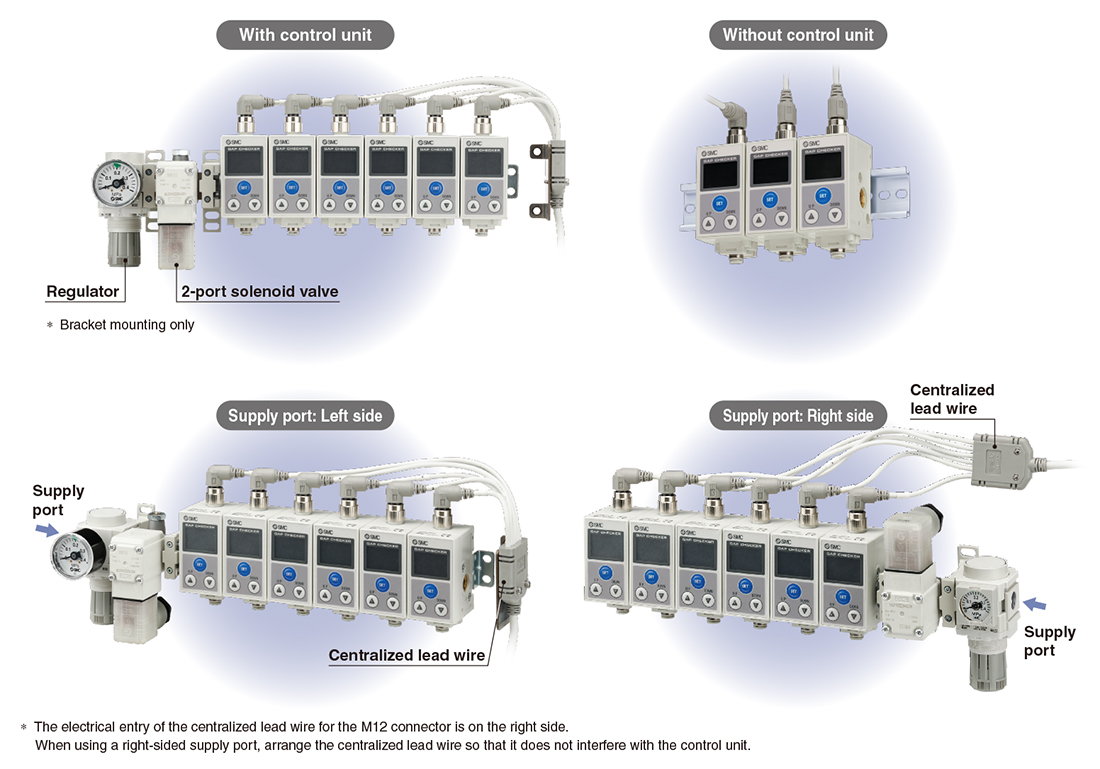

Manifold

Application Examples

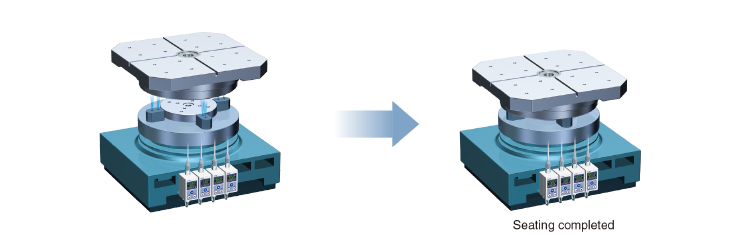

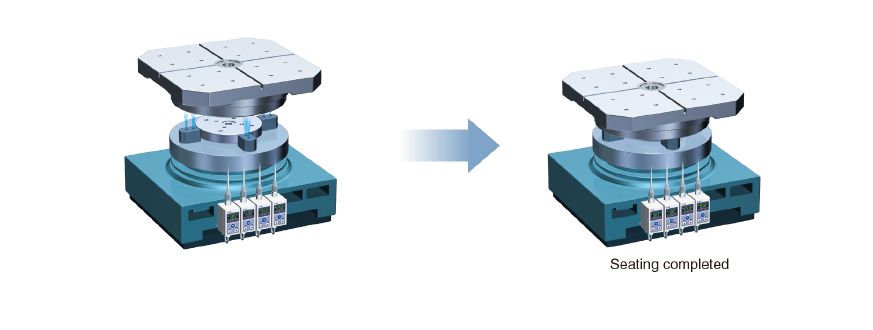

Detection of the table and pallet seating

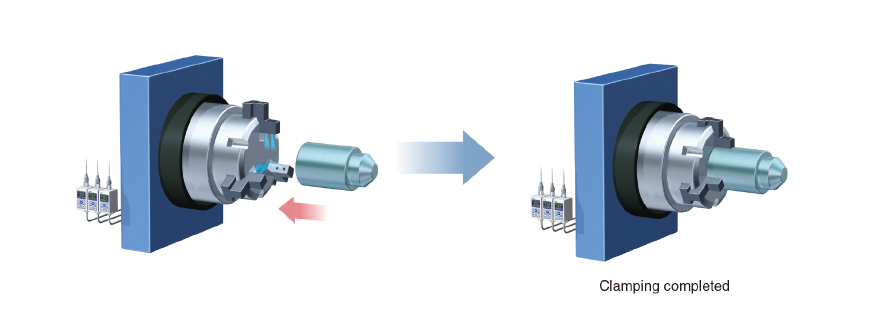

Workpiece clamp detection

Main Functions
