WEB Catalog

Product Information ?  WEB Catalog  ? Industrial Device Communication Equipment/Wireless System  ? Other: RS232C Compatible Products

Other: RS232C Compatible Products

Thermo-chiller/Inverter Type HRSH090

    ?Power consumption reduced by 53%
    　Complete with energy-saving triple inverter!
    ?Cooling capacity: 9.5 kW (Air-cooled), 11.0 kW (Water-cooled)
    ?Temperature stability: ±0.1°C
    ?Set temperature range: 5°C to 40°C
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
  • Thermo-chiller/Inverter Type HRSH090
    Manual
    Series View search result
    HRSH090View search result
SeriesSet temperature
range		Cooling
capacity		Temperature
stability		Cooling methodCirculating fluid
HRSH0905 to 40℃9.5 kW±0.1℃Air-cooled refrigeration
Water-cooled refrigeration		Tap water
Deionized water
Ethylene glycol aqueous solution (15%)

Features

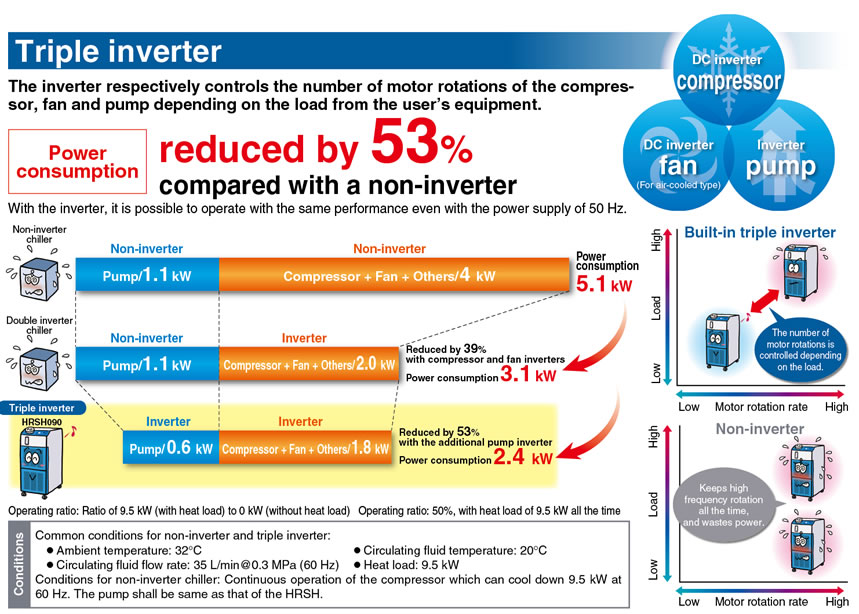

■Power consumption reduced by 53%

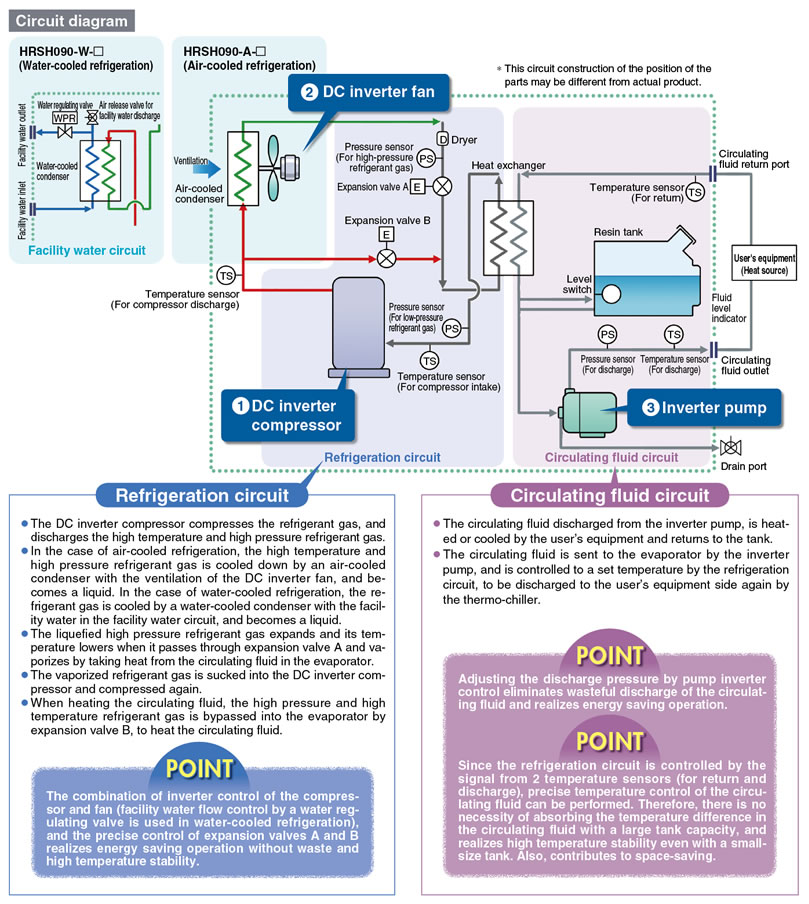

Outstanding energy saving effect with the triple inverter!
The inverter respectively controls the number of motor rotations of the compressor, fan and pump depending on the load from the user’s equipment.

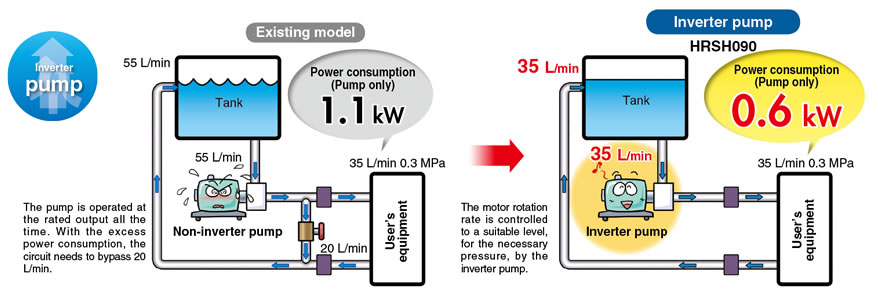

Power reducing effect of the inverter pump

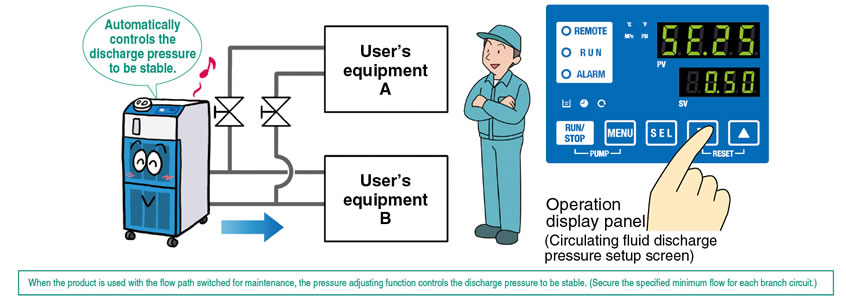

Circulating fluid pressure adjustable

Discharge pressure of the circulating fluid can be set with the operation panel. The inverter pump automatically controls the discharge pressure to the set pressure without adjusting the bypass piping under various piping conditions. Power consumption can be reduced by this control.
(Operation to the set pump operating frequency is also possible.)

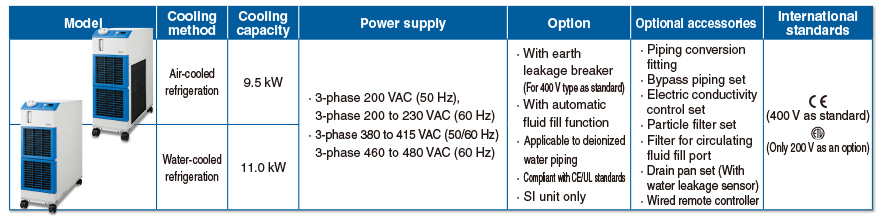

Variations

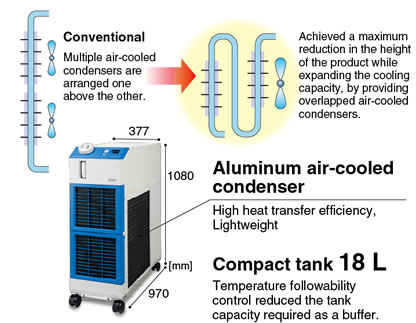

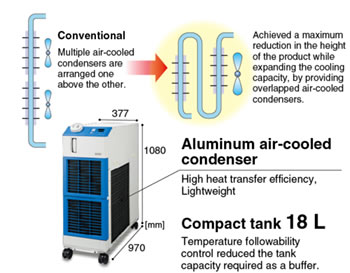

■Compact and lightweight 130 kg

Reduced-height double condenser structure

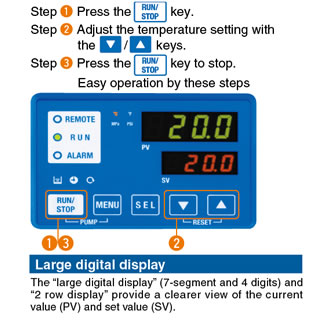

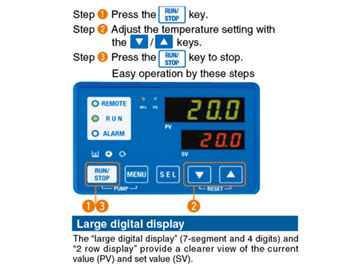

Simple operation

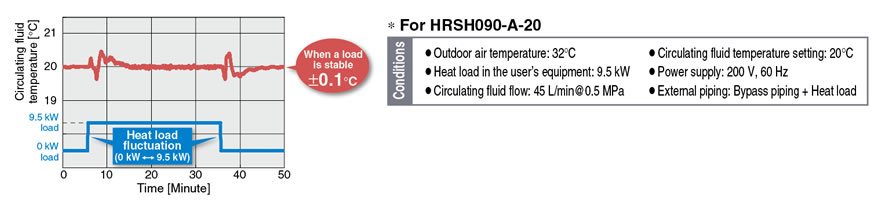

■Temperature stability ±0.1°C (when a load is stable)

By controlling the DC inverter compressor, DC inverter fan, and electronic expansion valve simultaneously, it maintains the good temperature stability when the heat load fluctuates.

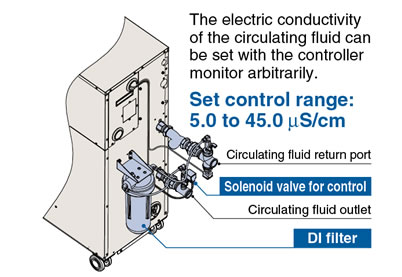

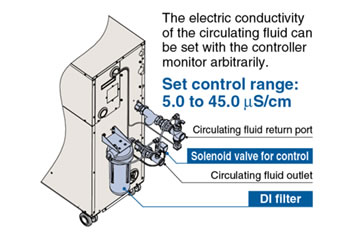

■Electric conductivity control set (With DI filter + Solenoid valve kit for control)

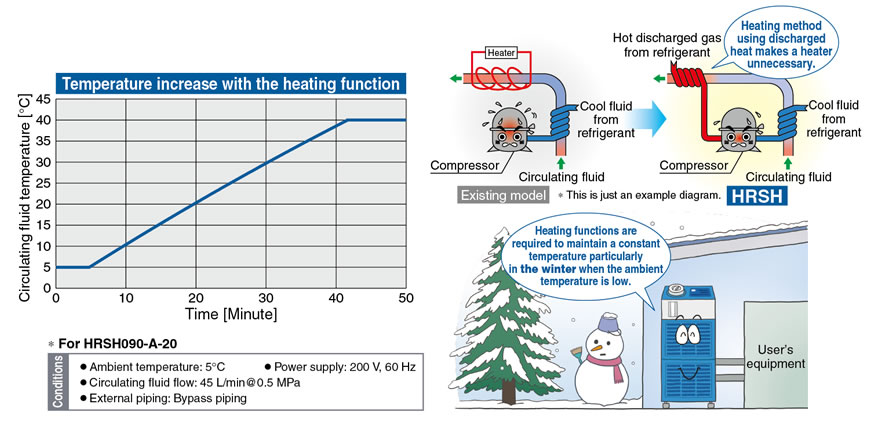

■Circulating fluid can be heated without a heater.

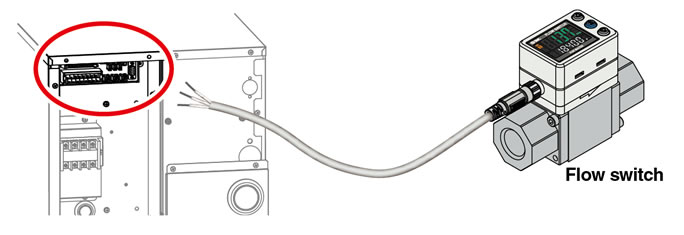

■Power supply(24 VDC) available

Power can be supplied from the terminal block on the rear side to external switches etc.

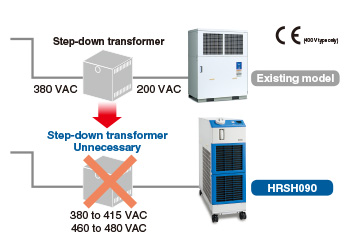

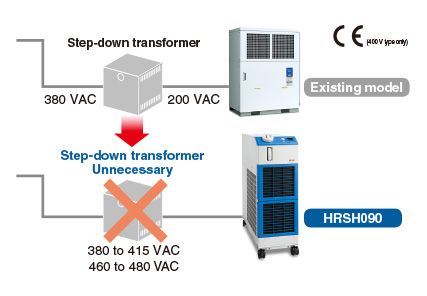

■Globally compatible power supplies

Power supply applicable to 200 to 230 VAC, or 380 to 415 VAC
Transformers are unnecessary even when used overseas.

(Europe, Asia, Oceania, Central and South America)

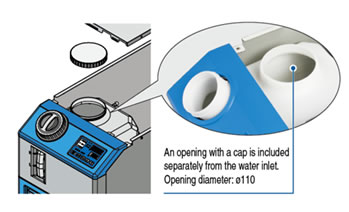

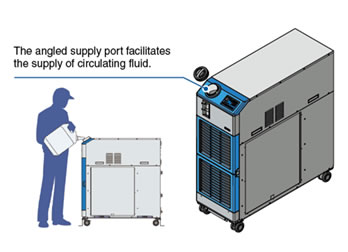

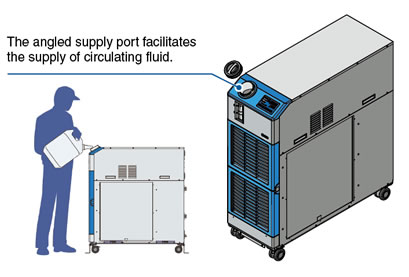

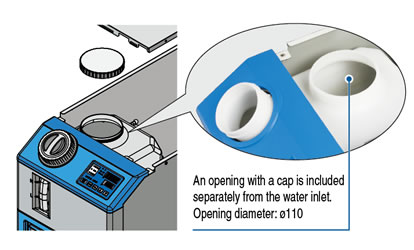

■Shaped for easy supply of circulating fluid





■Easy cleaning of the tank

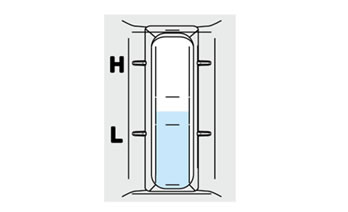

■Easy check of the circulating fluid level

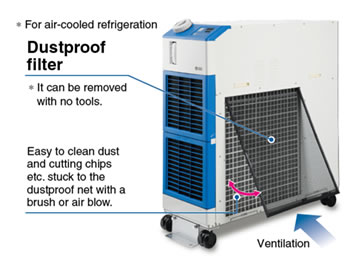

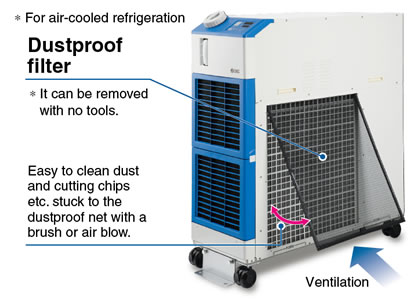

■Tool-less inspection and cleaning of air-cooled condenser

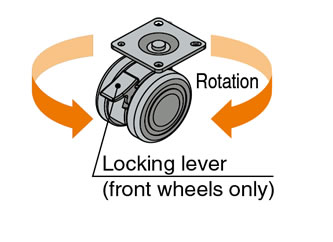

■With unfixed caster

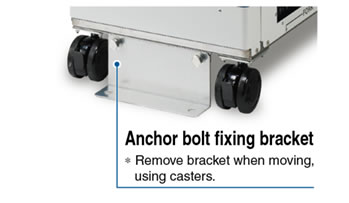

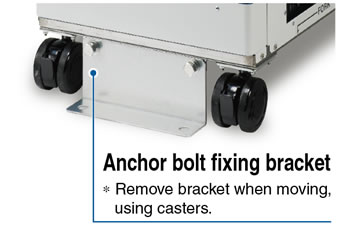

■Anchor bolt fixing bracket

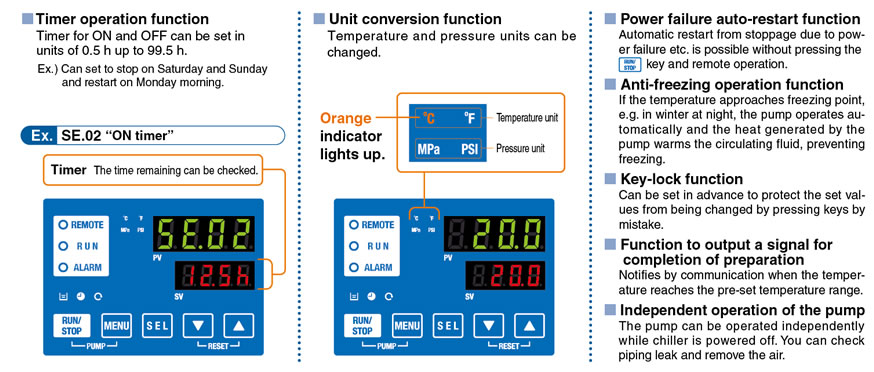

■Convenient Functions

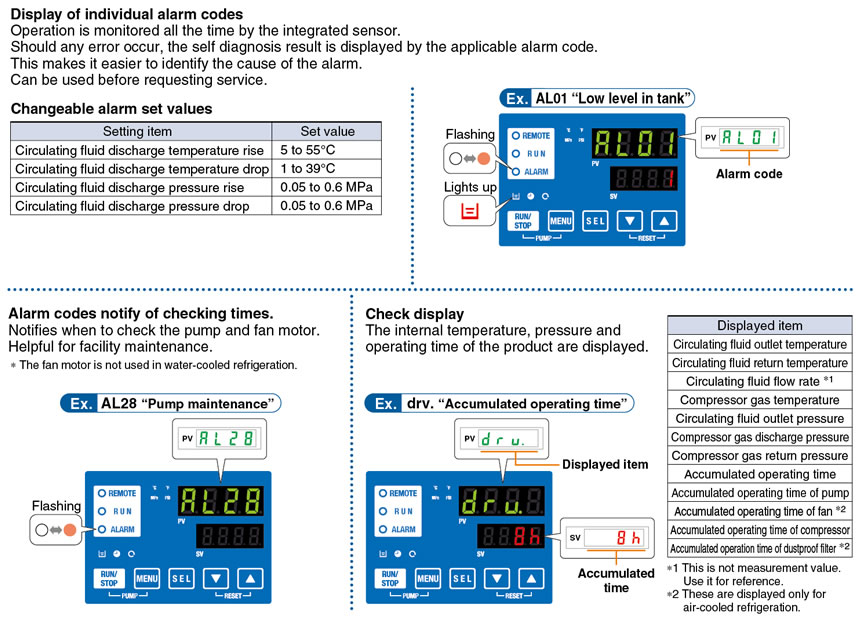

■Self Diagnosis and Check Display

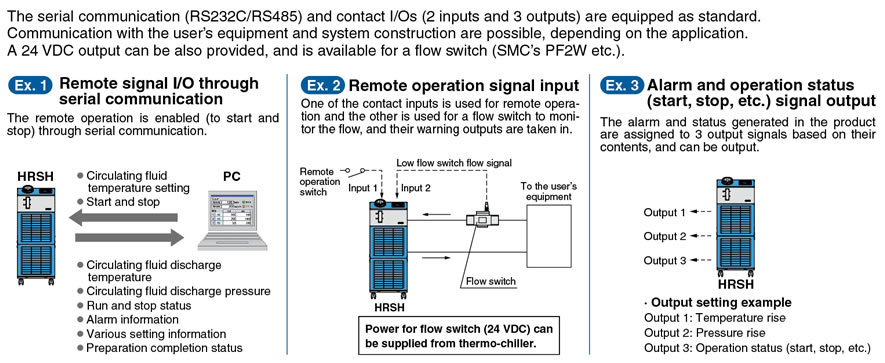

■Communication Function

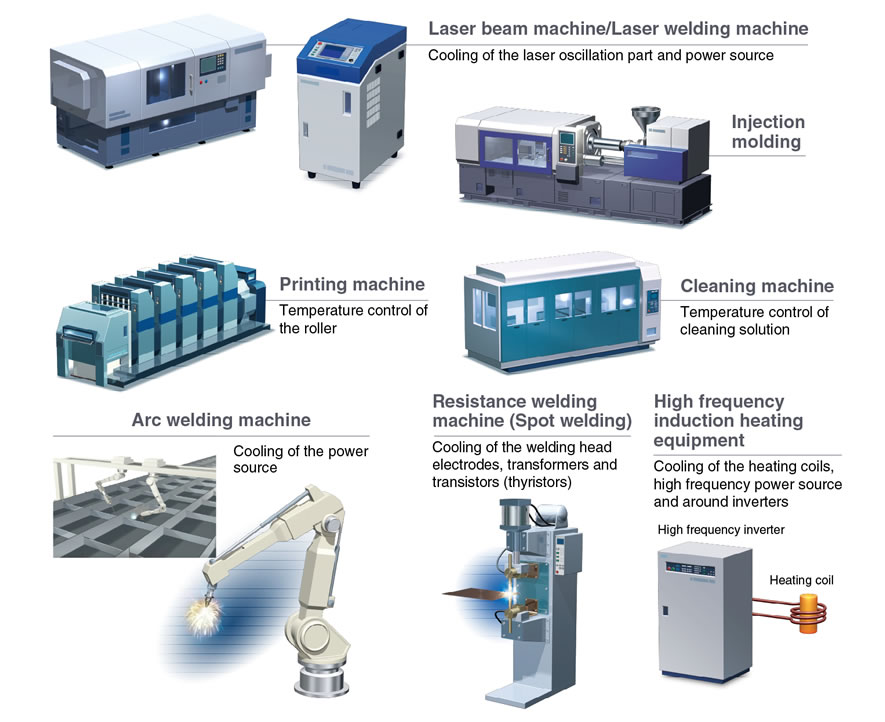

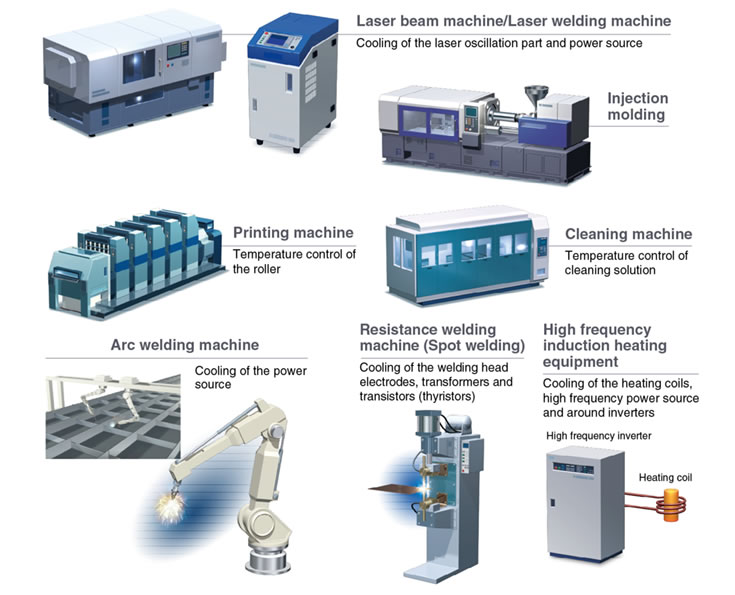

■Applications

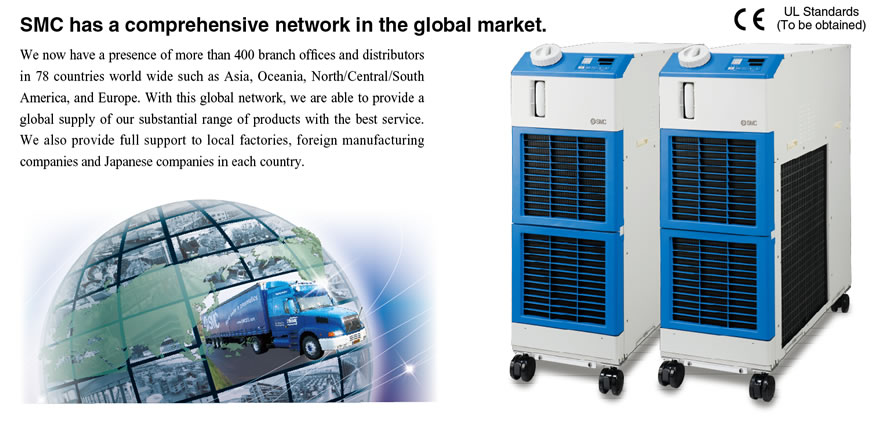

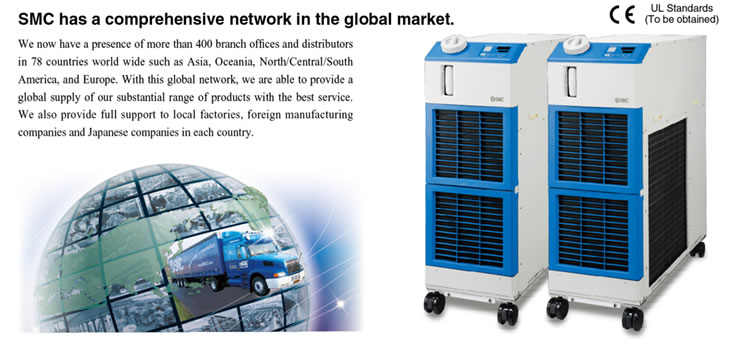

■Global Supply Network

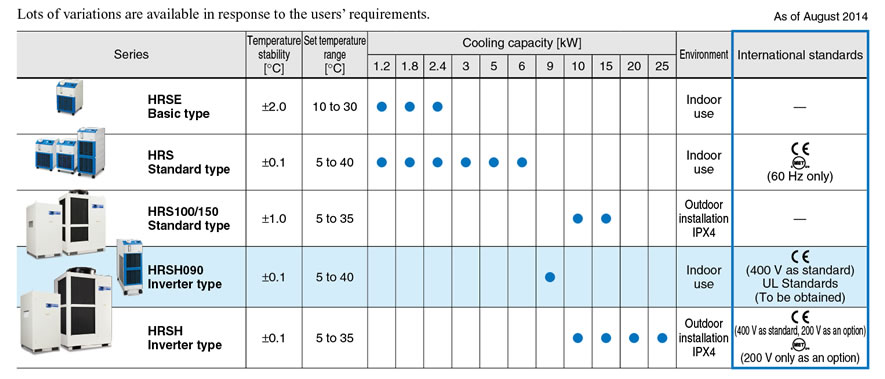

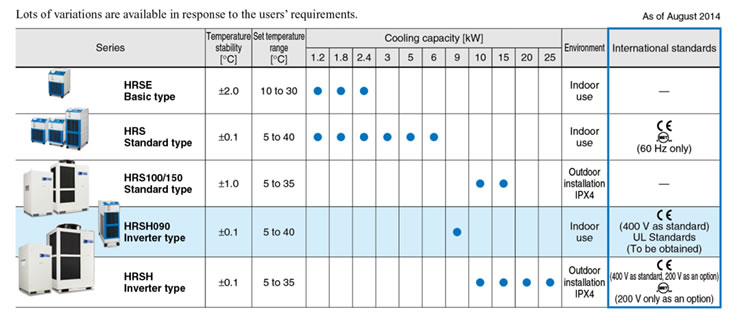

■SMC Thermo-chiller Variations
