WEB Catalog

Product Information ?  WEB Catalog  ? Vacuum Equipment (Vacuum Generators/Vacuum Suction Cups/Other)  ? Vacuum Ejectors

Vacuum Ejectors

Vacuum Pad with Ejector ZHP

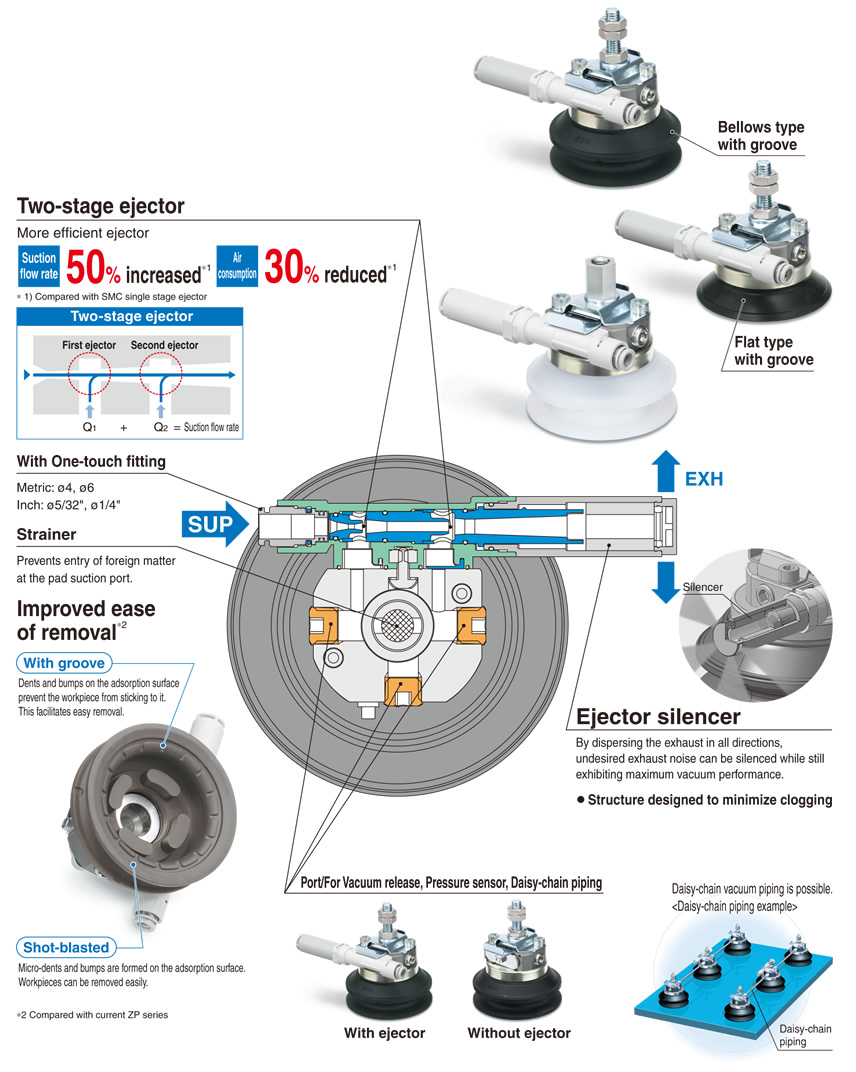

    ?Ejector and pad are integrated. Space saving with reduced piping labor!
    ?2-stage ejector
    　Suction flow rate increased by 50%, Air consumption reduced by 30%

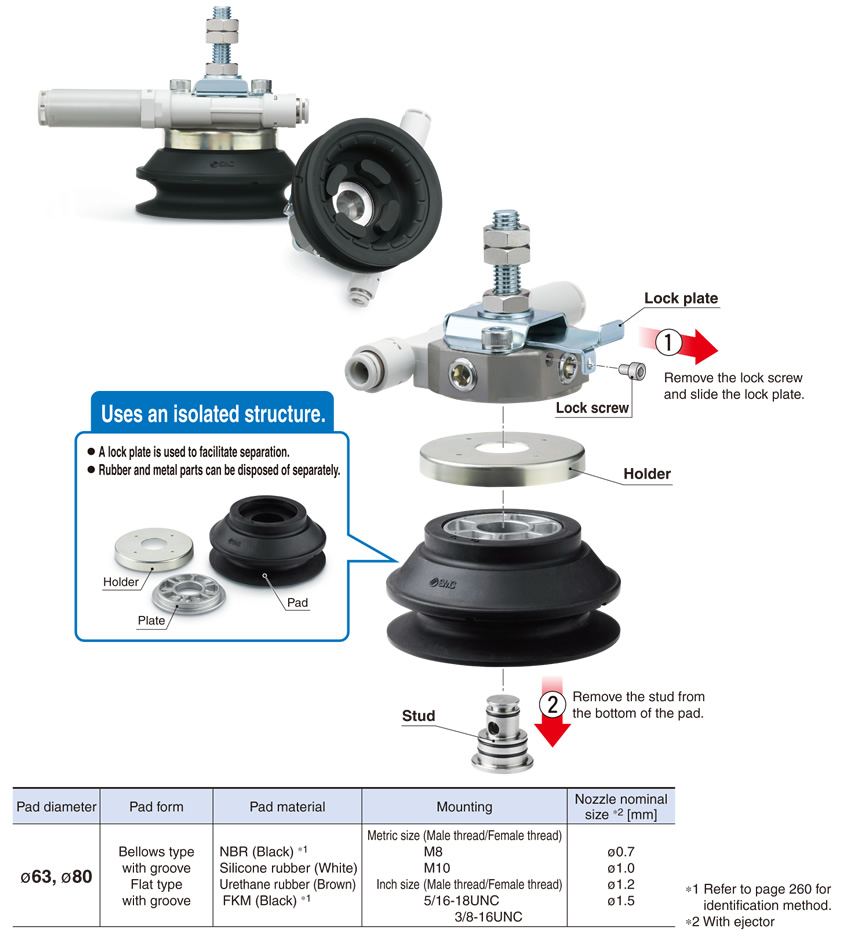

    ?Easier maintenance
    　Mounting with the lock plate reduces the steps required for pad replacement!
    ?Pad diameter: ?63, ?80
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
  • Vacuum Pad with Ejector ZHP
    Manual
    Series View search result
    ZHPView search result
SeriesPad diameterPad formNozzle nominal size
ZHPφ63, φ80Bellows type with groove
Flat type with groove		φ0.7, φ1.0, φ1.2, φ1.5

Features

Ejector and pad are integrated. Space saving and reduced piping labor!

Easier maintenance

Mounting with the lock plate reduces the pad replacement work Steps!

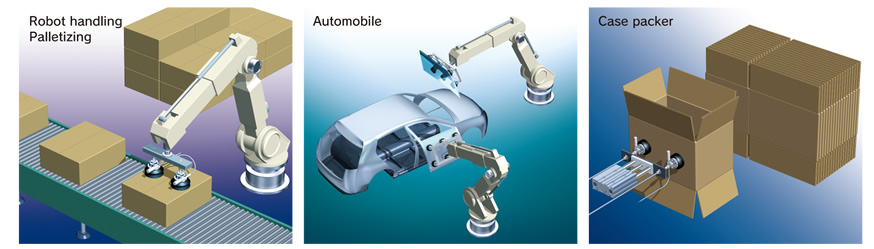

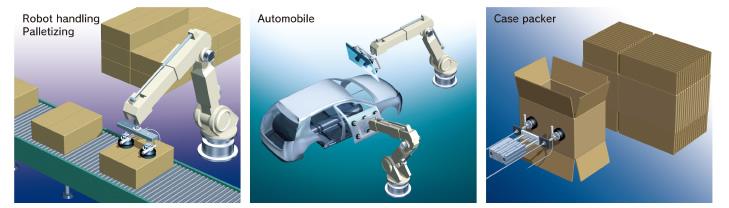

Application Examples
