Standard Air Cylinders (Square Cover）
Air Cylinder CA2/CDA2
-
?Weight reduced by up to 15%
?Easy air cushion control
?Various switches, such as compact auto switches and magnetic field
resistant auto switches, can be mounted.
?Part numbers with a rod end bracket and/or pivot bracket are available.
(It is not necessary to order a bracket for the applicable cylinder
separately.)
?With auto switch (CDA2 series: CDA2, CDA2W, CDA2K, CDA2KW,
CDBA2,CDA2□H, CDA2W□H)
-
2D/3D CAD
The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.
Click here for 2D/3D CAD2D CAD
Click here for 2D CAD Air Cylinder CA2/CDA2
Manual
Type Series Action Bore size (mm) View search result Standard CA2-Z Double acting, Single rod 40, 50, 63, 80, 100 View search result Standard CA2W-Z Double acting, Double rod 40, 50, 63, 80, 100 View search result Non-rotating rod CA2K Double acting, Single rod 40, 50, 63 View search result Non-rotating rod CA2KW Double acting, Double rod 40, 50, 63 View search result With end lock CBA2 Double acting, Single rod 40, 50, 63, 80, 100 View search result Air-hydro CA2□H Double acting, Single rod 40, 50, 63, 80, 100 View search result Air-hydro CA2W□H Double acting, Double rod 40, 50, 63, 80, 100 View search result Air Cylinder CA2/CDA2
Symbol Specifications Download -XA0 to XA30 Simple Specials Change of rod end shape PDF -XC14 Simple Specials Change of trunnion bracket mounting position PDF -XC15 Simple Specials Change of tie-rod length PDF Air Cylinder CA2/CDA2
Symbol Specifications Download -XB5 Made to Order Common Specifications Oversized rod cylinder PDF -XB6 Made to Order Common Specifications Heat resistant cylinder (－10 to 150℃) PDF -XC3 Made to Order Common Specifications Special port location PDF -XC4 Made to Order Common Specifications With heavy duty scraper PDF -XC5 Made to Order Common Specifications Heat resistant cylinder (－10 to 110℃) PDF -XC6 Made to Order Common Specifications Made of stainless steel PDF -XC7 Made to Order Common Specifications Tie-rod cushion valve tie-rod nut etc. made of stainless steel PDF -XC8 Made to Order Common Specifications Adjustable stroke cylinder/Adjustable extension type PDF -XC9 Made to Order Common Specifications Adjustable stroke cylinder/Adjustable retraction type PDF -XC10 Made to Order Common Specifications Dual stroke cylinder/Double rod type PDF -XC11 Made to Order Common Specifications Dual stroke cylinder/Single rod type PDF -XC12 Made to Order Common Specifications Tandem cylinder PDF -XC22 Made to Order Common Specifications Fluororubber seals PDF -XC26 Made to Order Common Specifications With split pins for double clevis pin/double knuckle joint pin and flat washers PDF -XC27 Made to Order Common Specifications Double clevis and double knuckle joint pins made of stainless steel PDF -XC28 Made to Order Common Specifications Compact flange made of SS400 PDF -XC29 Made to Order Common Specifications Double knuckle joint with spring pin PDF -XC30 Made to Order Common Specifications Rod side trunnion PDF -XC35 Made to Order Common Specifications With coil scraper PDF -XC68 Made to Order Common Specifications Made of stainless steel (with hard chrome plated piston rod) PDF -XC85 Made to Order Common Specifications Grease for food processing equipment PDF -XC88 Made to Order Common Specifications Spatter resistant coil scraper Lube-retainer Grease for welding (Piston rod: Stainless steel 304) PDF -XC89 Made to Order Common Specifications Spatter resistant coil scraper Lube-retainer Grease for welding (Piston rod: S45C) PDF -XC91 Made to Order Common Specifications Spatter resistant coil scraper Grease for welding (Piston rod: S45C) PDF
Safety Instructions Actuators/Precautions Auto Switches/Precautions
Model Selection/Technical Data Quick Selection Table
Simple Specials Made to Order Common Specifications Green Procurement (RoHS)
Model Selection/Technical Data Quick Selection Table
Simple Specials Made to Order Common Specifications Green Procurement (RoHS)
| Type | Series | Action | Bore size (mm) |
|---|---|---|---|
| Standard | CA2-Z | Double acting, Single rod | 40, 50, 63, 80, 100 |
| Standard | CA2W-Z | Double acting, Double rod | 40, 50, 63, 80, 100 |
| Non-rotating rod | CA2K | Double acting, Single rod | 40, 50, 63 |
| Non-rotating rod | CA2KW | Double acting, Double rod | 40, 50, 63 |
| With end lock | CBA2 | Double acting, Single rod | 40, 50, 63, 80, 100 |
| Air-hydro | CA2□H | Double acting, Single rod | 40, 50, 63, 80, 100 |
| Air-hydro | CA2W□H | Double acting, Double rod | 40, 50, 63, 80, 100 |
Features

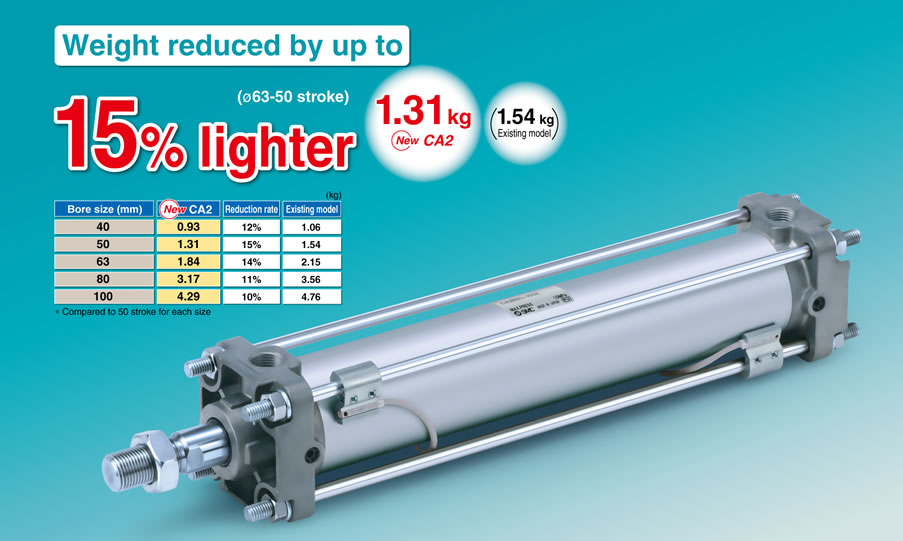

Reduced weight by changing the shape of the rod cover and head cover.
Weight reduced by up to 15% lighter（?63-50 stroke）
1.31 kg（New）←1.54 kg（Existing model）

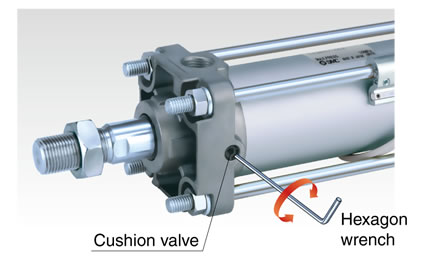

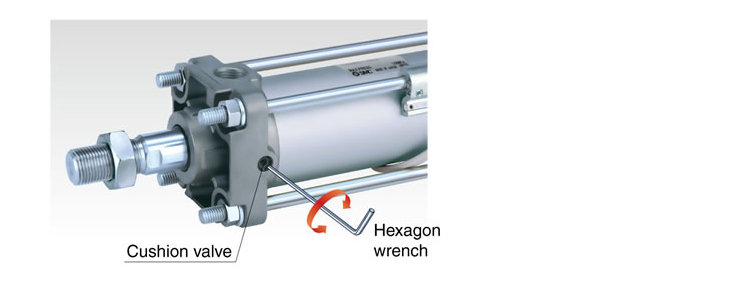

Easy air cushion control
Number of cushion valve adjustment rotations increased from 1 rotation to 3 rotations. (1.5 rotations for bore size ?40)
Fine adjustment becomes easy, ensuring smooth operation at the stroke end.

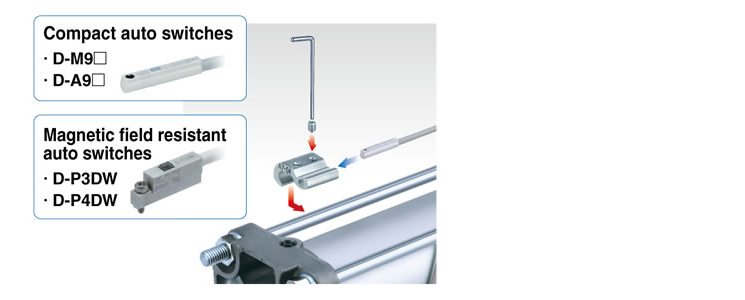

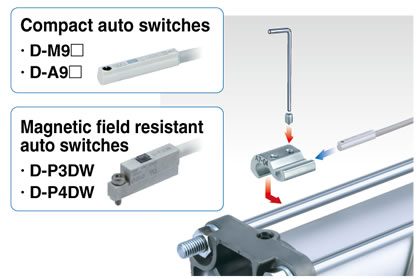

Various switches such as compact auto switches and magnetic field resistant auto switches can be mounted.
Made to Order set additionally
?Heat resistant cylinder（-XB6）?With heavy duty scraper（-XC4）
?Adjustable stroke cylinder（-XC8, 9）?Dual stroke cylinder（-XC10, 11） etc. are added.

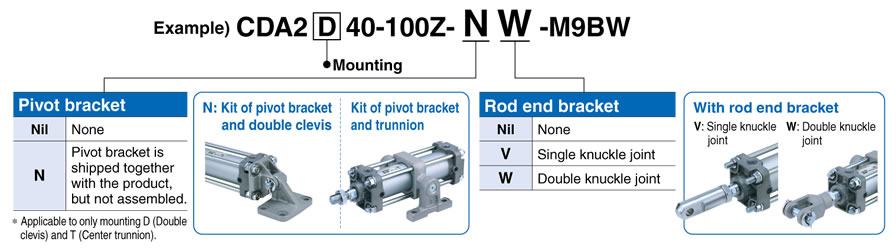

Part numbers with rod end bracket and/or pivot bracket available
Not necessary to order a bracket for the applicable cylinder separately
Note) Mounting bracket is shipped together with the product, but not assembled.

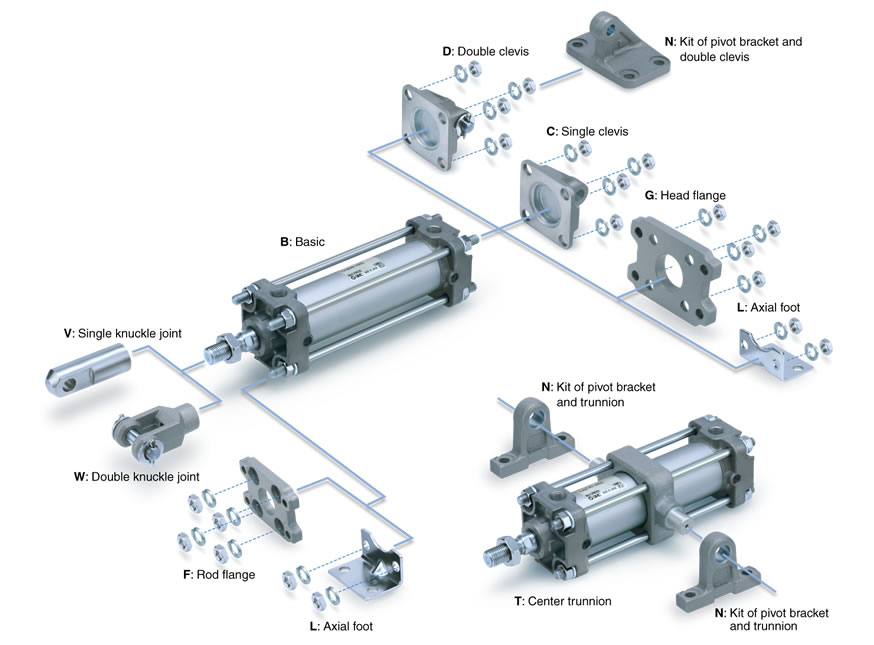

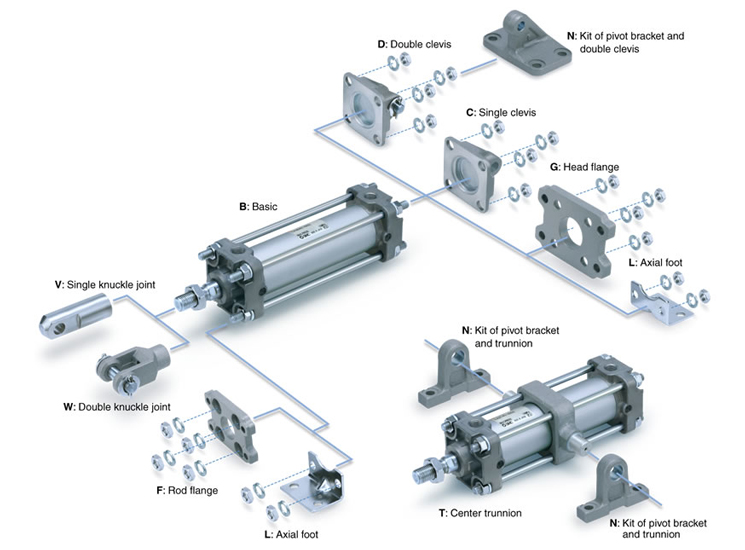

Various mounting bracket options
?Suitable mounting brackets can be selected for the installation condition.
?Improved amount of mounting freedom

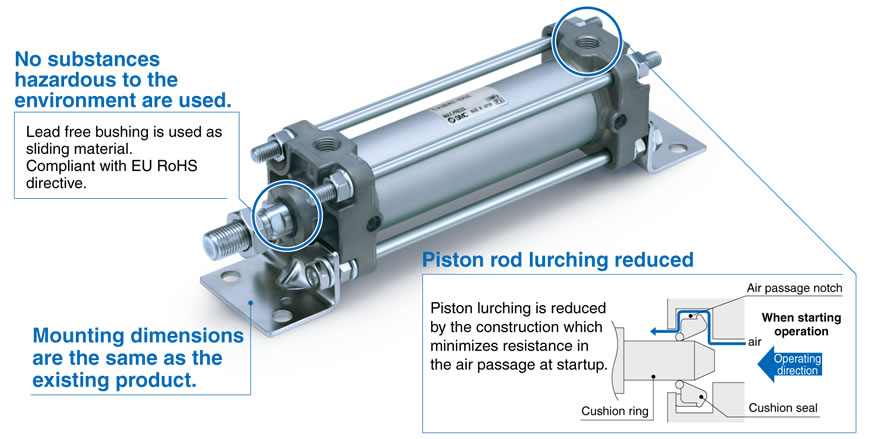

Other Features

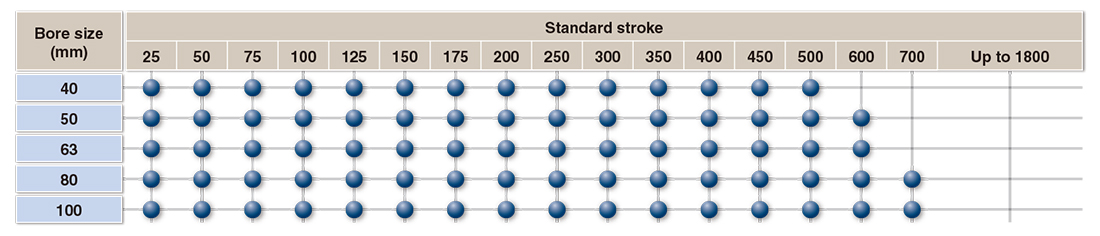

Stroke Variations

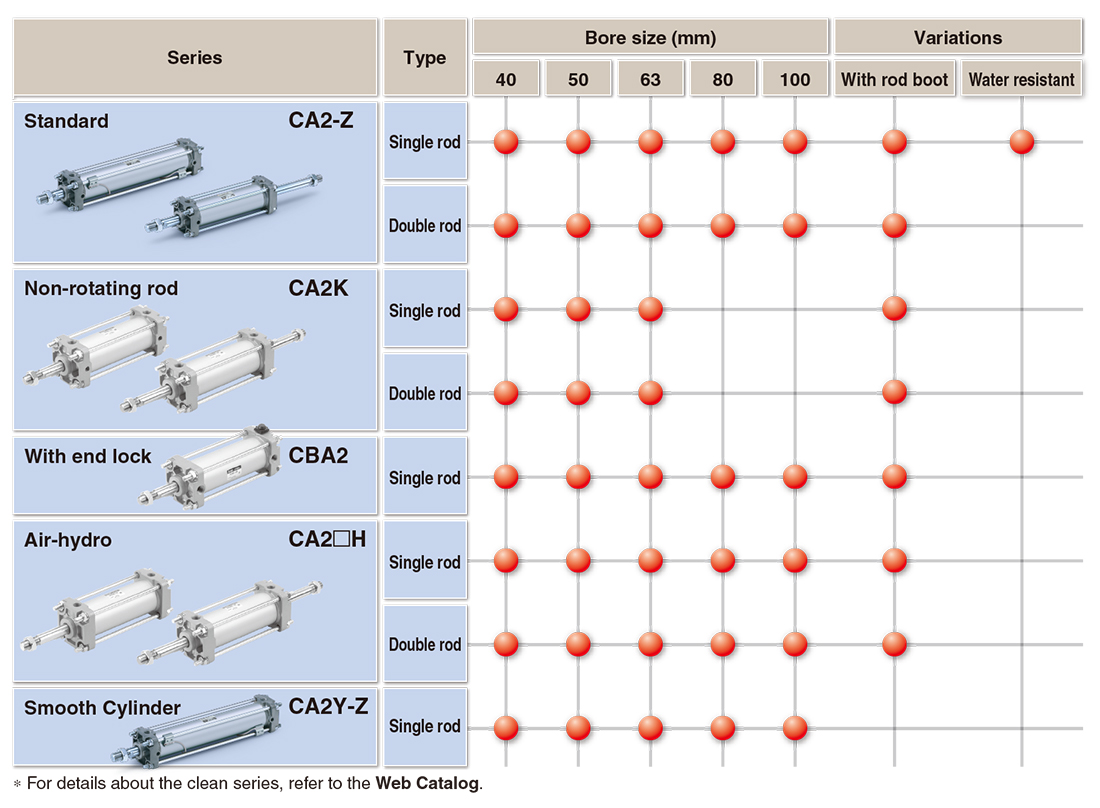

Series Variations
? For details about the clean series, refer to the WEB catalog.
