WEB Catalog

Product Information ?  WEB Catalog  ? Directional Control Valves  ? Blow Guns

Blow Guns

Air Saving Impact Blow Gun IBG

    ?Various functions
    　Pulse function [New]
    　Adjuster function with indicator
    ?Increased impact force due to higher peak pressure
    　Drastic reduction in air consumption and labor time
    ?Application: It is capable of eliminating, in a short period of time,
    　the dust, etc., that is difficult to remove with the existing blow gun.
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
  • Air Saving Impact Blow Gun IBG
    Manual
    Series View search result
    IBG1
    High Peak
    Pressure Type    		View search result
    IBG2
    Compact Type    		View search result

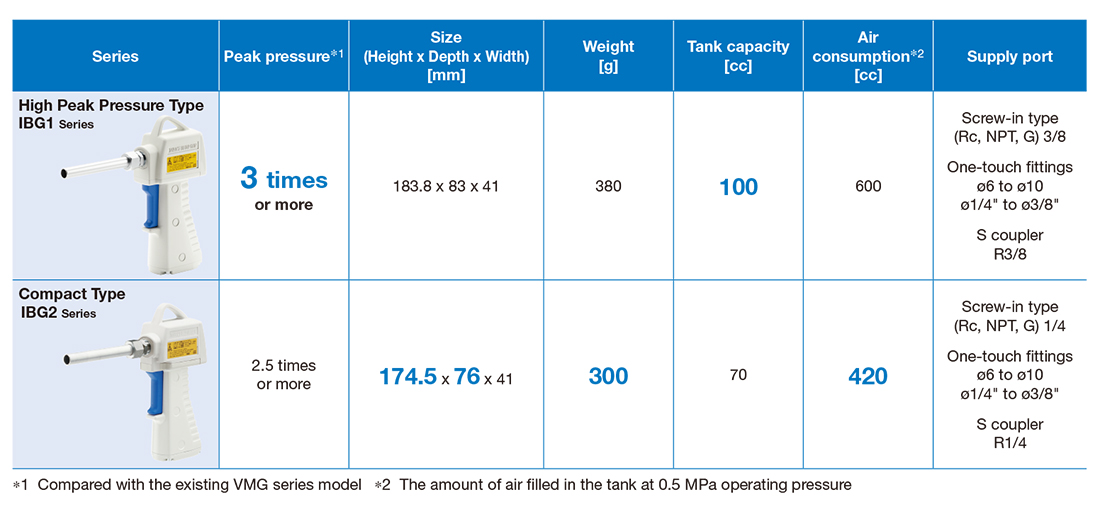

SeriesPeak pressure?1Size (Height x
Depth x Width)
[mm]		Weight
[g]		Tank capacity
[cc]		Air
consumption?2
[cc]		Supply port
IBG1
High Peak
Pressure Type		3 times
or more		183.8 × 83 × 41380100600Screw-in type
(Rc, NPT, G) 3/8
One-touch fittings
?6 to ?10
?1/4" to ?3/8"
S coupler
R3/8
IBG2
Compact Type		2.5 times
or more		174.5 × 76 × 4130070420Screw-in type
(Rc, NPT, G) 1/4
One-touch fittings
?6 to ?10
?1/4" to ?3/8"
S coupler
R1/4
?1 Compared
with the existing
VMG series model		?2 The amount of
air filled in the
tank at 0.5 MPa
operating pressure

Features

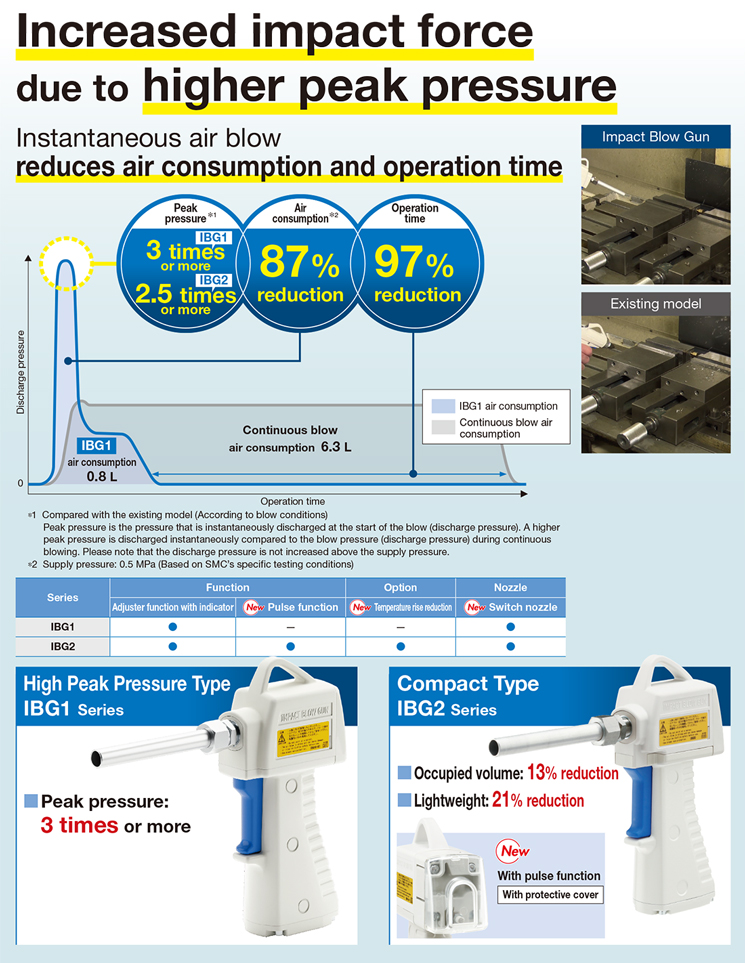

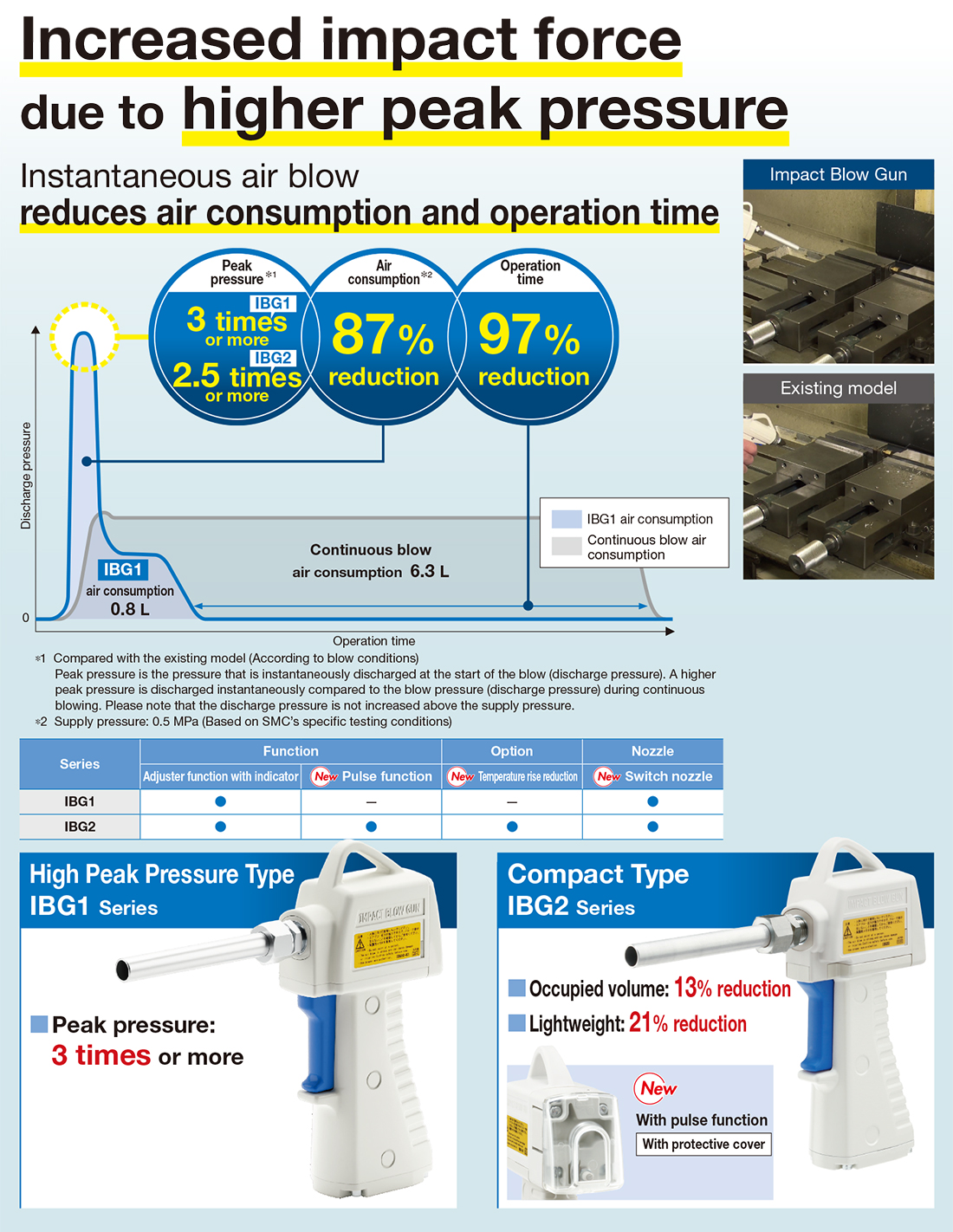

Increased impact force due to higher peak pressure


Videos can be viewedhere

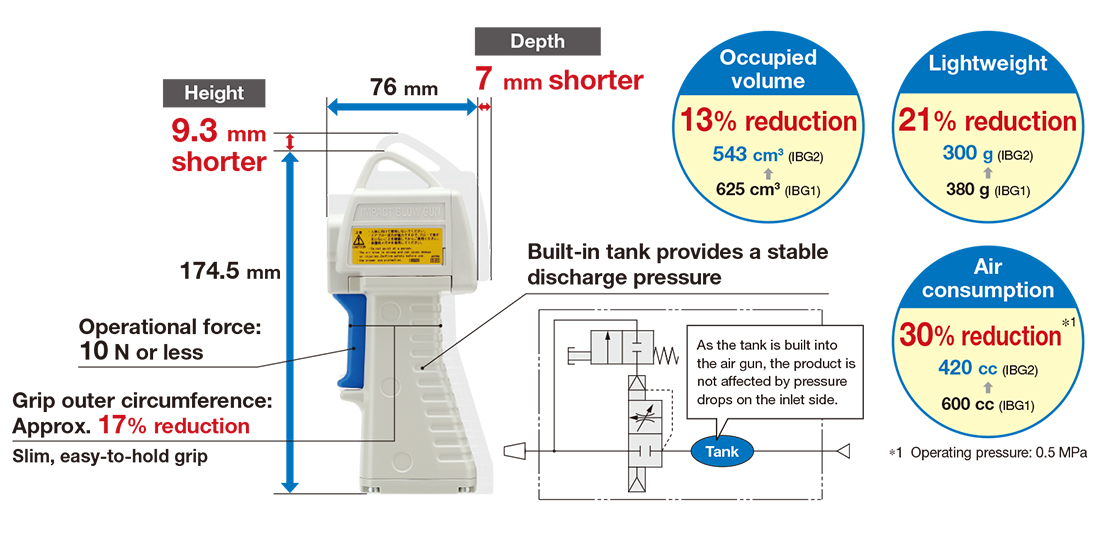

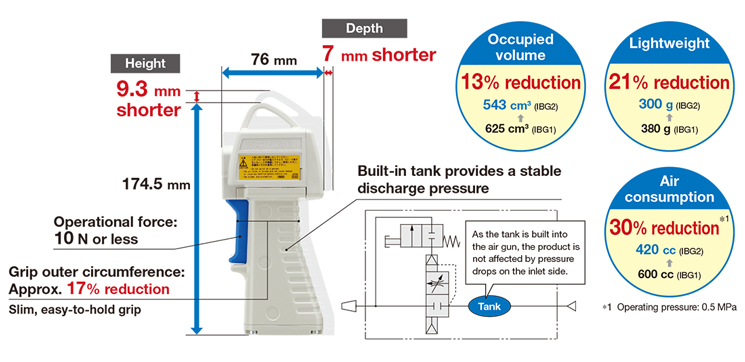

A compact type has been added. [New]

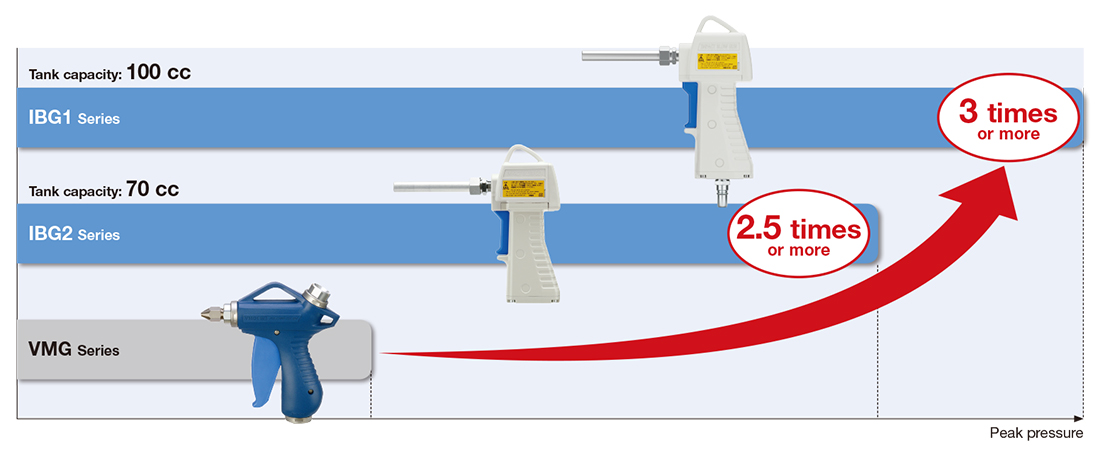

Peak pressure comparison

Variations

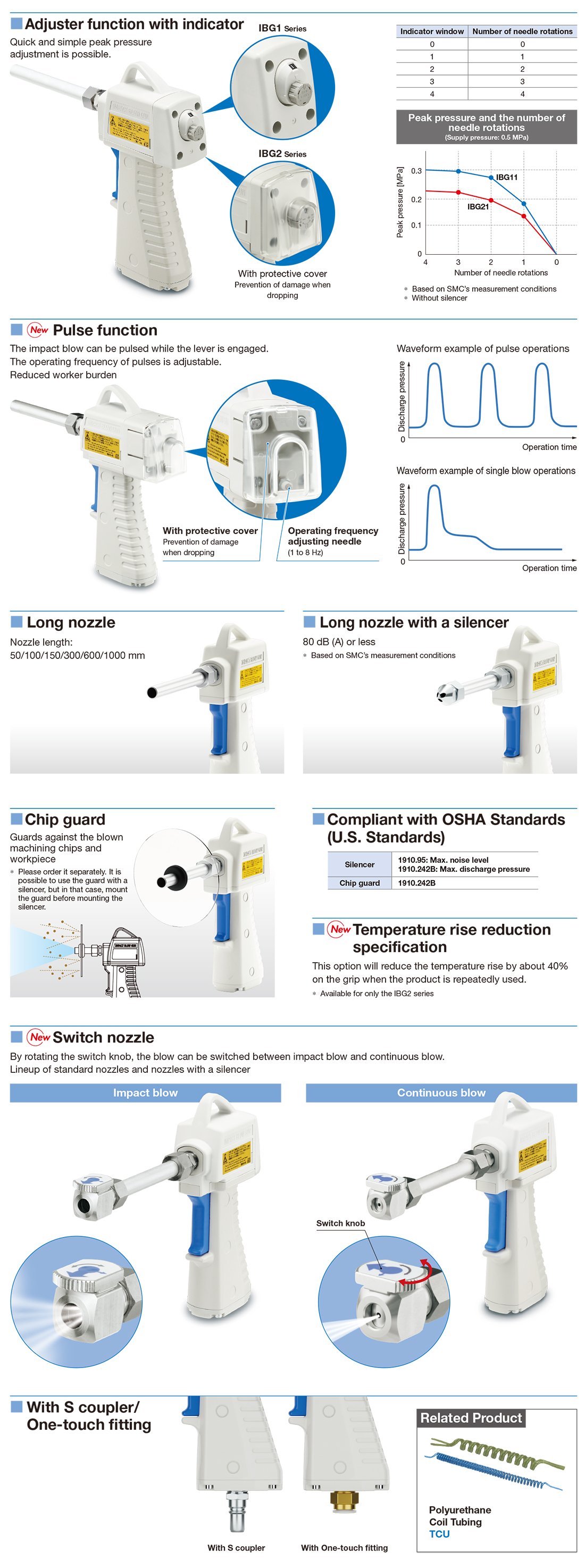

Various Functions

Click here for details on the related product TCU.

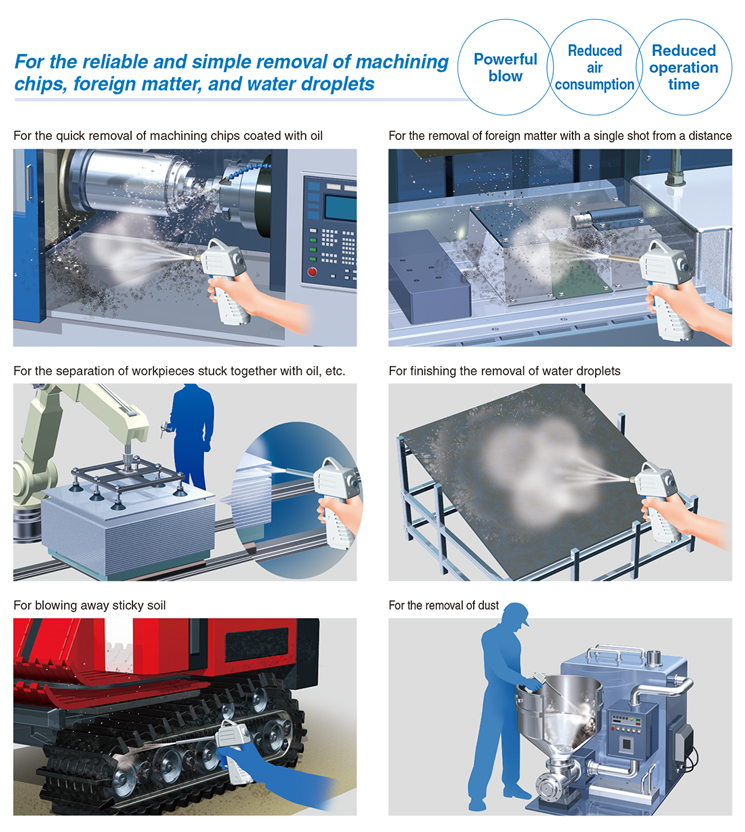

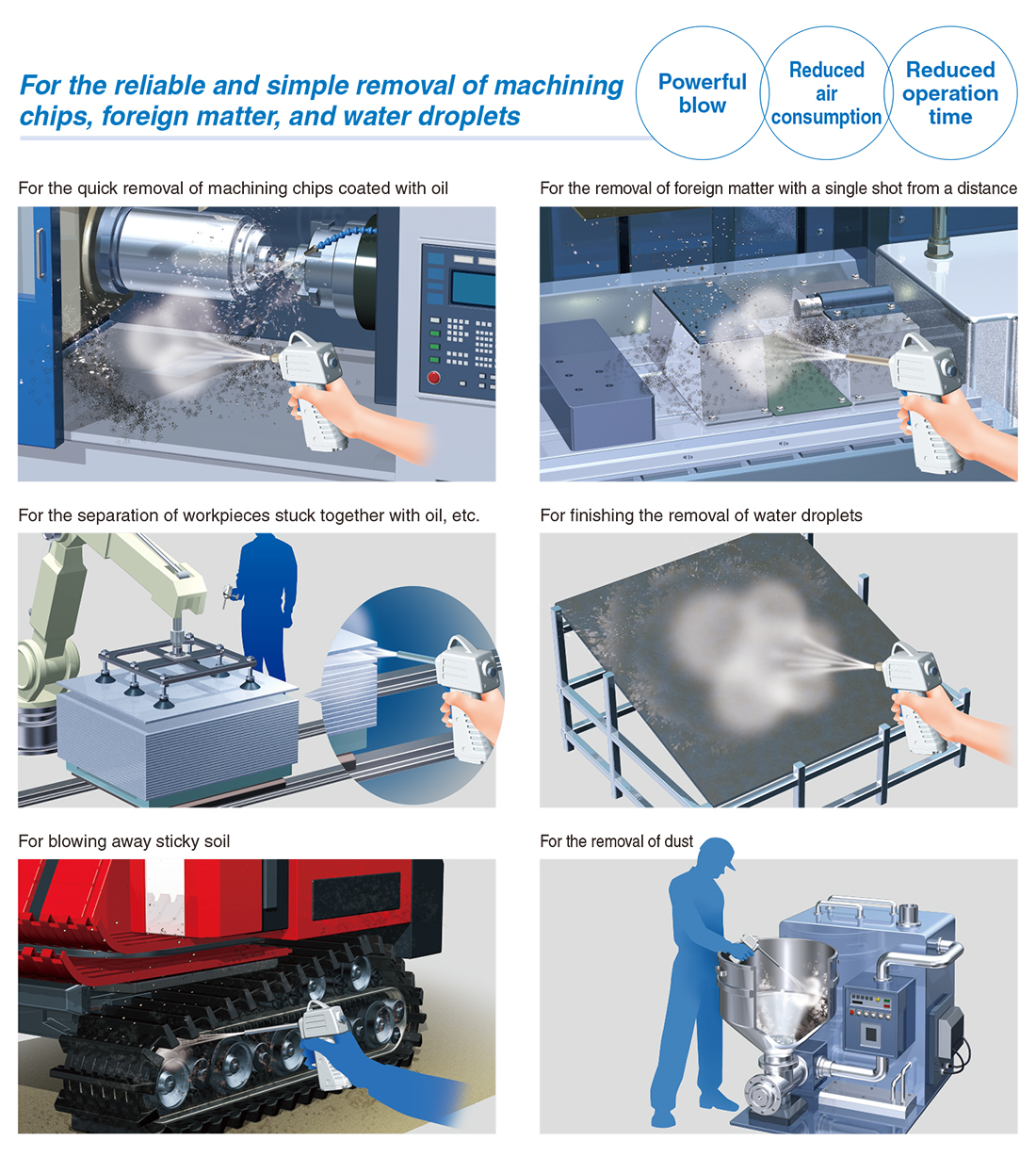

Application Examples
