Standard Air Cylinders (Round Type）
Air Cylinder Short Type CG3/CDG3
-

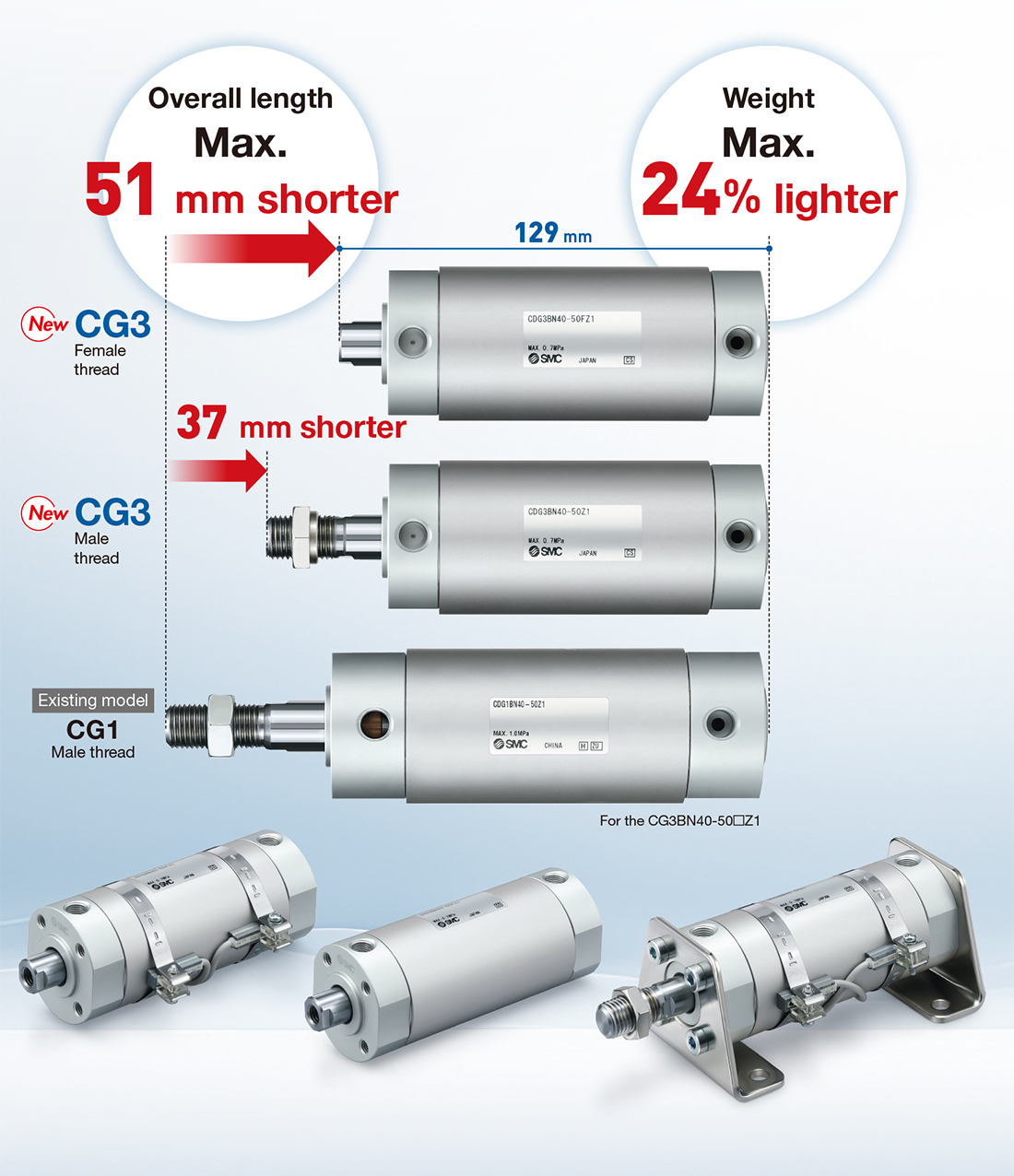

?Overall length: Max. 51 mm shorter, Weight: Max. 24% lighter
(Comparison with CG1)
?With auto switch (CDG3 Series: CDG3)
-
2D/3D CAD
The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.
Click here for 2D/3D CAD

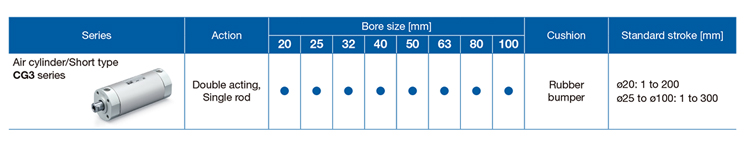

| Type | Series | Action | Bore size (mm) |
|---|---|---|---|
| Standard | CG3-Z1 | Double acting, Single rod | 20，25，32，40，50，63，80，100 |
Features
Overall length Max. 51 mm shorter, Weight Max. 24% lighter

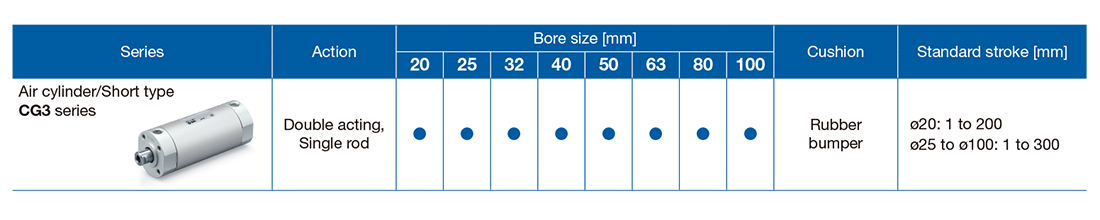

Series Variations
