Environment Resistant Cylinders

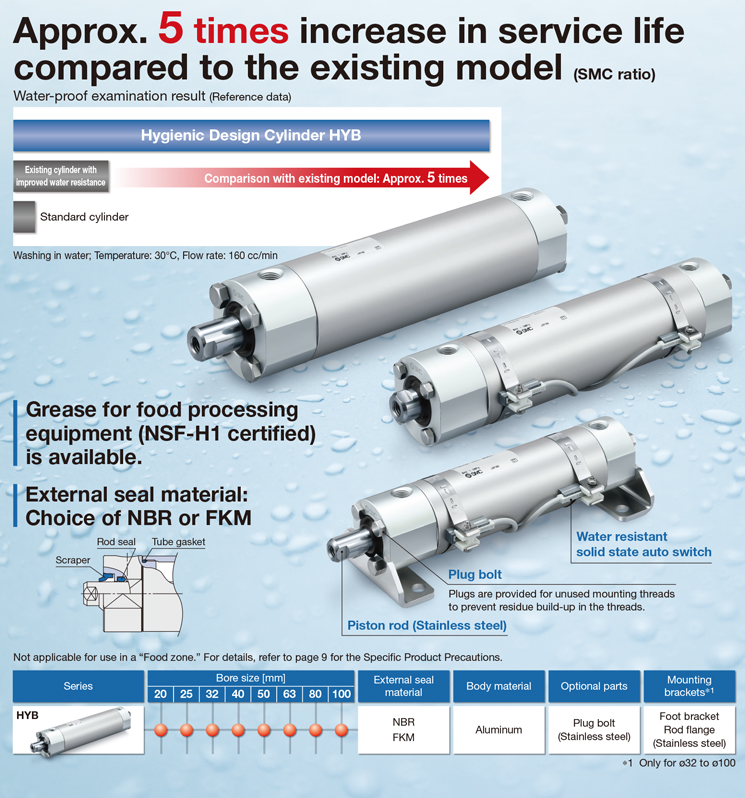

Hygienic Design Cylinder HYB/HDYB
-
?A water resistant cylinder configured for easy cleaning
?Approx. 5 times increase in service life compared to the existing model
(SMC ratio)
?Grease for food processing equipment (NSF-H1 certified) is available.
?External seal material: Choice of NBR or FKM
-
2D/3D CAD
The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.
Click here for 2D/3D CAD
| Type | Series | Action | Bore size (mm) |
|---|---|---|---|
| Basic | HYB | Double acting, Single rod | 20，25，32，40，50， 63，80，100 |
Features
A water resistant cylinder configured for easy cleaning
